30x30x4mm 220V AC Cooling Fan
This compact AC cooling fan operates at 220V and measures 30x30x4mm. It is designed for efficient heat dissipation in electronic devices and industrial equipment.
Technical Specifications
Product Overview
High-Efficiency Compact Cooling
This 30x30x4mm AC cooling fan is engineered for localized heat dissipation in space-constrained electronic and industrial applications. Featuring a durable die-cast aluminum housing and glass fiber reinforced plastic impellers, it offers a robust solution for maintaining optimal operating temperatures. Its versatile design supports both leader wire and terminal connections, making it an ideal choice for power supplies, compressors, and small enclosures.
Technical Performance
Electrical Specifications
220 V
Rated Voltage
500 MΩ
Insulation Impedance
2,200 V/S
Resist Strength
Construction & Materials
- Housing Material
- Die-cast aluminum
- Impeller Material
- Glass fiber reinforced plastic (UL 94V-0 rated)
- Coil Construction
- High-temperature pure copper line
Dimensions & Installation

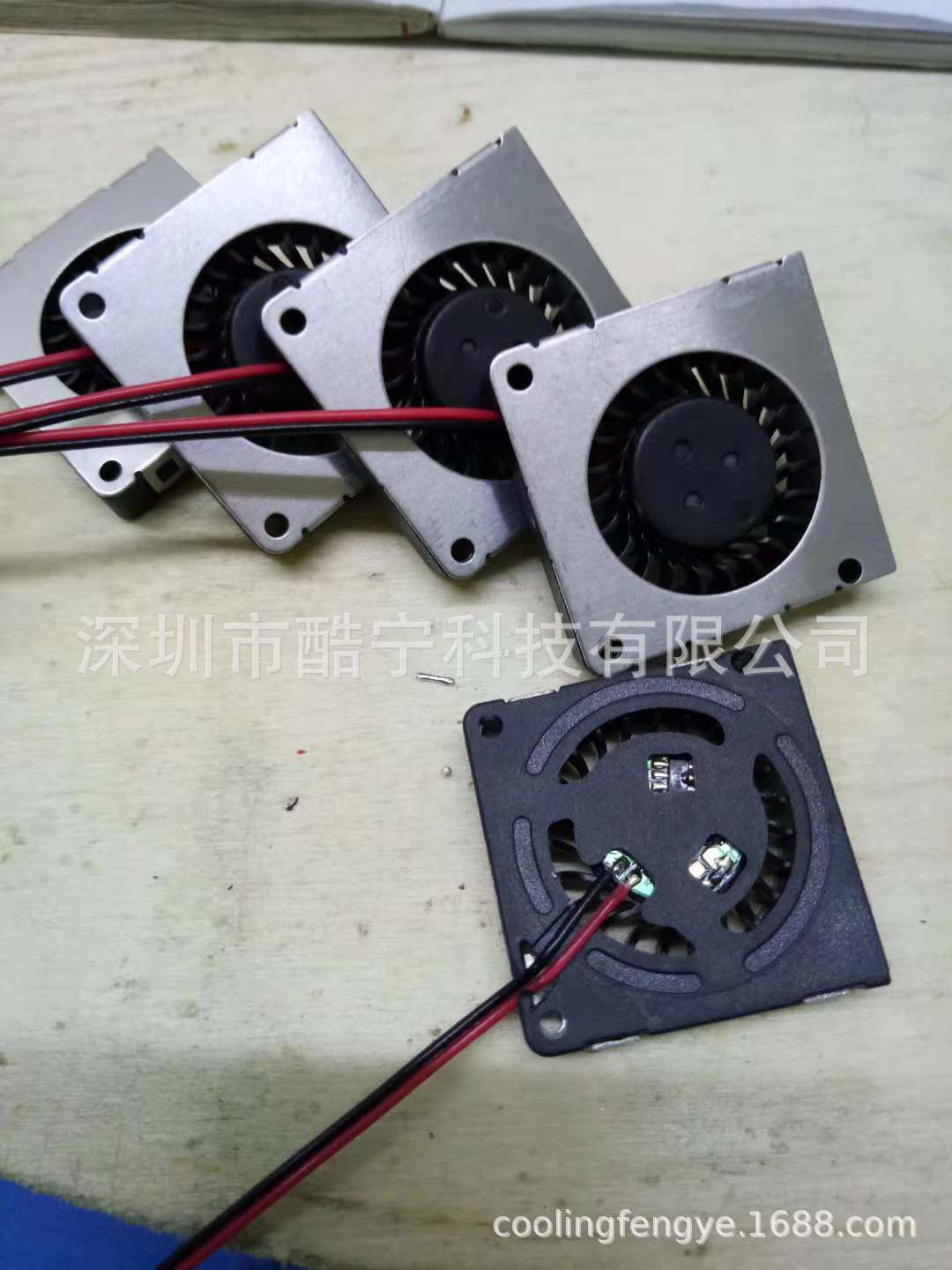

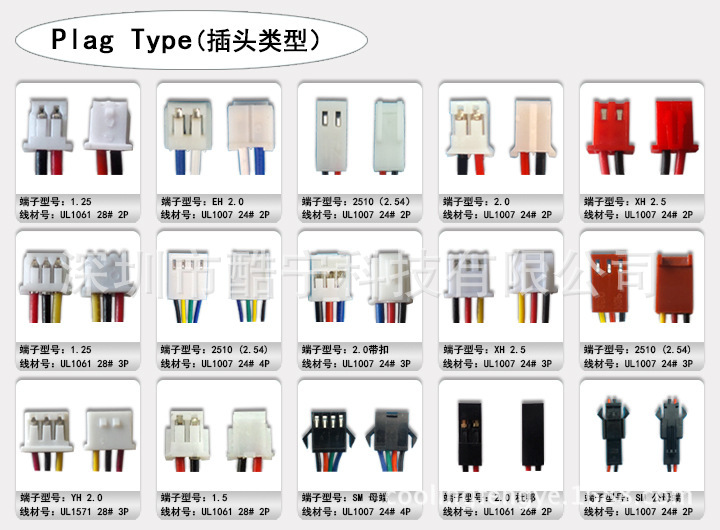

Connection Options
- Leader wire
- Terminal interface
- Dimensions
- 30mm x 30mm x 4mm

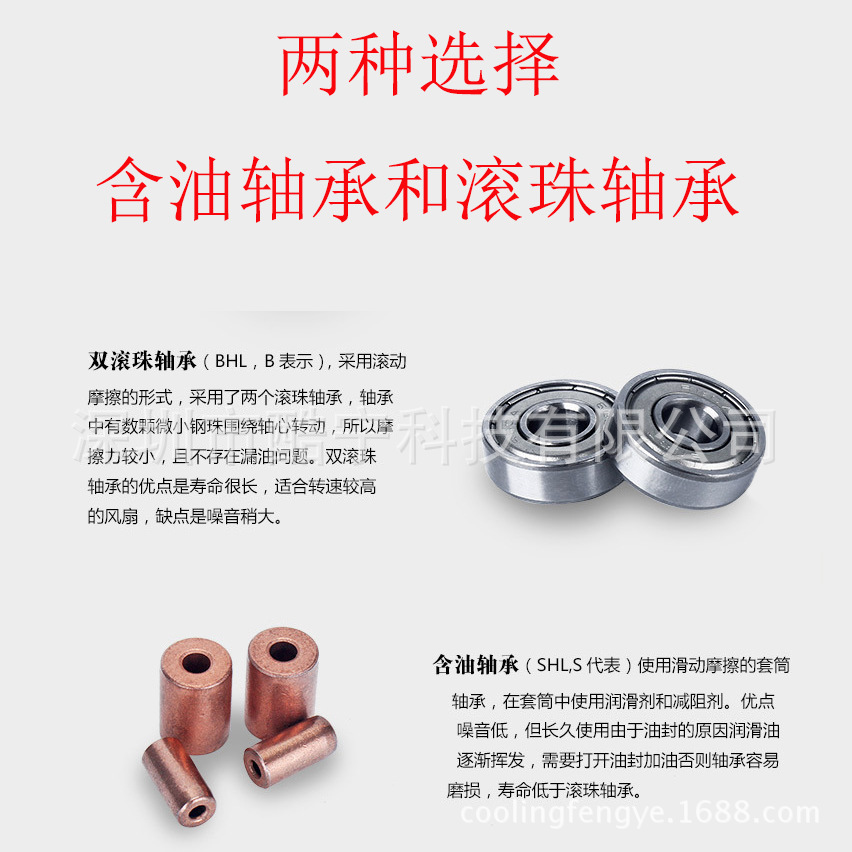

Bearing Options
Available Bearing Systems
| Bearing Type | Characteristics | Warranty |
|---|---|---|
| Ball Bearing | Long lifespan, high speed, low friction, no leakage | 2 Years |
| Sleeve (Oil) Bearing | Low noise, sliding friction, cost-effective | 1 Year |
Operational Safety
Usage Precautions
- Do not exceed 80°C operating environment to avoid deformation
- Avoid dust, water droplets, and insect entry
- Do not use in flammable or harmful gas environments
- Ensure screws are not tightened beyond 4Kgf torque
- Avoid locking the fan while powered to prevent burn-out
Compliance
- Certifications
- CEFCRoHSUL 94V-0
