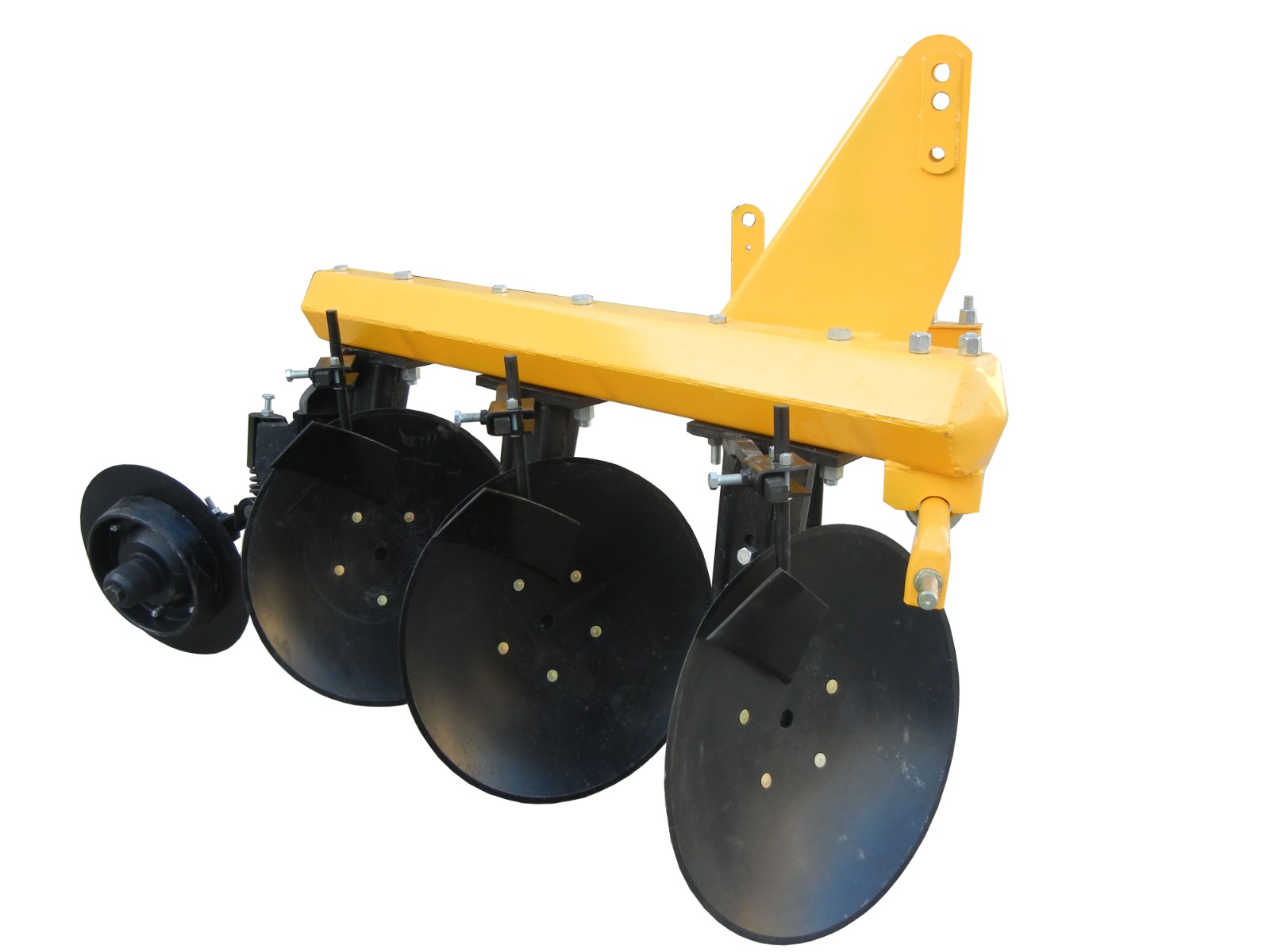

3-Disc Plough for Soil Preparation
This 3-disc plough prevents grass winding, blocking, and hip building. Its adjustable angle makes cutting off crop stalks easy.
Technical Specifications
Product Overview
High-Performance Soil Preparation
The 1LY series disc plough is a fully-suspended implement designed for efficient soil cultivation with four-wheel tractors. Its robust design features rotary motion discs that effectively cut, turn, and break up soil, making it ideal for fields containing weeds, crop stalks, and challenging frictional soil. The implement is engineered to prevent clogging and grass winding, ensuring smooth operation and consistent performance.
Key Features
- Operational Benefits
- Tractor MountedAnti-Clogging DesignAdjustable Disc AngleCrop Stalk CuttingThree-Point Suspension
Technical Specifications
Model Specifications
| Model | Working Width (mm) | No. of Discs | Weight (kg) | Matched Power (hp) |
|---|---|---|---|---|
| 1LY-2 | 600 | 2 | 350 | 40 |
| 1LY-3 | 900 | 3 | 400 | 60 |
| 1LY-4 | 1,200 | 4 | 470 | 80 |
| 1LY-5 | 1,500 | 5 | 560 | 120 |
Working Depth
250 mm
Min Depth
300 mm
Max Depth
- Linkage Type
- Three-point suspension II type
