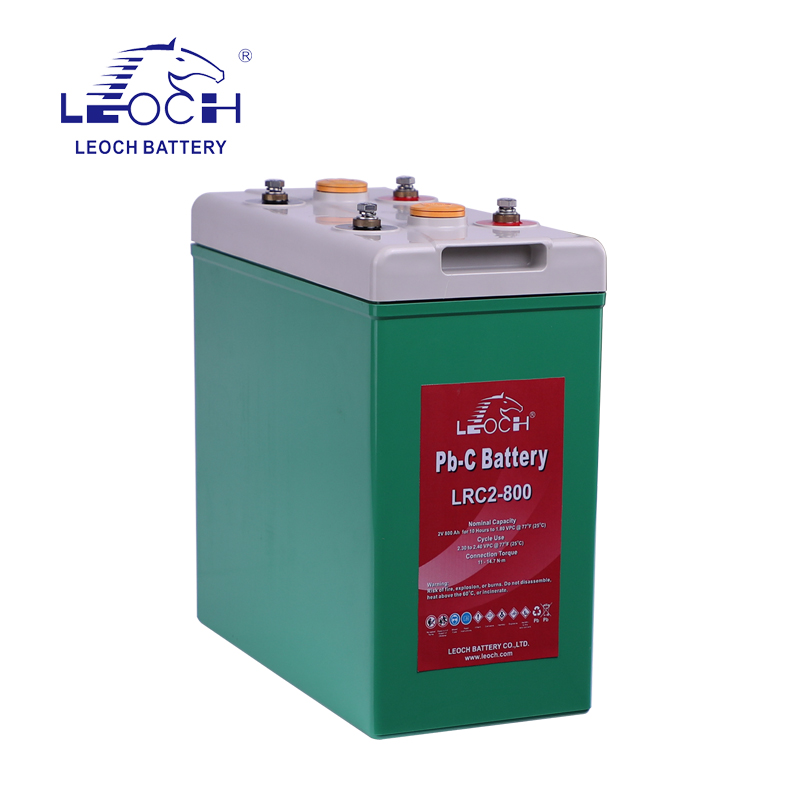

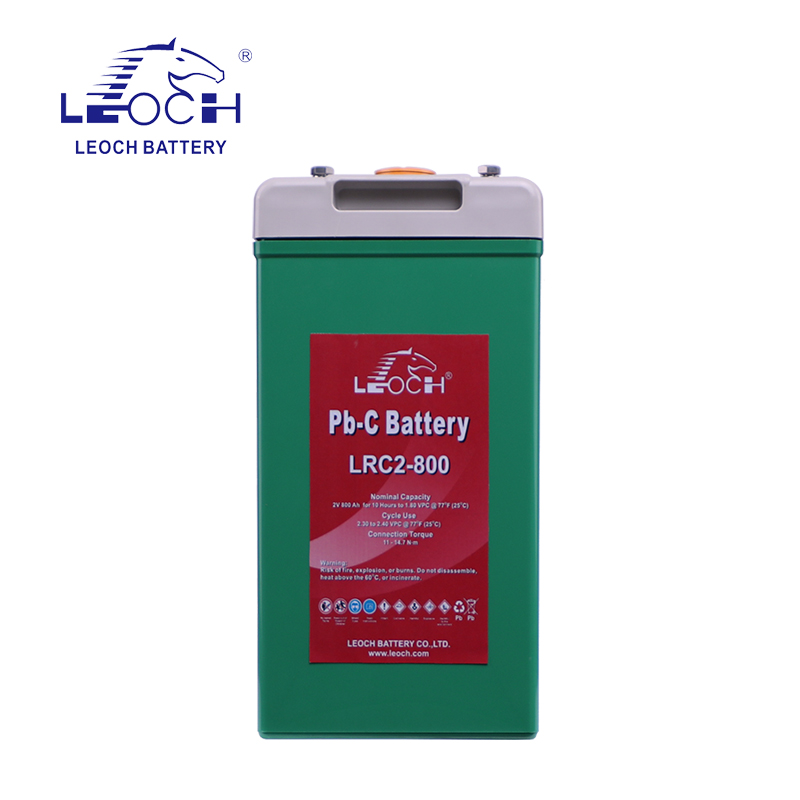

2V 800Ah Lead Carbon Battery for Energy Storage
This lead-carbon battery is designed for energy storage applications. It features a nominal capacity of 800Ah at 2V when discharged over 10 hours to 1.80 VPC at 77°F (25°C).
Technical Specifications
Overview
High-Performance Energy Storage
This 2V 800Ah lead-carbon battery is engineered for demanding energy storage applications, leveraging advanced carbon technology for deep cycle performance. It offers an exceptional 15-year design life and is capable of over 4000 cycles at 60% Depth of Discharge (DOD). Designed for rapid charging and large discharge performance, it is an ideal solution for renewable energy systems and grid stabilization.
Key Metrics
Nominal Capacity
2 V
Voltage
800 Ah
Capacity
- Cycle Life
- 4000 cycles
- Design Life
- 15 years
Technical Specifications
Operating Parameters
| Parameter | Value/Range |
|---|---|
| Discharge Condition | 10 Hours to 1.80 VPC at 25°C |
| Cycle Use Voltage | 2.30 - 2.45 VPC at 25°C |
| Connection Torque | 11 - 14.7 Nm |
Applications
Primary Applications
- Solar and Wind Energy Storage
- Peak Load Shifting
- Load Tracking
- Smart Grid and Micro-grid Systems
- Mobile Container Storage
Safety
- Safety Precautions
- Risk of FireRisk of ExplosionRisk of BurnsDo Not DisassembleDo Not Incinerate
