2kW AC Servo Motor 130mm Frame
This AC servo motor has a 130mm frame and delivers 2kW of power. It is designed for applications needing precise motion control, such as CNC machinery and robotics.
![[copy]S Servo Motor 130mm，2kw，220V - Image 1](https://cdn.merheinflare.com/public-site/products/copys-servo-motor-130mm2kw220v/1.jpg)

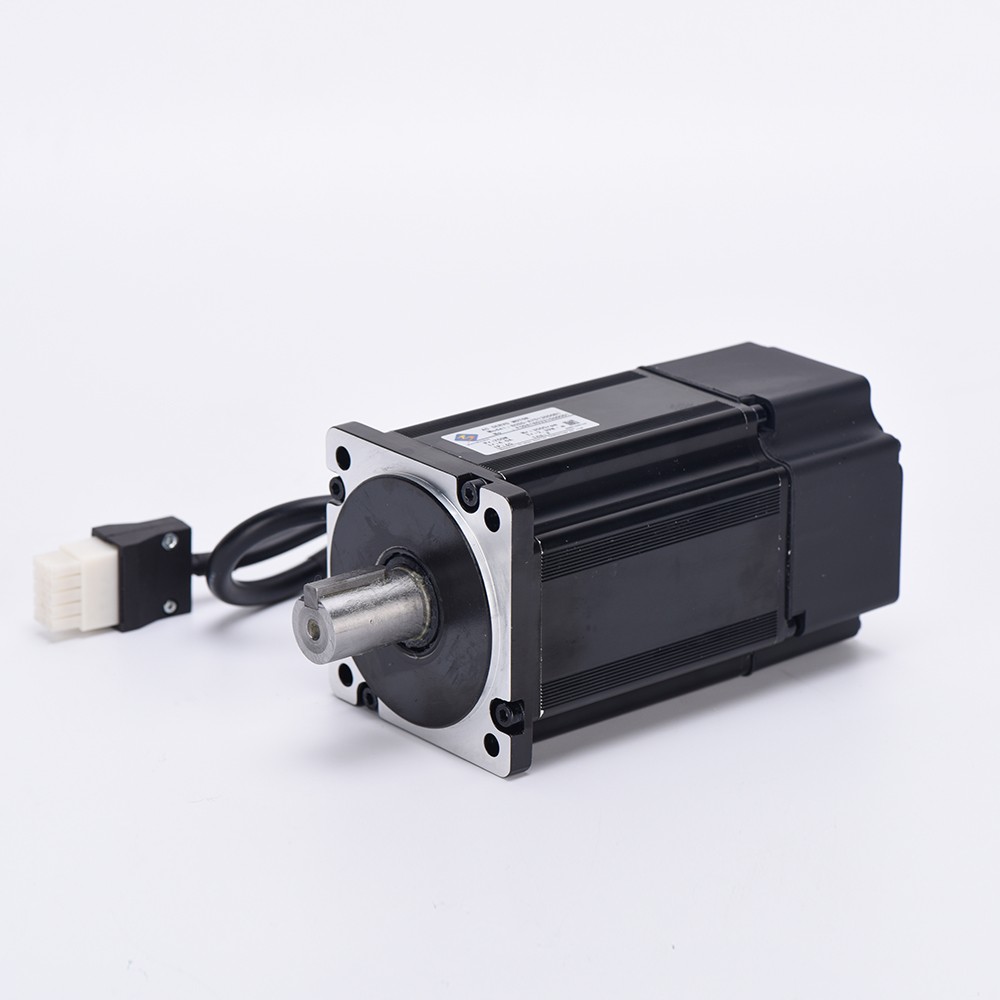

![[copy]S Servo Motor 130mm，2kw，220V - Image 2](https://cdn.merheinflare.com/public-site/products/copys-servo-motor-130mm2kw220v/0.jpg)
Technical Specifications
Overview
High-Performance 2kW AC Servo Motor
This 2kW AC Servo Motor features a robust 130mm frame designed for high-precision motion control in industrial environments. Utilizing advanced design solutions, it offers a compact structure with a shortened body, making it ideal for space-constrained installations without compromising on power. With support for multiple encoder configurations and high servo stability, it ensures accurate positioning and reliable performance for demanding B2B applications.
Key Performance Metrics
Key Performance Metrics
2 kW
Rated Power
220 V
Rated Voltage
9.55 Nm
Rated Torque
2,000 RPM
Rated Speed
Technical Specifications
Electrical & Mechanical Data
| Parameter | Value |
|---|---|
| Model | 130SD-A20220300 |
| Frame Size | 130 mm |
| Pole Pairs | 5 |
| Max. Torque | 28.65 Nm |
| Max. Speed | 3000 rpm |
| Rated Current | 10 A |
| Max. Current | 31.5 A |
| Torque Constant | 0.905 N-m/A |
| Voltage Constant | 61 V/krpm |
| Line Resistance | 0.54 Ω |
| Line Inductance | 5.91 mH |
Physical Dimensions
Physical Specifications
- Length without brake: 198.5 mm
- Length with brake: 232.5 mm
- Rotor inertia (no brake): 8.7×10^-4 kgm²
- Rotor inertia (with brake): 10.7×10^-4 kgm²
- Compact short-body design
Configuration & Compatibility
- Supported Encoders
- Absolute EncoderIncremental EncoderRotary Encoder23 Bit Motor Support
Applications
Application Areas

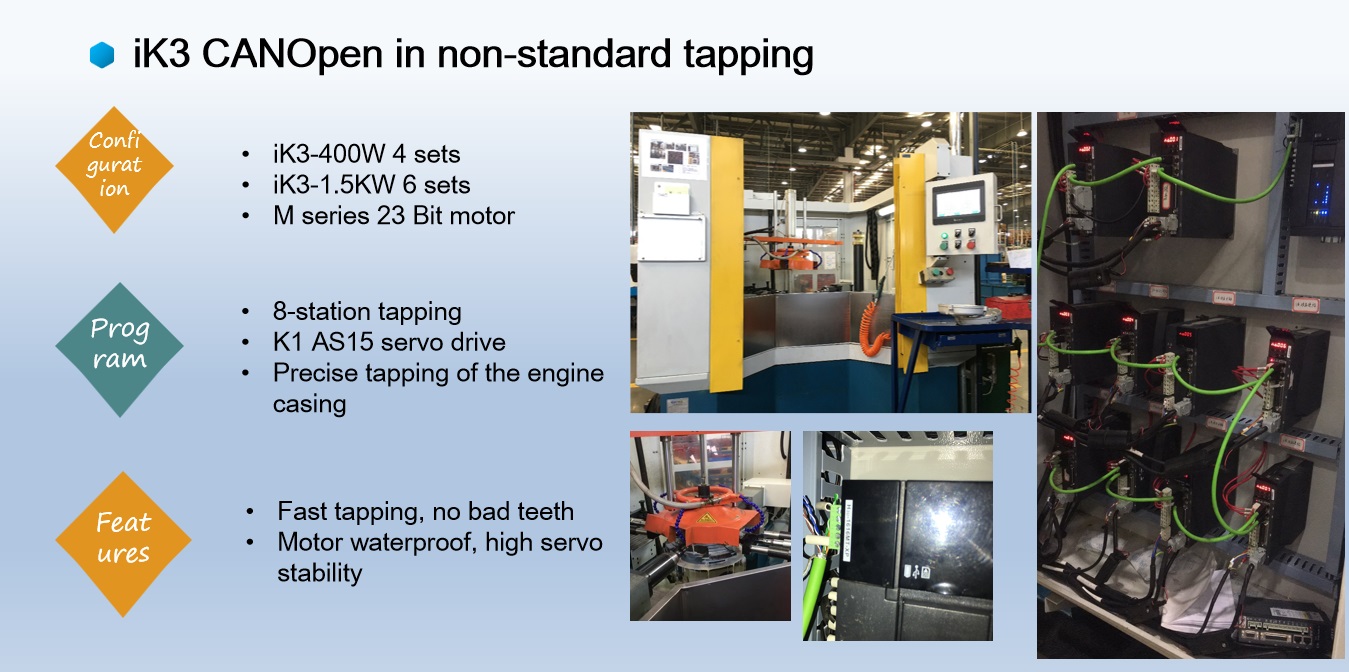

Jointed RobotsPicking RobotsCNC MillingEngraving MachinesHigh-End Electronic EquipmentTapping Machines
Operational Features
Key Features
- Waterproof motor construction
- High servo stability for precise tapping
- Fast response for high-speed cycles
- New technology compact structure
