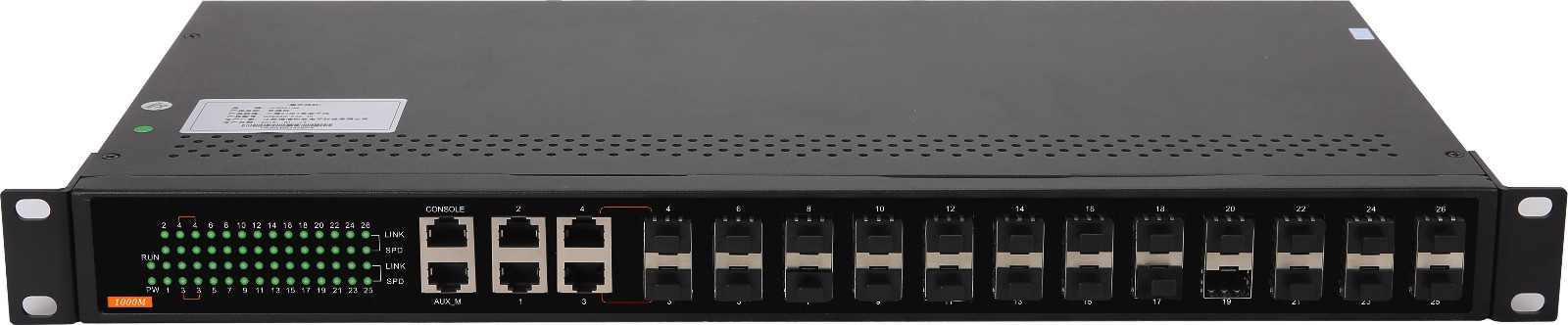

26-Port Gigabit Ethernet Fiber Switch
This is a 26-port Gigabit Ethernet fiber switch with 24 SFP ports and 2 RJ45 ports. It is designed for demanding network environments and provides fast, reliable connectivity.
Technical Specifications
Overview
High-Performance Managed Networking
This managed 26-port Gigabit Ethernet switch is engineered for high-bandwidth, real-time environments, offering a robust solution for multi-service integration. Featuring a fanless, low-power design, it ensures reliable operation in diverse settings ranging from enterprise offices to outdoor industrial applications. With support for Ethernet redundant ring protocols, advanced QoS, and comprehensive security policies, this device provides the scalability and manageability required for modern network infrastructures.
Interfaces & Connectivity
Port Configuration
22 ports
SFP Fiber Ports
2 ports
RJ45 Ethernet Ports
2 ports
Gigabit Combo Ports
Interface Specifications
| Interface Type | Specification |
|---|---|
| Console Port | RS232 in RJ45 |
| Ethernet Ports | 10/100/1000Base-TX auto-adaptive RJ45 |
| Fiber Ports | 1000Base-X SFP |
Switching Performance
Switching Capabilities
- Switching bandwidth: 56Gbps
- Packet forwarding speed: 41.6Mpps
- MAC Address Table: 8K
- Buffer Memory: 512Kb
- Processing Type: Store & forward, wire speed switching
Software & Management
- Supported Protocols
- IEEE 802.3IEEE 802.1QSNMP v1/v2/v3MSTPIGMP SnoopingDHCP ServerSSHSSLQoS
Physical & Environmental
Physical Dimensions
440 mm
Width
225 mm
Depth
44 mm
Height
2.75 kg
Weight
Operating Conditions
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5-95% (non-condensing)
- Installation: 1U Rack Mount
Power
Power Specifications
- Input Voltage: 100-240VAC
- Idle Consumption: 1.3A @ 12VDC
- Full-load Consumption: 3.07A @ 12VDC
- Protection: Overload Current Protection
