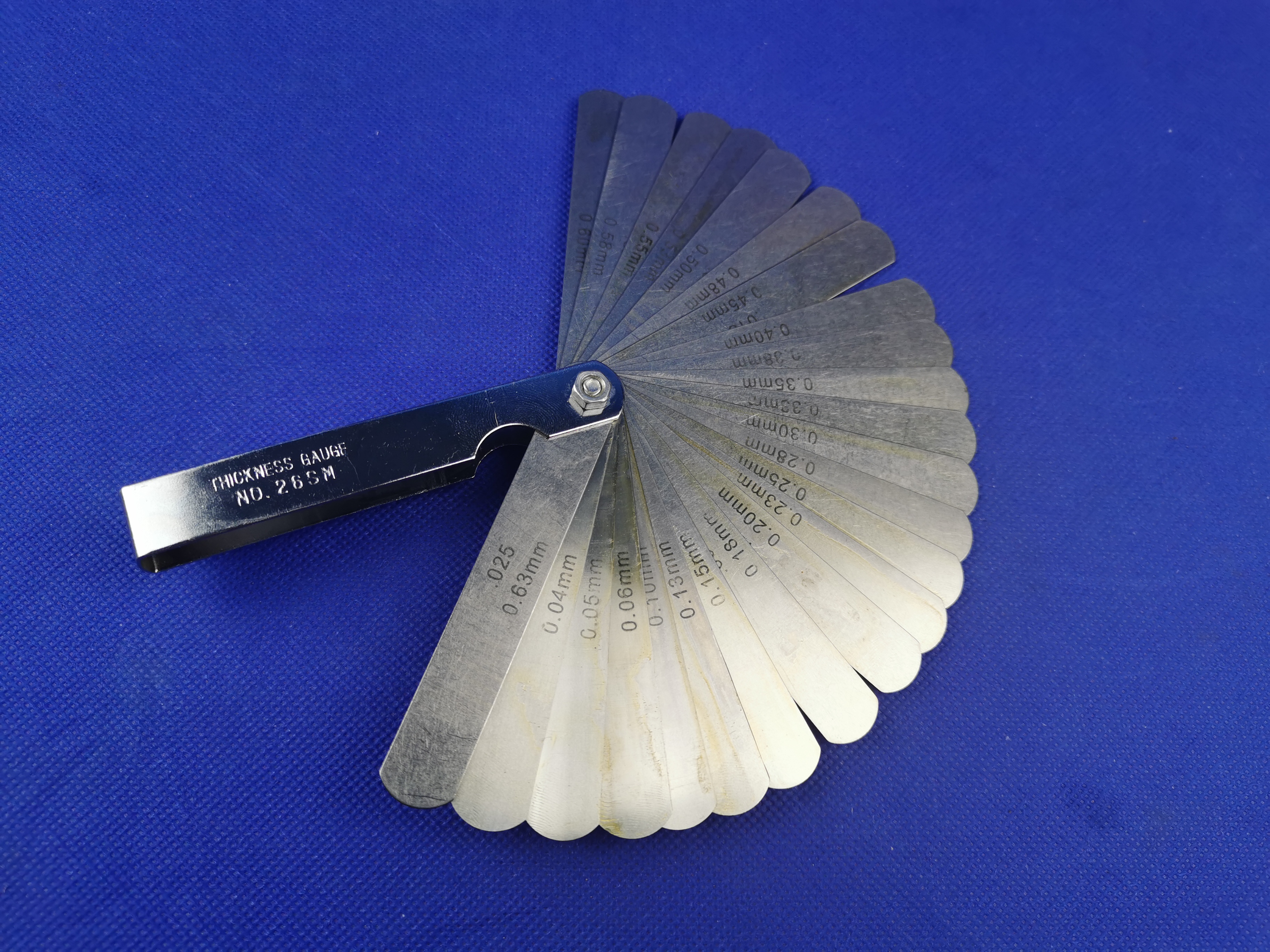

26-Piece Feeler Gauge Set
This 26-piece feeler gauge set is designed for measuring narrow gaps and clearances in mechanical components. It includes blades of varying thicknesses, ranging from 0.04mm to 0.63mm, allowing for accurate measurements in a wide range of applications.
Technical Specifications
Product Overview
Precision Measurement Tool
This 26-piece feeler gauge set is engineered for high-precision inspection, allowing for accurate gap and clearance measurements in mechanical components. Constructed from durable carbon steel, these gauges are essential for automotive, engineering, and maintenance tasks requiring exact adjustments. The set includes a versatile range of blade thicknesses, clearly marked for quick identification and efficient workflow.
Technical Specifications
Blade Thickness Reference
| Metric (mm) | Imperial (in) |
|---|---|
| 0.04 | 0.0015 |
| 0.05 | 0.002 |
| 0.06 | 0.0025 |
| 0.10 | 0.004 |
| 0.13 | 0.005 |
| 0.15 | 0.006 |
| 0.18 | 0.007 |
| 0.20 | 0.008 |
| 0.23 | 0.009 |
| 0.25 | 0.010 |
| 0.28 | 0.011 |
| 0.30 | 0.012 |
| 0.33 | 0.013 |
| 0.35 | 0.014 |
| 0.38 | 0.015 |
| 0.40 | 0.016 |
| 0.45 | 0.018 |
| 0.48 | 0.019 |
| 0.50 | 0.020 |
| 0.55 | 0.022 |
| 0.58 | 0.023 |
| 0.60 | 0.024 |
| 0.63 | 0.025 |
- Number of Blades
- 26
- Thickness Range (Imperial)
- 0.0015 - 0.025 inch
- Thickness Range (Metric)
- 0.04 - 0.63 mm
- Material
- Carbon Steel
Packaging & Storage
- Packaging Options
- PVC bagPaper card
