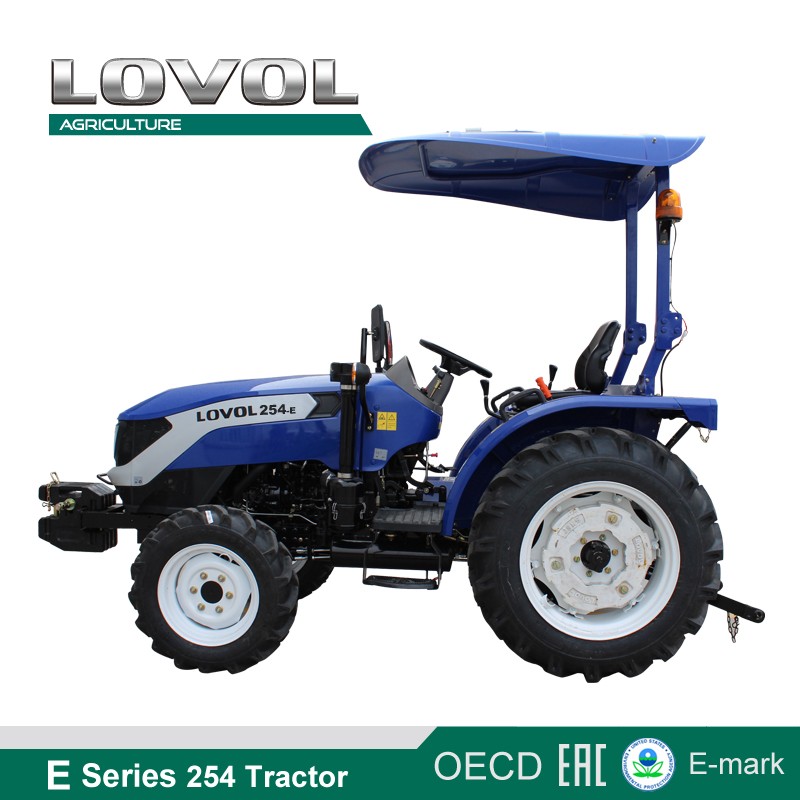

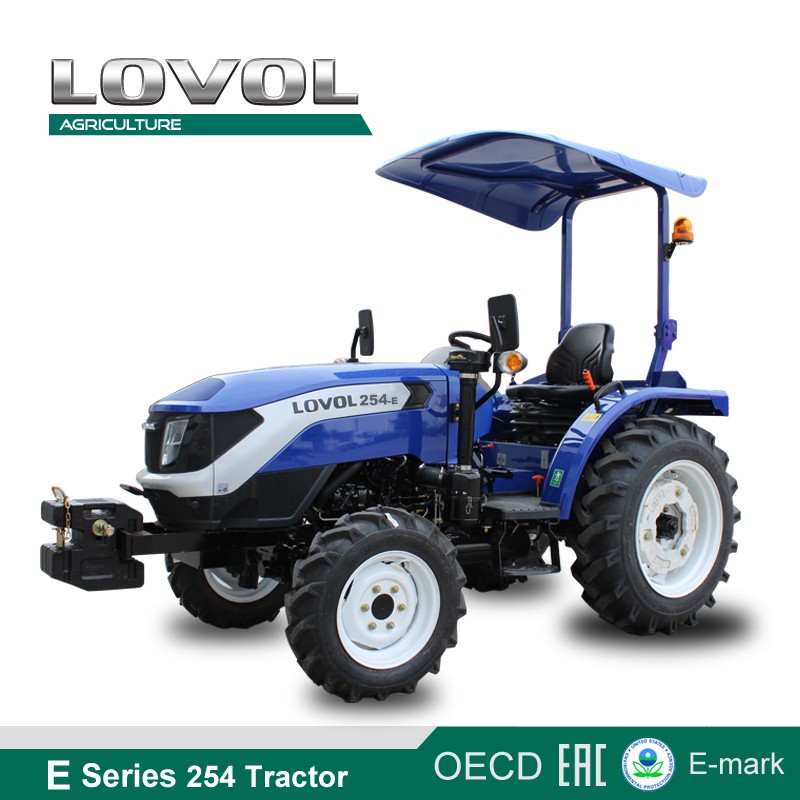

254 Series Agricultural Wheel Tractor
This tractor is suitable for farmland, lawns, gardens, and greenhouse planting. It offers synchronizer gearshift and multiple tire options.
Technical Specifications
Overview
Versatile Agricultural Performance
This 254 Series agricultural wheel tractor is engineered for diverse farming environments, including dry fields, paddy fields, and greenhouse operations. Featuring a robust 25HP engine and a 4x4 drive system, it provides the reliability needed for plowing, tilling, and general maintenance. With options for both CAB and ROPS configurations, it balances operator comfort with the heavy-duty performance required for modern agricultural tasks.
Performance & Engine
Rated Engine Power
18.8 KW
Kilowatts
25 HP
Horsepower
- Engine Configuration
- 3-cylinderWater-cooledIn-lineFour-stroke
- Max Traction Force
- 6.3 KN
- Torque Reserve Coefficient
- ≥25%
Drivetrain & Operation
Gear Shifts
8F+2R8F+8R Shuttle Shift
- Drive System
- 4x4
- Transmission Type
- Sliding gear / Synchronizer
- Clutch
- 8-inch double acting
Hydraulics & PTO
PTO Rotation Speeds
- 540
- 720
- 1,000
- Hydraulic Output Flow
- 25 L/min
- Max Lifting Force
- 5.2 KN
Dimensions & Weight
Physical Specifications
| Metric | CAB Version | ROPS Version |
|---|---|---|
| Overall Dimensions (mm) | 3453 x 1515 x 2450 | 3453 x 1515 x 2255 |
| Min. Operating Weight (kg) | 1550 | 1400 |
- Standard Tires
- 6.0-16 / 9.5-24
