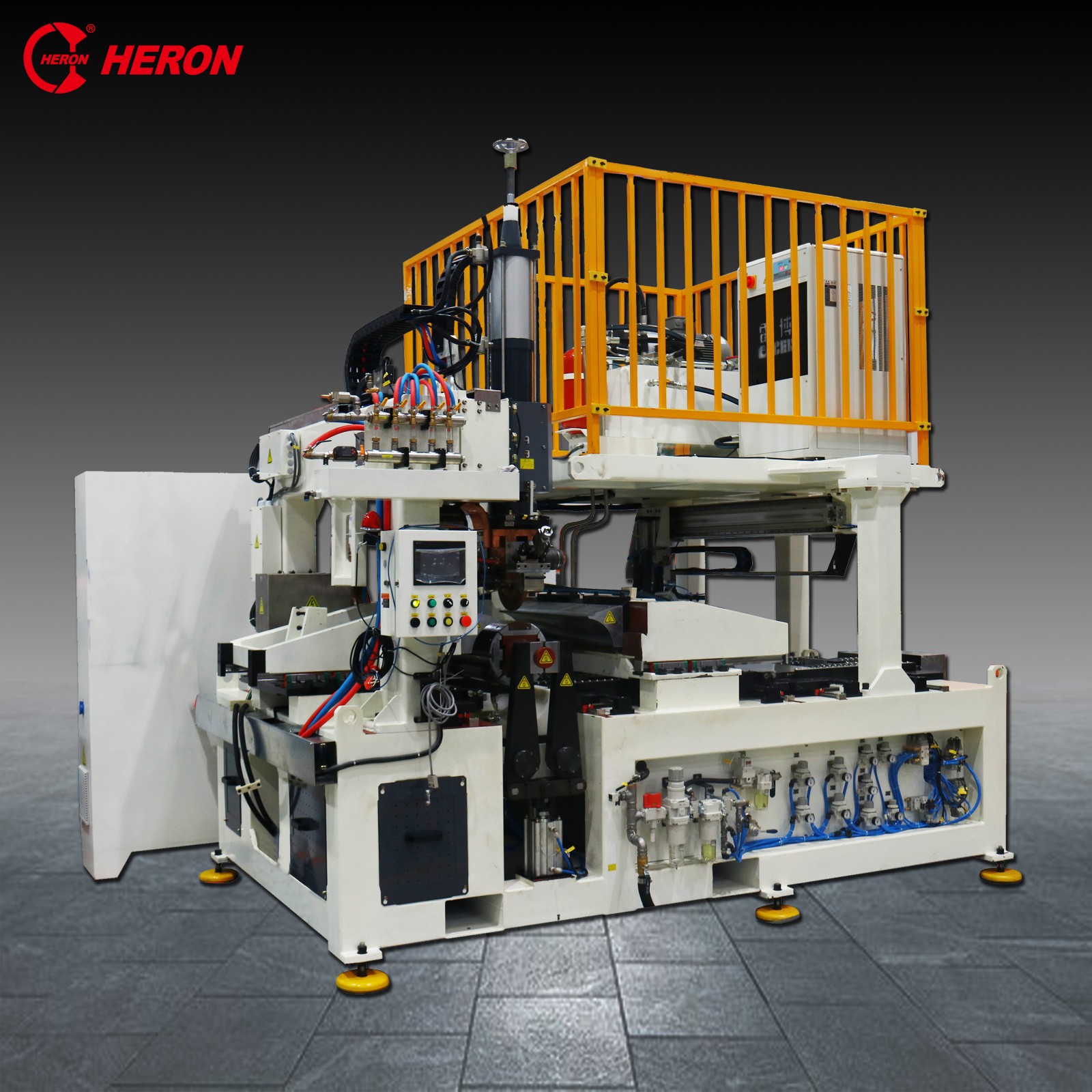

250KVA Automatic MFDC Seam Welder for Hardware Manufacturing
This automatic MFDC seam welder has a capacity of 250KVA and is designed for high-precision welding applications. The machine features advanced control systems for consistent weld quality and automated processes to enhance productivity.
Technical Specifications
Overview
High-Performance Seam Welding
This 250KVA Automatic MFDC Seam Welder is engineered for high-precision industrial applications, specifically within the hardware manufacturing sector. Utilizing advanced Medium Frequency Direct Current (MFDC) technology, the machine delivers consistent, high-quality welds with minimal spatter and enhanced energy efficiency. Designed for robust, continuous operation, it automates welding processes to maximize productivity while reducing operator fatigue.
Technical Specifications
- Rated Capacity
- 250 KVA
- Max. Primary Current
- 300 A
- Max. Short Circuit Current
- 40 KA
- Max. Working Pressure
- 10.6 KN
- Power Supply
- 380V/3Φ/50Hz
Physical Dimensions
- Dimensions (LxWxH)
- 4278 x 3353 x 3239 mm
Key Features
Key Features
- MFDC Technology for energy efficiency
- Automatic operation for high productivity
- Adjustable welding parameters
- Robust industrial construction

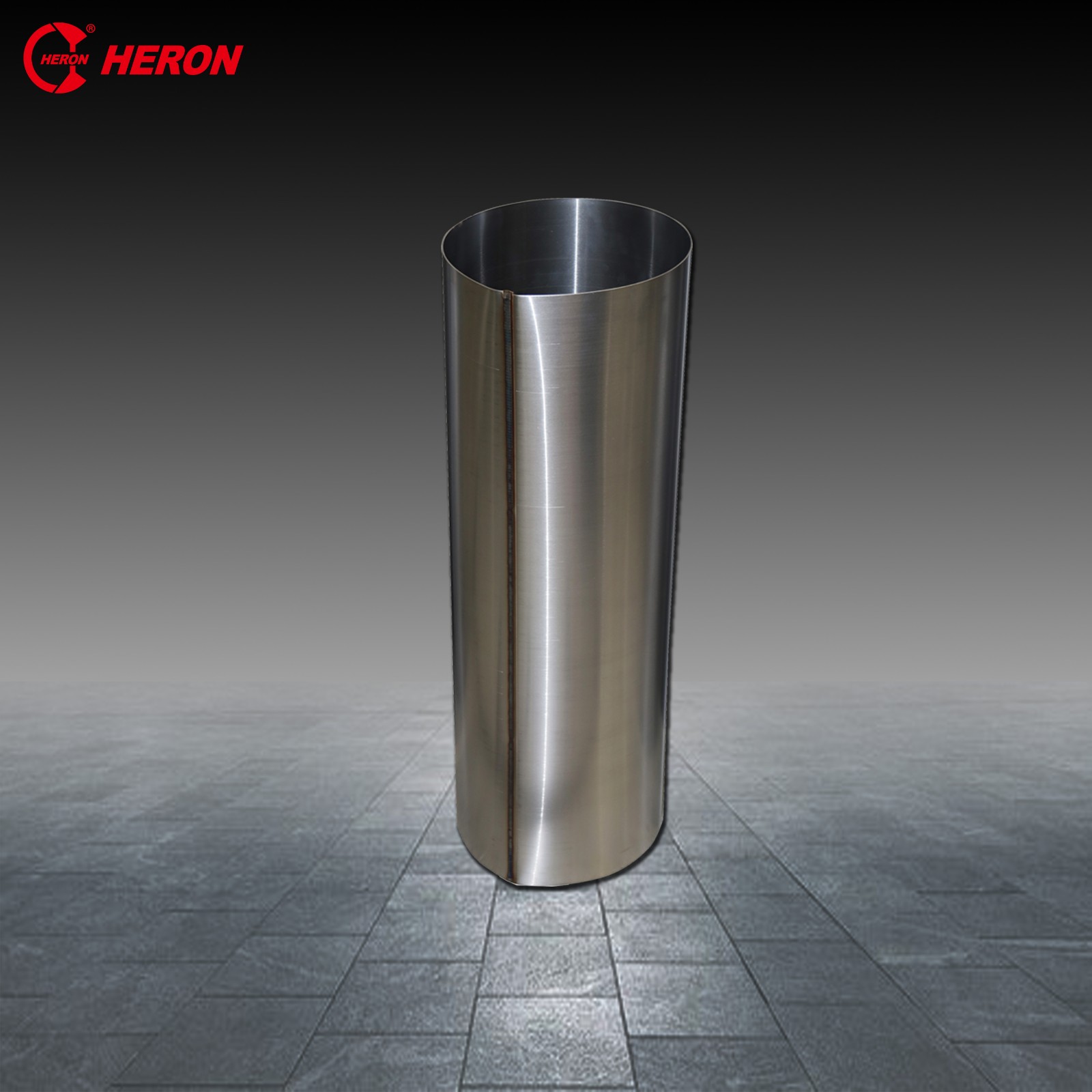

- Suitable for leak-proof seam applications
- Model Identifier
- FB-250-L19001
