24VDC Intermediate Relay with Surge Protection
This intermediate relay operates on a 24VDC power supply and provides surge protection. It is designed for reliable switching performance in control panels and automation systems.
Technical Specifications
Overview
Reliable Switching with Surge Protection

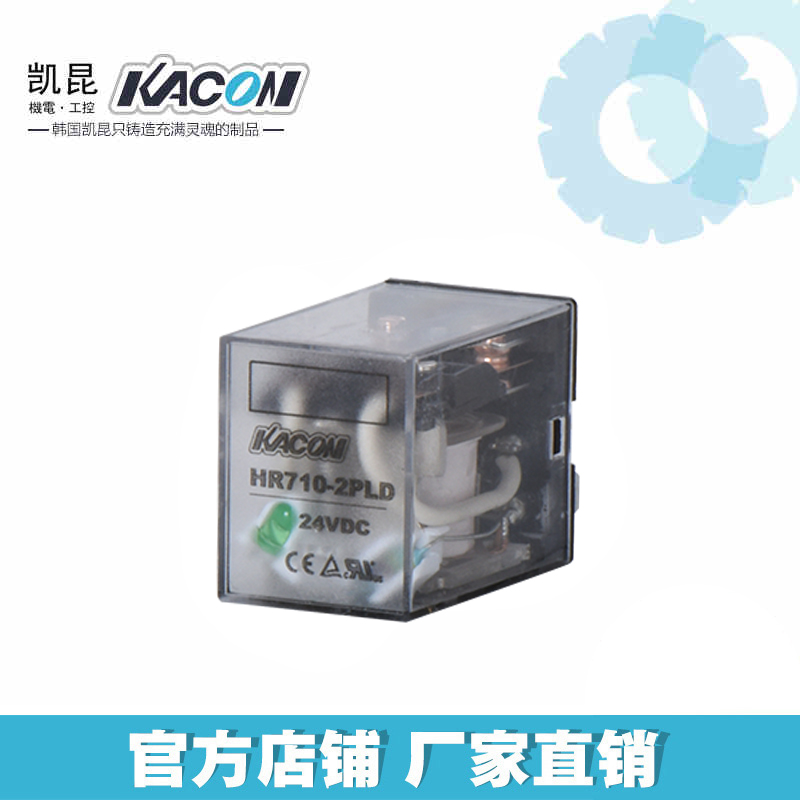

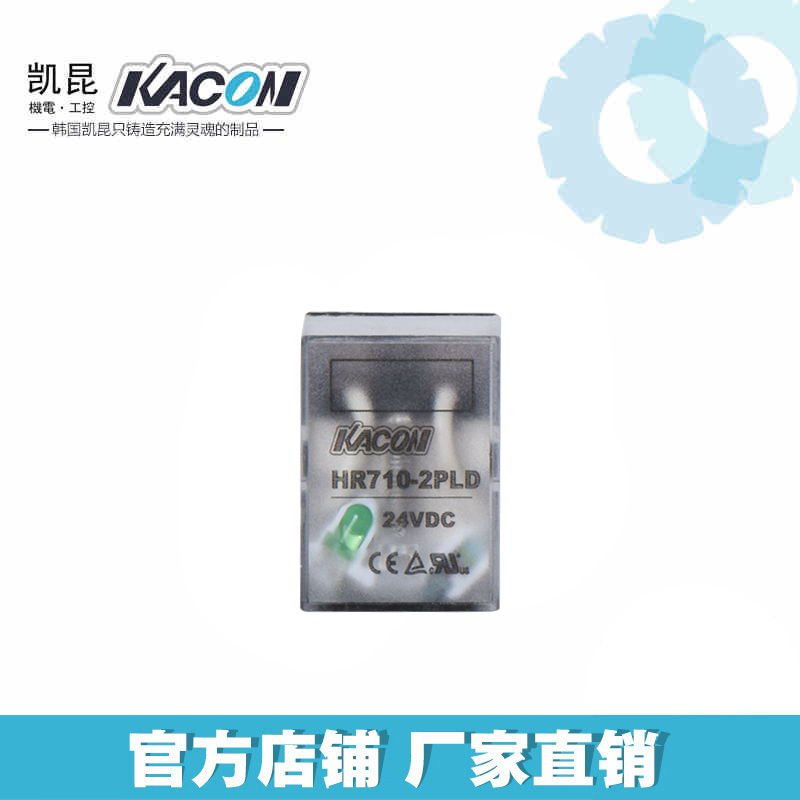

This intermediate relay is engineered for robust performance in industrial control panels and automation systems. Operating on a 24VDC power supply, it features built-in surge protection to safeguard sensitive electronic circuits from voltage spikes. The unit is housed in a transparent casing, allowing for easy visual inspection of internal components during operation.
Technical Specifications
- Coil Voltage
- 24 VDC
- Rated Current (AC)
- 10 A
- Rated Voltage (AC)
- 250 VAC
- Rated Current (DC)
- 10 A
- Rated Voltage (DC)
- 30 VDC
Features
Key Features
- Integrated surge protection
- Transparent housing for visual inspection
- Circuit diagram printed on relay body
- Compact design for space-constrained panels
Compliance
- Certifications
- CE
Performance Metrics
Performance Ratings
10 A
AC Switching Capacity
10 A
DC Switching Capacity
