Technical Specifications
Overview
High-Performance Lithium Starting Power

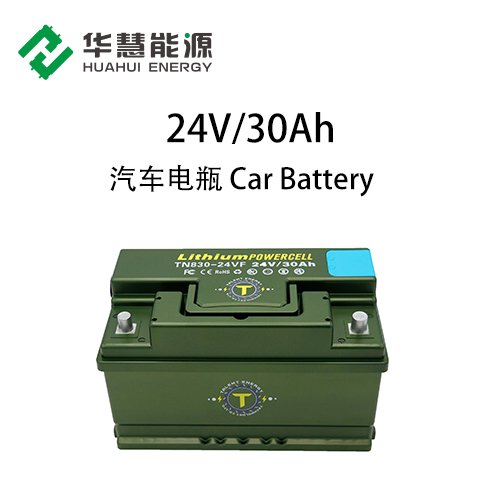

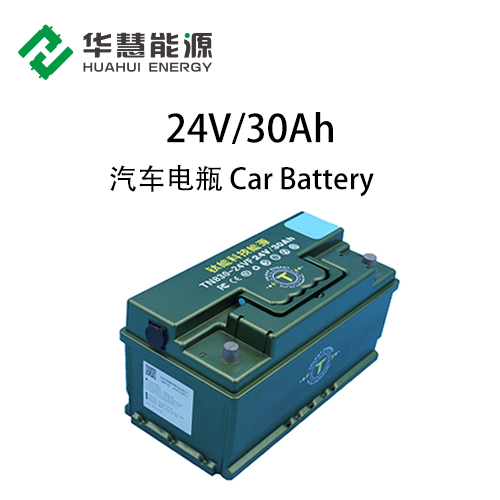

This 24V 30Ah intelligent lithium car battery is designed as a direct, high-efficiency replacement for traditional lead-acid batteries. Engineered with advanced LiFePo4 technology, it offers significant energy savings of 8-12% and features a high voltage platform for stable, reliable performance. Built with dual explosion-proof patented technology and military-grade components, it ensures superior safety, extended cycle life, and excellent high-temperature resistance.
Performance Metrics
Key Performance Metrics
180 A
Sustained Current
900 A
Starting Current
1,200 cycles
Life Cycles
Technical Specifications
Electrical Specifications
| Parameter | Value |
|---|---|
| Voltage | 24V |
| Capacity | 30Ah |
| Input Voltage | 28-29.2V |
| Charge Time | 15-18H |
- Operating Environment
- -15 to 75 degrees Celsius
Physical Characteristics
Dimensions & Weight
| Attribute | Value |
|---|---|
| Weight | 9.6 kg |
| Length | 350 mm |
| Width | 175 mm |
| Height | 190 mm |
Features
Key Features
- LiFePo4 Material
- Dual explosion-proof patented technology
- Military-grade electronic components
- Low self-discharge
- High temperature resistant
- No heavy metals or acid corrosive liquid
- Certifications
- FCCERoHS
