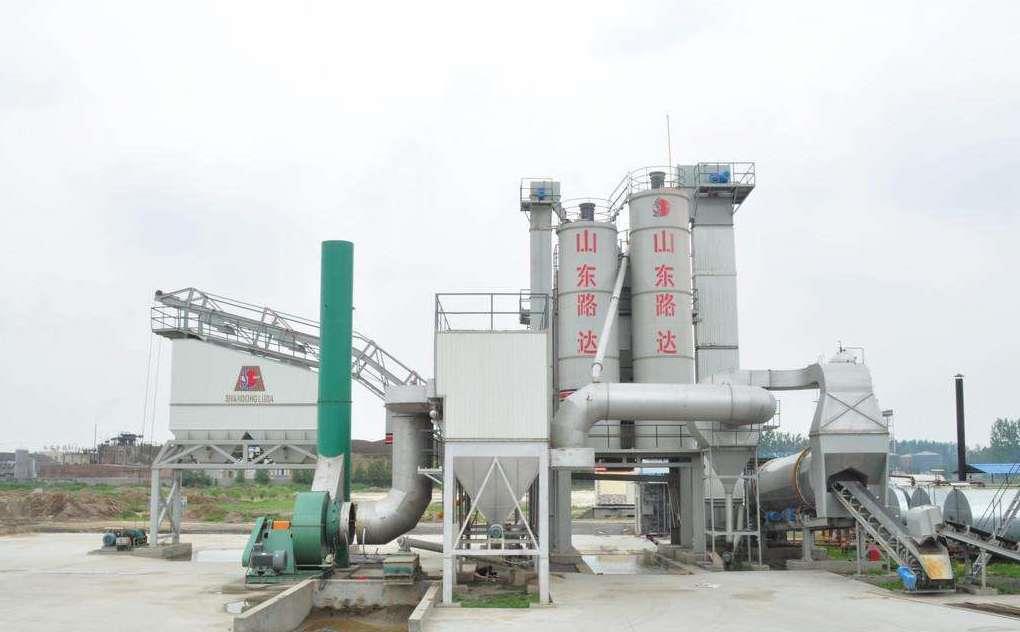

240 T/H Asphalt Mixing Plant
The 240 T/H asphalt mixing plant is designed for high-capacity asphalt production. It integrates aggregate feeding, drying, screening, weighing, and mixing systems to ensure efficient and consistent asphalt production.
Technical Specifications
Overview
High-Capacity Asphalt Production Solution
The QLB3000 is a high-performance asphalt mixing plant designed for large-scale road construction projects, delivering a consistent output of 240 tons per hour. It features a robust drying drum with superior thermal insulation and a twin horizontal shaft mixer to ensure high-quality asphalt production. Equipped with advanced PLC automated controls and a dual-stage dust collection system, this plant balances operational efficiency with environmental compliance.
Technical Performance
Production Capacity
240 t/h
Output Capacity
Measuring Accuracy (Static)
| Material | Accuracy Tolerance |
|---|---|
| Aggregate | ±0.5% |
| Asphalt | ±0.25% |
| Powder | ±0.25% |
- Main Power
- 626 kw
- Mixer Batch Capacity
- 2000 kg
Aggregate Supply System
Supply System Features
- Protective plates on hopper sides to prevent debris entry
- Vibrators installed below each hopper for smooth supply
- Top-mounted grid plates to screen oversized aggregates
- Integrated ladder and platform for easy maintenance
- Intermediate screen between conveyor belts for secondary screening
Drying & Heating
Drying Drum Construction
- Boiler steel plate construction for high strength
- Thermal insulation wool and stainless steel cladding
- Automatic lubrication device to reduce labor costs
- High-strength wear-resistant rolling rings and rollers
Combustion & Fuel
- Compatible Fuel Types
- CoalDiesel OilHeavy OilNatural Gas
Environmental Protection
Dust Collection Method
- Two-stage dedusting method
- Primary stage: Cyclone dust collector
- Secondary stage: Bag house collector
- Heat-resistant filter bags with pulse control
- Integrated temperature testing and heat insulation
Control & Mixing
- Control System
- Integrated PLC/Computer automatic and semi-auto control
- Mixer Configuration
- Twin horizontal mix shaft with auto-lubrication
Storage
- Asphalt Tank Capacity Range
- 25 - 200 t
