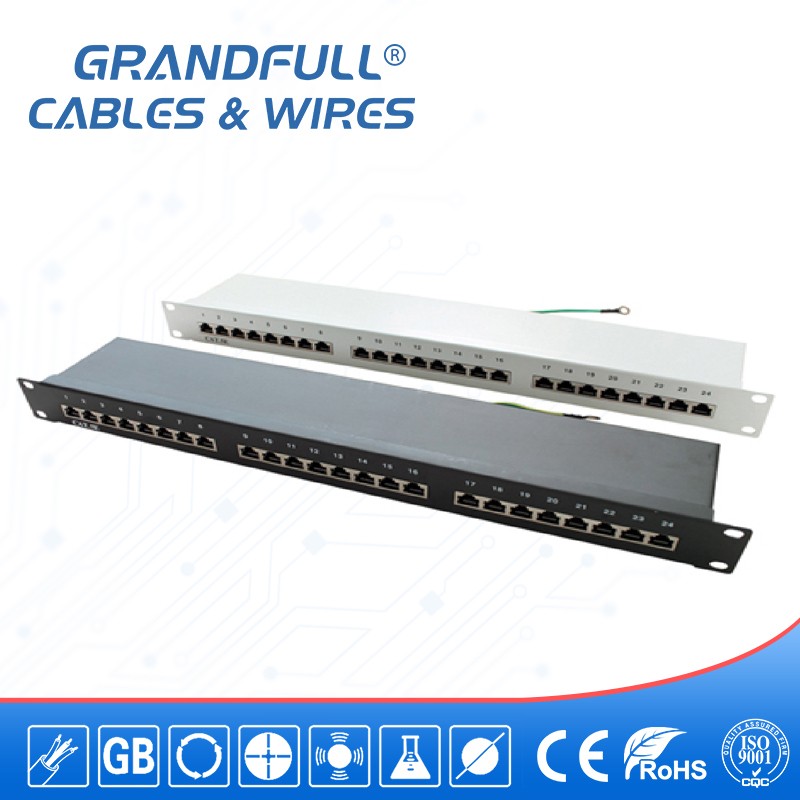

24-Port RJ45 Patch Panel
This 24-port RJ45 patch panel is designed for telecommunications field wiring systems and Gigabit Ethernet network communications. It supports patch panels, faceplates, wiring, cable management, and Cat5e/Cat6 cables.
Technical Specifications
Overview
Professional Network Connectivity

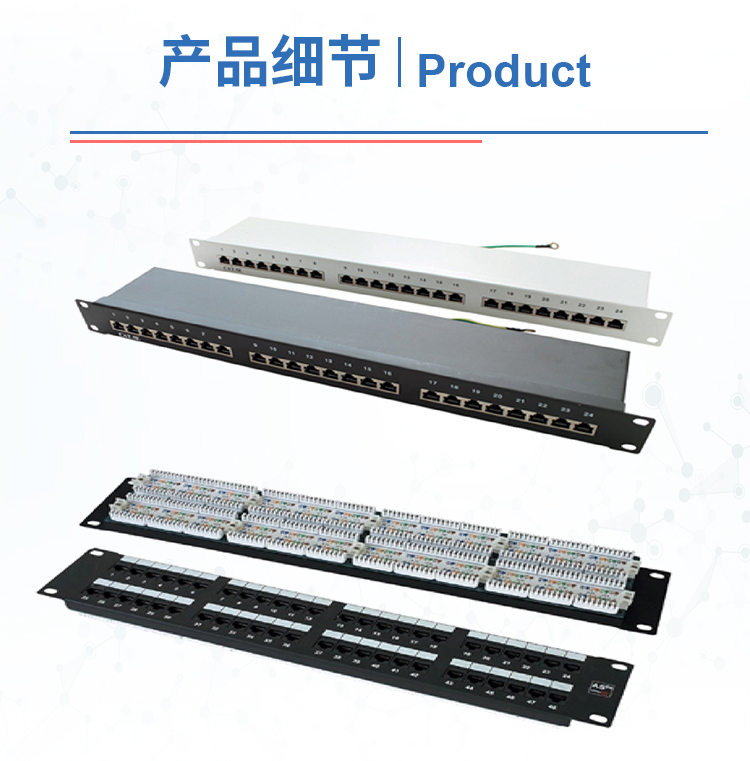

This high-density 24-port RJ45 patch panel is engineered for efficient cable management in demanding network environments. Designed for indoor installation, it supports both Cat5e and Cat6 cabling systems, ensuring reliable performance for Gigabit Ethernet and telecommunications field wiring. The durable construction features a carbon steel frame with a black powder coating, providing long-term wear resistance and stability for data centers and server rooms.
- Port Configuration
- 24 Ports
Technical Specifications

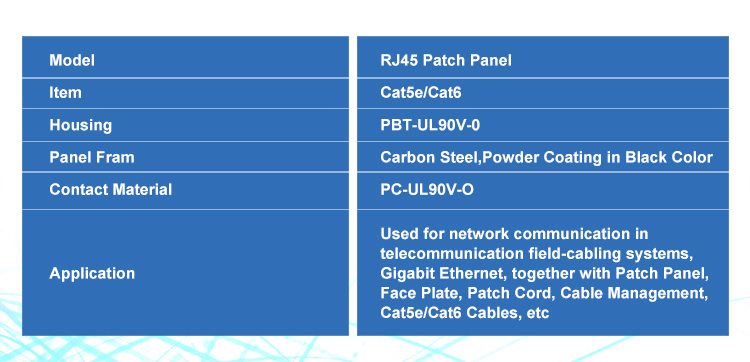

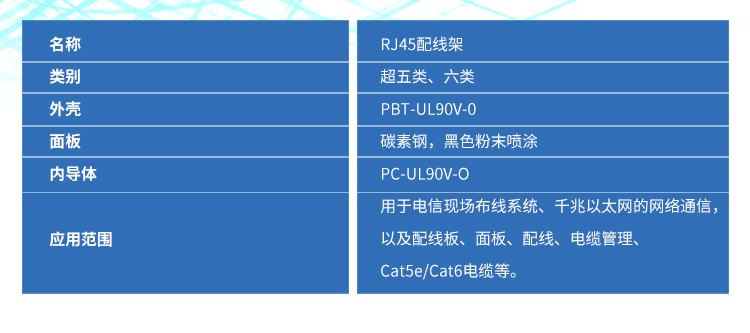

Material Specifications
| Component | Material Specification |
|---|---|
| Housing | PBT-UL90V-0 |
| Panel Frame | Carbon Steel (Black Powder Coating) |
| Contact Material | PC-UL90V-0 |
- Compatible Cable Standards
- Cat5eCat6
Compliance & Quality
Certifications & Standards
ISO9001ISO14001ISO18001CERoHS
Quality Assurance
- Fluke Test Passed
- Wear Resistant
- Pressure Resistant
Services
Available Services
- OEM Service Available
- Free Samples for Testing
