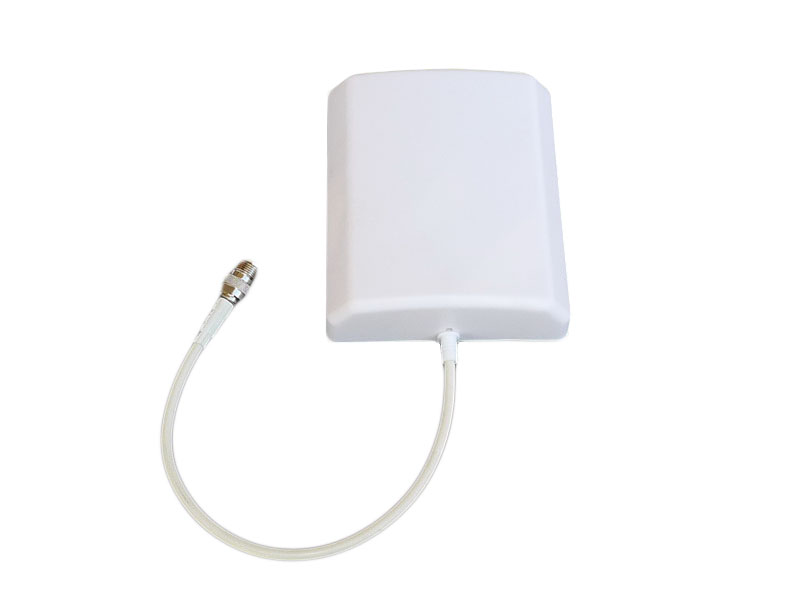

2.4 GHz 10 dBi Directional Panel Antenna
This is a 2.4 GHz panel antenna with 10 dBi gain. It is designed for directional signal transmission and reception in wireless communication systems.
Technical Specifications
Product Overview
High-Performance Directional Connectivity
The HXD24P-14-2 is a high-gain directional panel antenna engineered for robust wireless communication within the 2.4 GHz ISM band. Delivering a 10 dBi gain, this antenna focuses signal transmission to significantly enhance range and reliability for Wi-Fi networks, wireless security systems, and industrial data transmission. Its durable ABS radome construction and high wind resistance ensure consistent performance in both indoor and outdoor environments.
Electrical Specifications
Frequency Range
2,400 MHz
Start Frequency
2,500 MHz
End Frequency
Half-Power Beam Width
| Plane | Degrees |
|---|---|
| Horizontal | 63 |
| Vertical | 45 |
Lightning Protection
DC Ground
- Gain
- 10 dBi
- Polarization
- Vertical
- Impedance
- 50 Ω
- VSWR
- ≤1.5
- Maximum Input Power
- 100 W
Mechanical Specifications
- Connector Type
- N-Female
- Dimensions
- 140 x 120 x 40 mm
- Weight
- 0.55 kg
- Radome Material
- ABS
- Rated Wind Velocity
- 60 m/s
- Mounting Hardware
- φ35～φ50 mm
