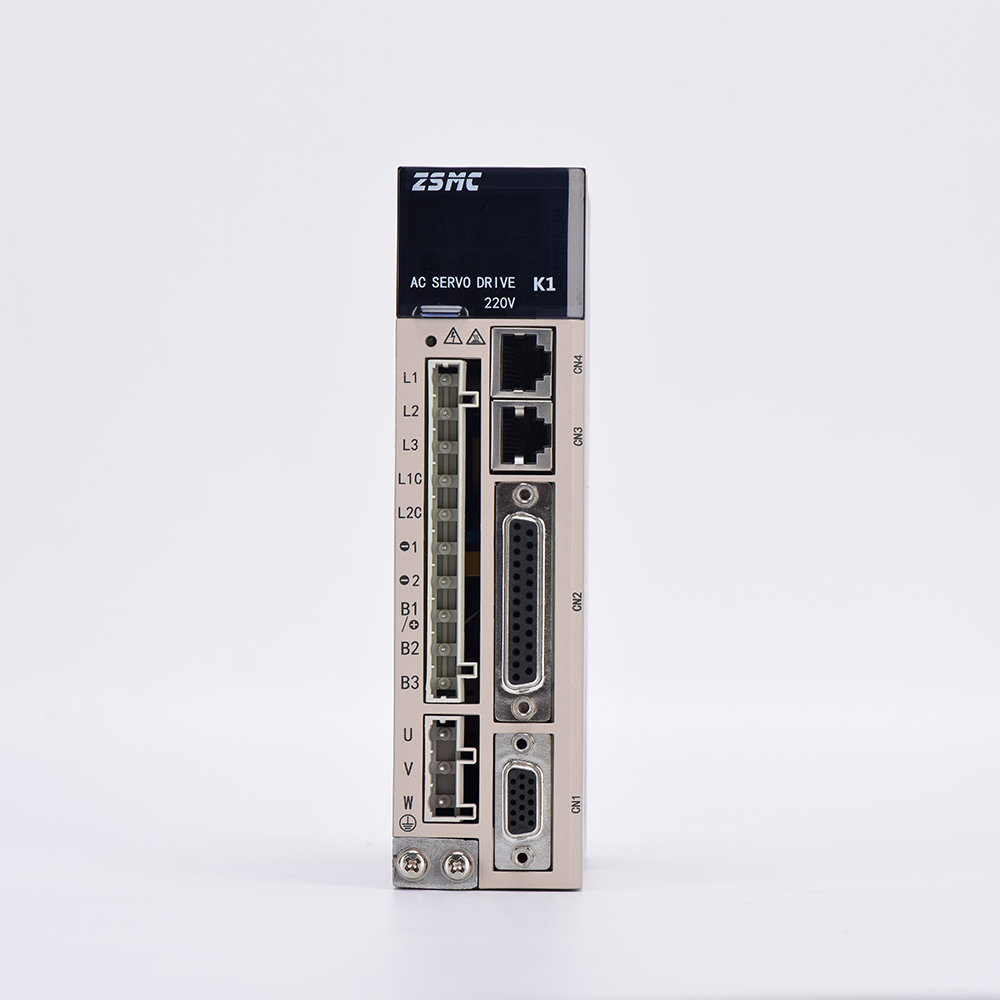

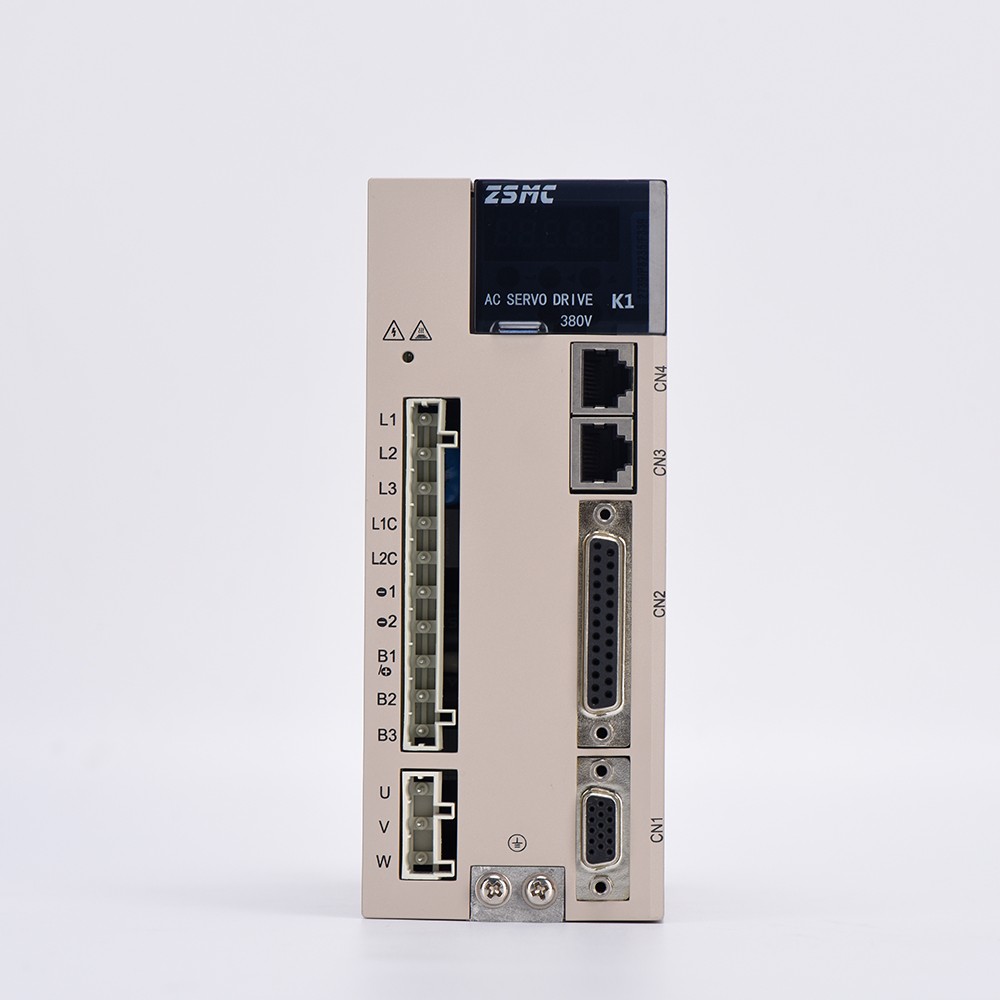

2.2kW Universal Pulse Servo Drive
This 2.2kW servo drive provides precise and reliable control of servo motors. It supports pulse and direction control modes for seamless integration with various control systems.
Technical Specifications
Overview
High-Performance Universal Servo Drive
The 2.2kW Universal Pulse Servo Drive is designed for high-precision industrial automation, offering powerful motion control and robust stability. It features intelligent load inertia determination and mechanical resonance frequency analysis to optimize gain settings and eliminate vibrations. With support for multiple communication protocols including CANopen and intuitive debugging software, this drive ensures seamless integration and high efficiency for demanding motion control applications.
Key Features
Stability & Compensation
- Automatic load inertia determination
- Mechanical resonance frequency analysis (50-5000Hz)
- Frictional torque compensation
- Trap filter configuration for vibration suppression
- Motion Control
- Multi-path planning32 data sets supportAdjustable acceleration/decelerationEmergency deceleration supportPulse and direction control
Technical Specifications
- Power Rating
- 2.2 kW
- Communication
- CANopenCN1CN2CN3CN4
Application Suitability
Common Industrial Applications
| Application | Key Benefit |
|---|---|

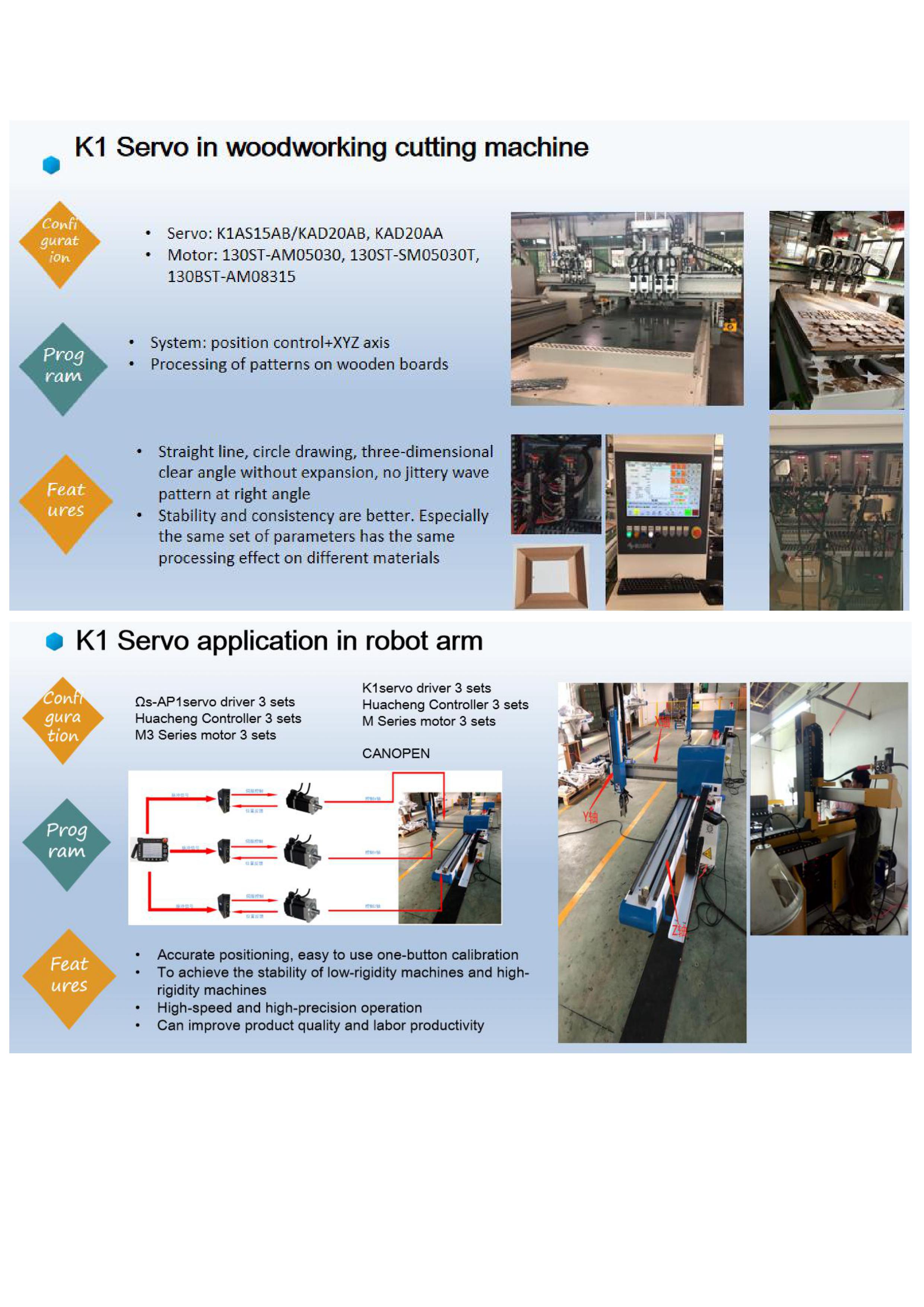

| Woodworking Machines | Precise XYZ axis processing and pattern consistency |
| Robot Arms | High-speed precision and stability for low-rigidity setups |

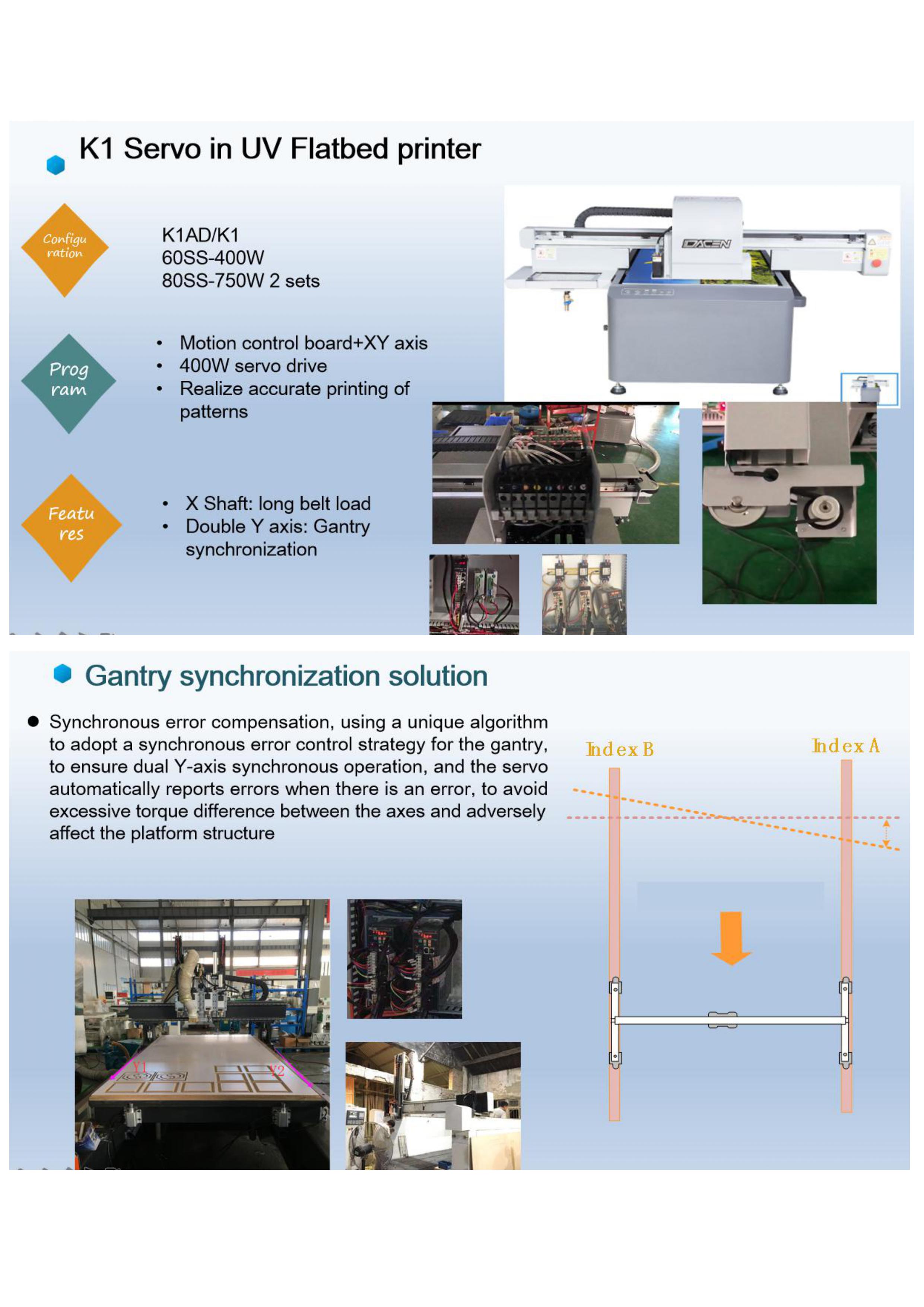

| UV Flatbed Printers | Synchronized gantry motion with error compensation |
