Technical Specifications
Product Overview

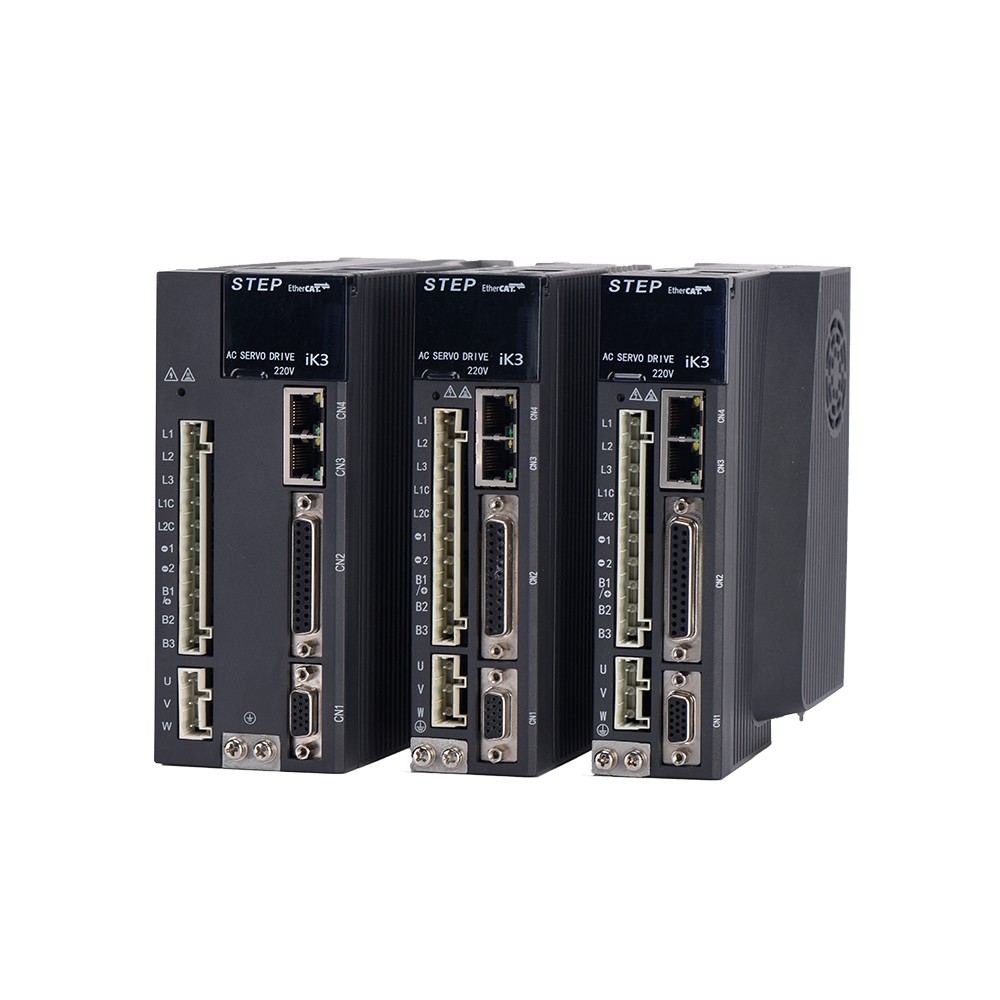

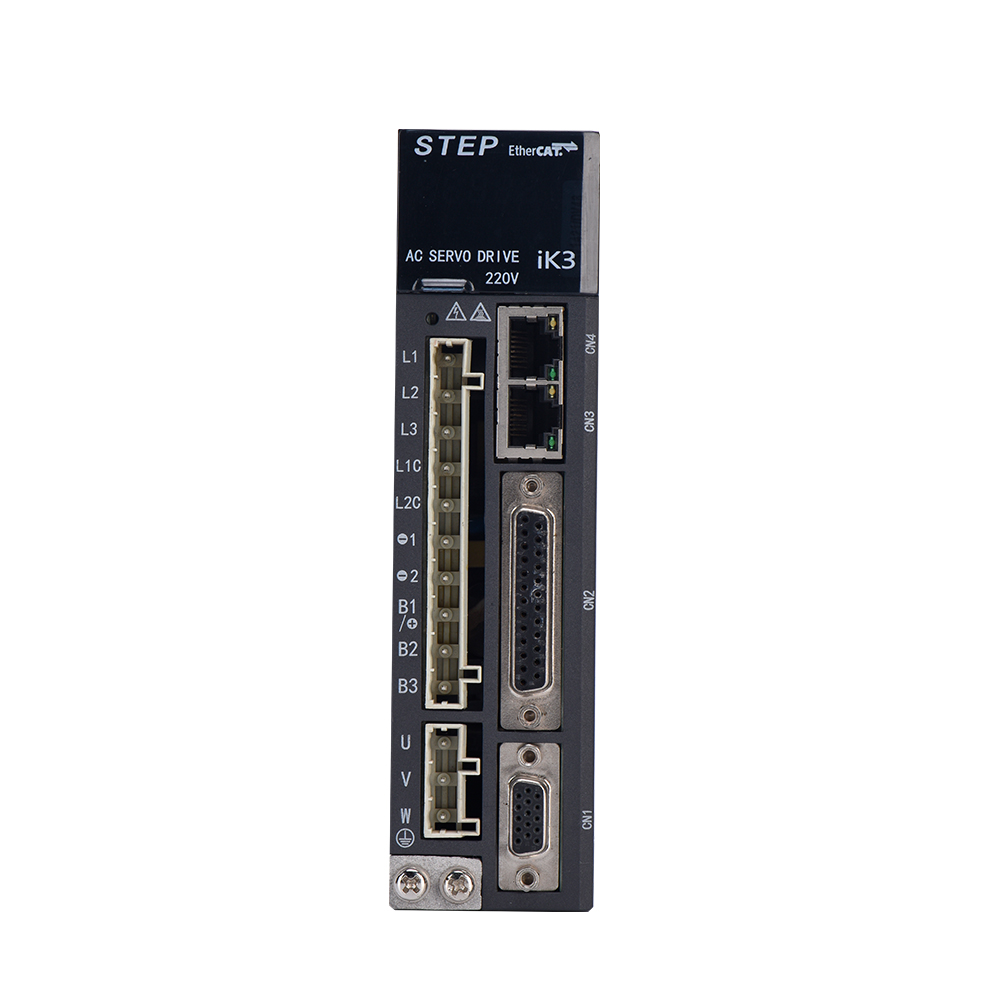

High-Performance Universal Bus Servo Drive
This 2.2kW servo drive is engineered for precision motion control in demanding industrial environments. It features advanced bus synchronization accuracy of less than 0.1us and a high-frequency response current loop exceeding 2.5 kHz. With built-in support for EtherCAT communication and robust safety functions like SS1, SS2, and SBC, this drive ensures seamless integration and reliable operation in complex mechanical systems.
Technical Specifications
Performance Metrics
2.5 kHz
Current Loop Frequency
1.6 kHz
Speed Loop Frequency
0.1 us
Bus Sync Accuracy
- Advanced Control Capabilities
- Active Resonance SuppressionEnd Jitter SuppressionFriction CompensationGroove Torque CompensationWeak Magnetic Observation
Electrical Ratings
Power Supply Requirements
- Main Power: 220V Single-phase/three-phase AC (-15% to +10%, 50-60Hz)
- Control Power: 220V Single-phase AC (-15% to +10%, 50-60Hz)
Environmental Requirements
Operational Conditions
| Parameter | Range/Value |
|---|---|
| Operating Temperature | 0 to 45°C |
| Operating Humidity | 20-85% RH (non-condensing) |
| Altitude | < 1000m |
| Vibration Resistance | 5.8 m/s² |
Communication & Connectivity
Bus Protocols
EtherCATCANopen
Safety & Compliance
- Integrated Safety Features
- SS1SS2SBCThree-proof Paint Coating
