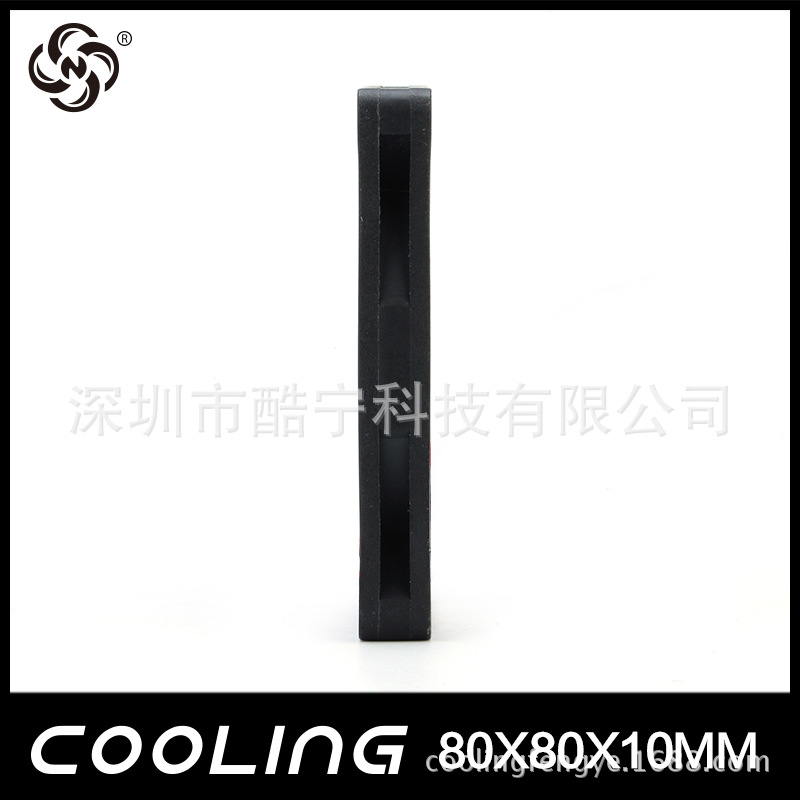

220V AC Cooling Fan 80x80x10mm
This AC cooling fan operates at 220V and has dimensions of 80x80x10mm. It is designed for efficient heat dissipation in electronic and mechanical applications.
Technical Specifications
Product Overview
High-Efficiency 220V AC Cooling Solution
This 80x80x10mm AC cooling fan is engineered for high-performance thermal management in space-constrained industrial and electronic applications. Featuring a durable die-cast aluminum housing and glass fiber reinforced plastic impellers, it ensures reliable airflow and stability. It is an ideal choice for cooling power supplies, compressors, and specialized equipment like mosquito lamps.
Technical Specifications
- Dimensions
- 80 x 80 x 10 mm
- Rated Voltage
- 220 V
- Insulation Impedance
- 500MΩ
- Dielectric Strength
- 2200V/S

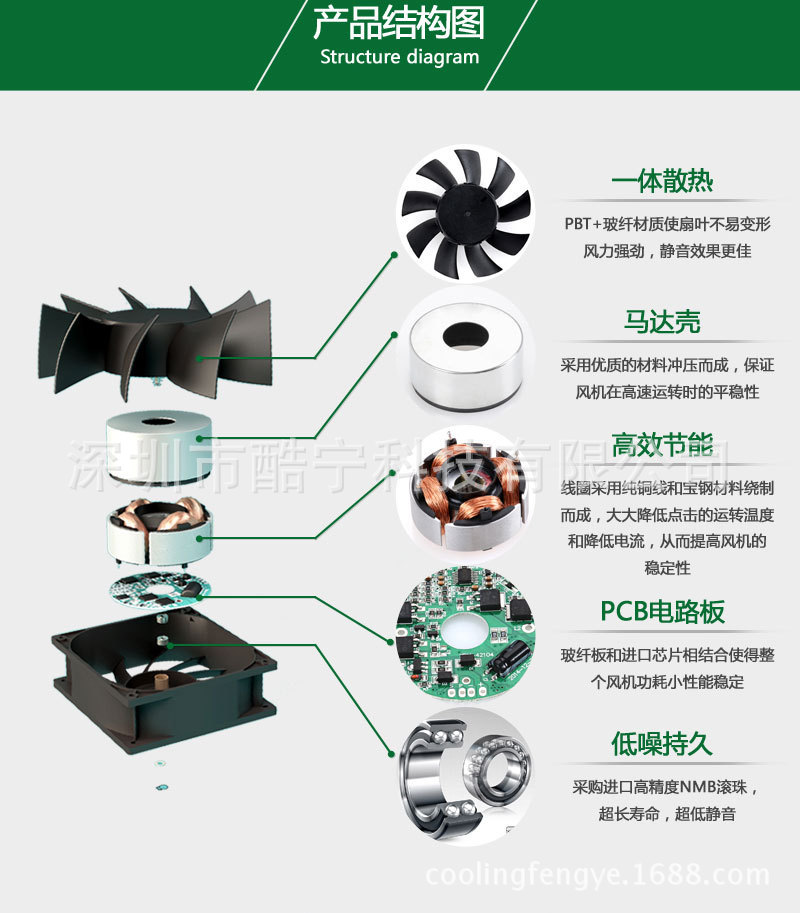

Construction & Materials
- Housing Material
- Die-cast aluminum
- Impeller Material
- Glass fiber reinforced plastic (UL 94V-0 rated)
- Coil Construction
- Pure copper line with Baosteel materials
Performance Metrics
Available Speed Ratings
- 4,000
- 3,500
- 3,000
- 2,500
- 2,000
Key Performance Metrics
4,000 RPM
Max Speed
30 CFM
Max Airflow
Bearing Options
Bearing Type Comparison
| Bearing Type | Advantages | Lifespan |
|---|---|---|
| Ball Bearing (BHL) | Low friction, no oil leakage, high speed | Long (2-year warranty) |
| Sleeve Bearing (SHL) | Lower noise, cost-effective | Standard (1-year warranty) |

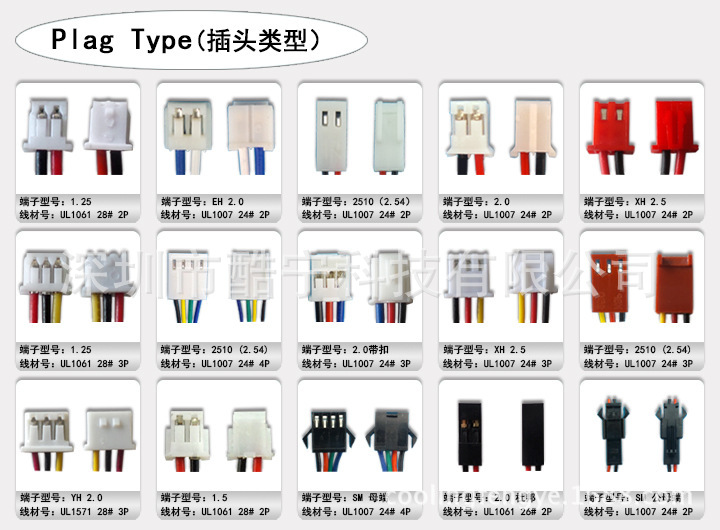

Customization & Connectivity
- Interface Options
- Leader WireTerminal ConnectorXH2.5EH 2.02510 (2.54)SM
Safety & Usage
Operational Guidelines
- Do not exceed 80°C operating environment to prevent deformation
- Avoid dust, water droplets, and insect entry
- Do not use in flammable or harmful gas environments
- Avoid pulling power cords or pressing blades
- Ensure screws are not over-torqued beyond 4Kgf
