220V AC Cooling Fan 75x75x30mm
This 220V AC cooling fan offers efficient cooling for various applications. Its compact 75x75x30mm size makes it suitable for use in electronic devices and machinery.
Technical Specifications
Overview
High-Performance 220V AC Cooling Solution
This 75x75x30mm AC cooling fan is engineered for demanding industrial and electronic applications, featuring a robust die-cast aluminum housing for superior durability. It utilizes high-temperature copper wiring and a UL 94V-0 rated glass fiber reinforced impeller to ensure reliable operation in high-heat environments. Designed for versatility, it is an ideal thermal management solution for compressors, machinery, and specialized equipment requiring consistent airflow.
Key Performance Metrics
Performance Highlights
220 V
Rated Voltage
500 MΩ
Insulation Impedance
2,200 V/s
Resist Strength

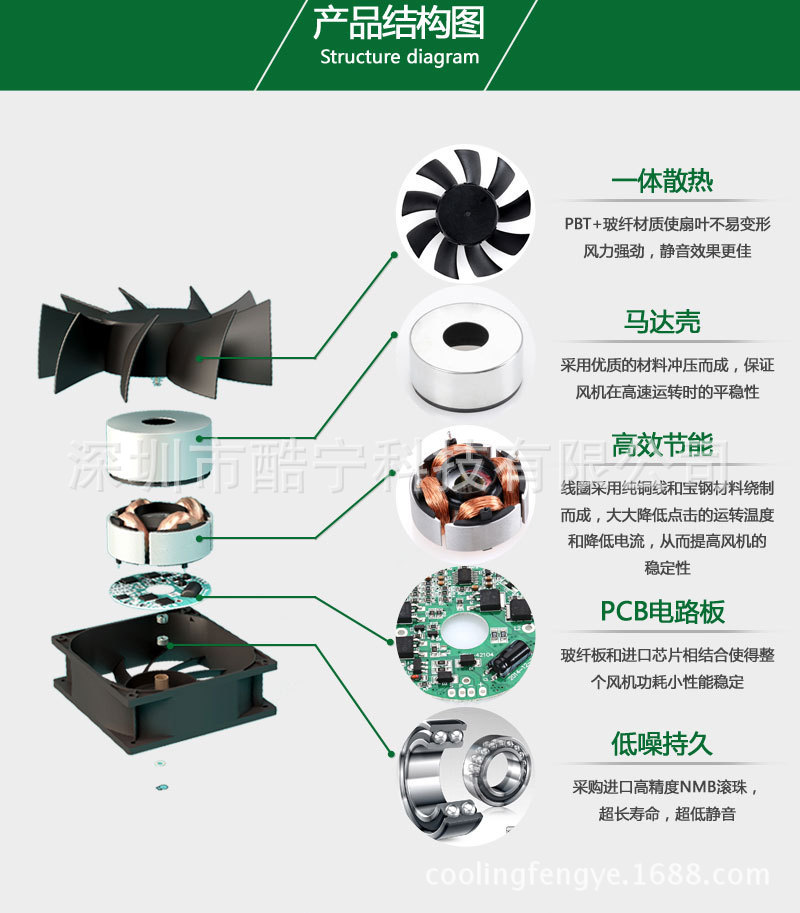

Physical Construction
- Housing Material
- Die-cast aluminum
- Impeller Material
- Glass fiber reinforced plastic (UL 94V-0 rating)
- Dimensions
- 75 x 75 x 30 mm
Technical Specifications

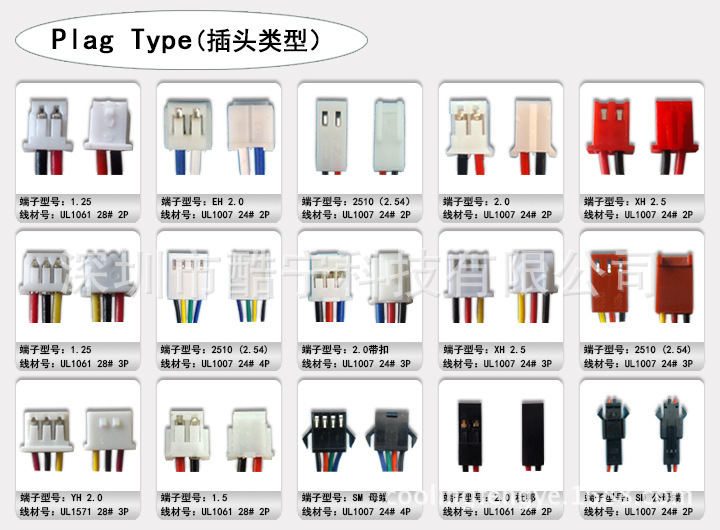

Wiring Options
- Leader wire available
- Terminal connection available
- High-temperature copper line
Safety & Protection
UL 94V-0 Fire RatedHigh Temperature ResistanceDie-cast Protection

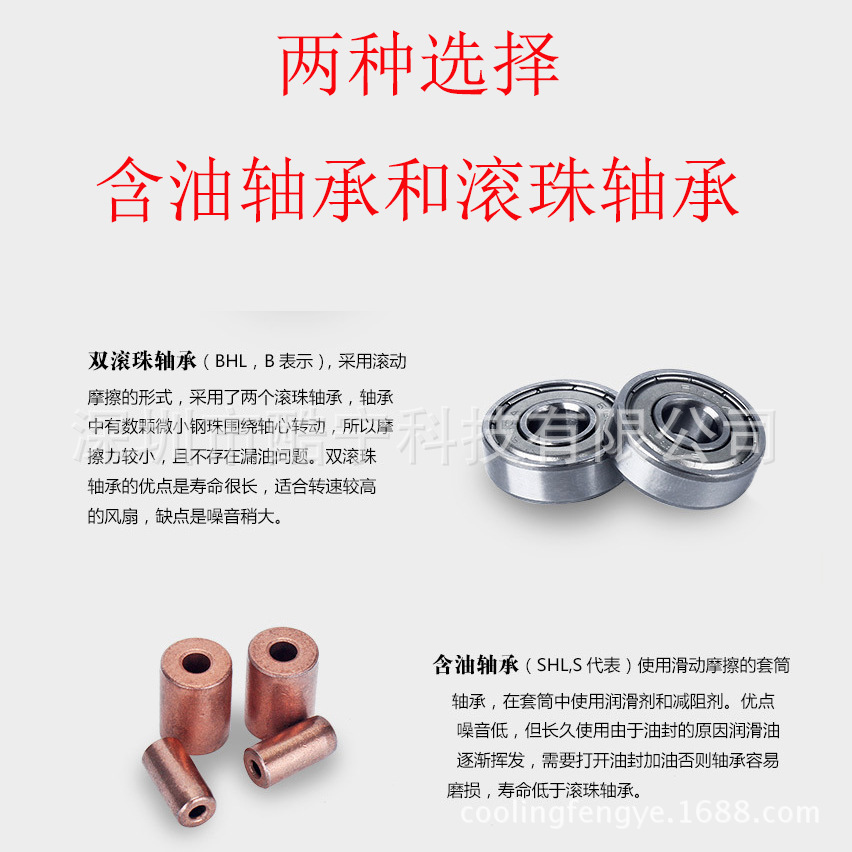

- Available Bearing Types
- Ball BearingSleeve Bearing
Selection Guide

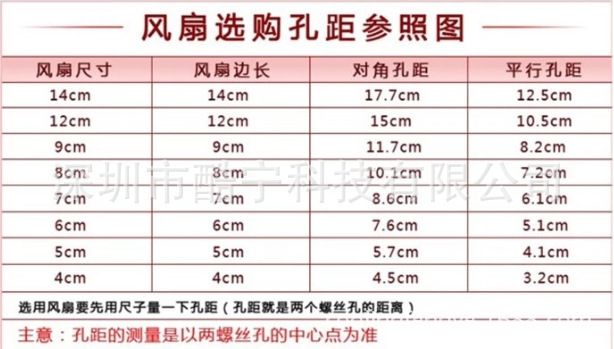

Hole Distance Reference
| Fan Size | Diagonal Hole Distance | Parallel Hole Distance |
|---|---|---|
| 4cm | 4.5cm | 3.2cm |
| 6cm | 7.6cm | 5.1cm |
| 8cm | 10.1cm | 7.2cm |
| 12cm | 15cm | 10.5cm |
Usage & Maintenance
Operating Precautions
- Do not use in environments exceeding 80°C to prevent deformation
- Avoid dust, water droplets, and insect entry to maintain lifespan
- Do not lock the fan blades for extended periods while powered
- Sleeve bearing models should be used within 6 months of storage
- Maximum screw torque for housing should not exceed 4Kgf
Warranty Period
- Ball Bearing Fans: 2 Years
- Sleeve Bearing Fans: 1 Year
