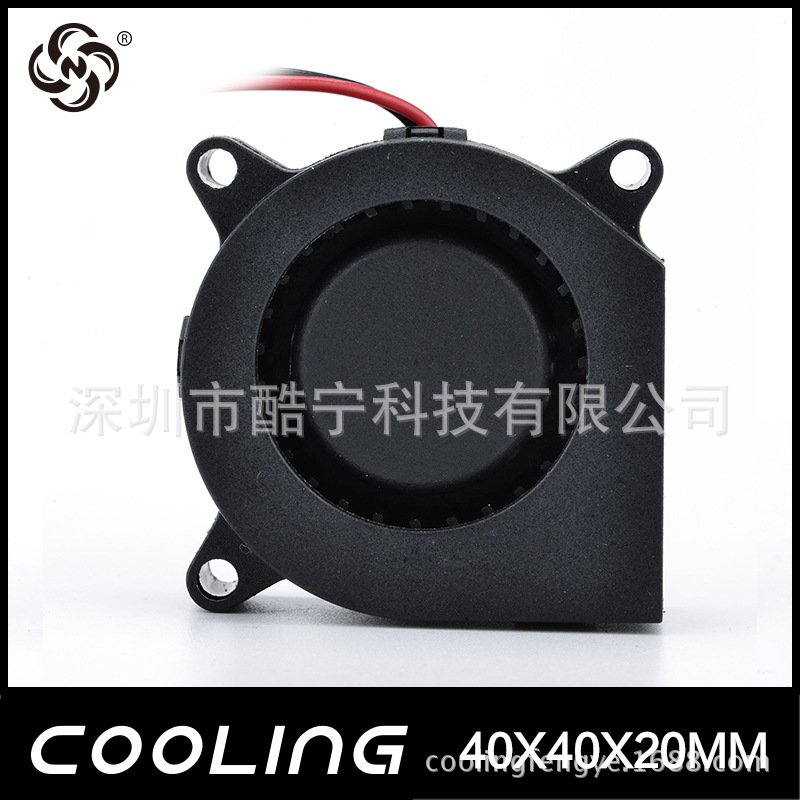

220V AC Cooling Fan 40x40x20mm
This AC cooling fan operates at 220V and measures 40x40x20mm. It provides efficient airflow for heat dissipation in electronic devices and machinery.
Technical Specifications
Product Overview
High-Efficiency 220V AC Cooling Fan
This compact 40x40x20mm cooling fan is engineered for professional thermal management in electronic and industrial equipment. Featuring a durable die-cast aluminum housing and a UL 94V-0 rated glass fiber reinforced impeller, it ensures reliable performance even in demanding environments. With high-temperature copper windings and versatile connection options, it is an ideal solution for power supplies, compressors, and space-constrained enclosures.
Technical Specifications
Dimensions
40 mm
Width
40 mm
Height
20 mm
Depth
- Input Voltage
- 220 V AC
- Insulation Impedance
- 500 MΩ
- Resist Strength
- 2200 V/S

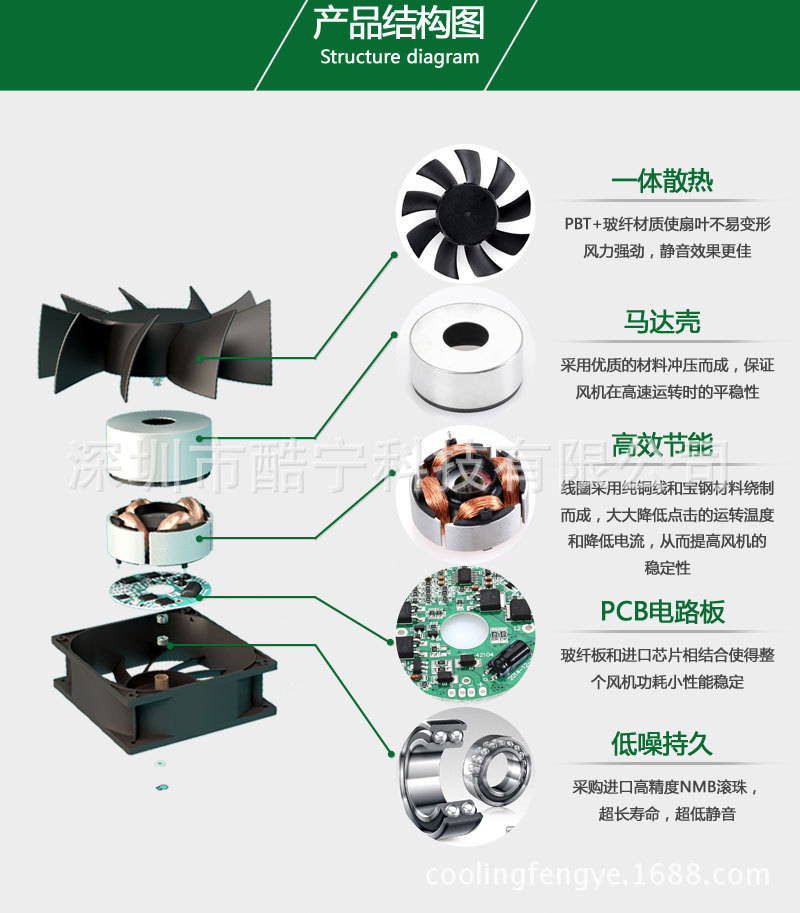

Construction & Materials
- Housing Material
- Die-cast aluminum
- Impeller Material
- Glass fiber reinforced plastic (UL 94V-0 rating)
- Winding Material
- High-temperature pure copper line

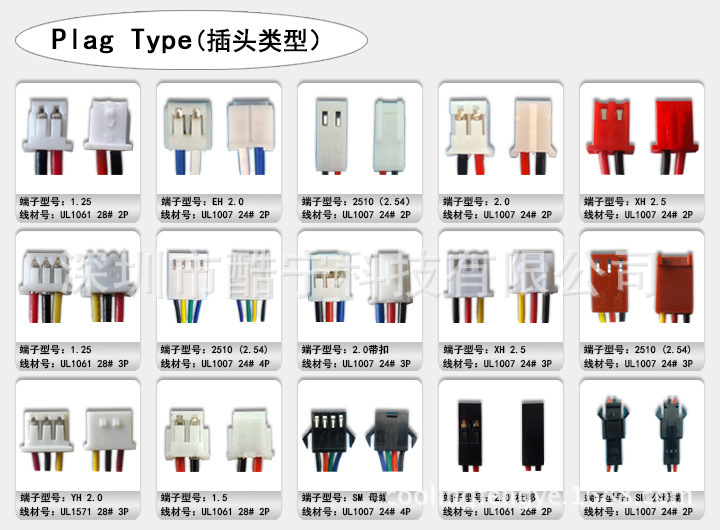

- Connection Types
- Leader WireTerminal
Performance & Reliability

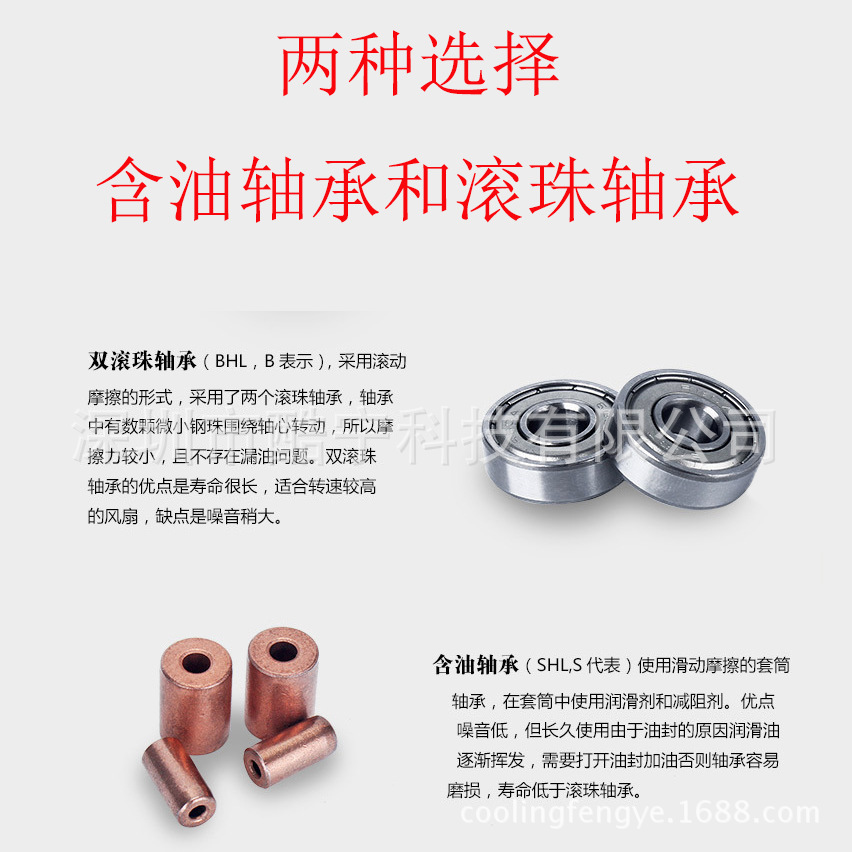

Bearing Systems
- Double Ball Bearing (Long life, high speed)
- Sleeve Bearing (Low noise, cost-effective)
Warranty Period
| Bearing Type | Warranty Duration |
|---|---|
| Sleeve Bearing | 1 Year |
| Ball Bearing | 2 Years |
Usage Guidelines
Operating Constraints
- Maximum operating temperature: 80°C
- Avoid environments with combustible gases
- Do not pull power lines or press blades during operation
- Ensure dust and water droplets do not enter the mechanism
