220V AC Cooling Fan 40x40x10mm
This 220V AC fan provides cooling for electronic components. Its compact 40x40x10mm size makes it suitable for applications with limited space.
Technical Specifications
Product Overview
High-Performance 40mm AC Cooling Fan
This compact 220V AC cooling fan is engineered for efficient thermal management in tight spaces, featuring a 40x40x10mm form factor. Constructed with a durable die-cast aluminum housing and glass fiber reinforced plastic impellers (UL 94V-0 rated), it ensures reliable airflow for industrial machinery and electronic components. Its high-temperature copper line and superior insulation make it an ideal choice for demanding B2B applications requiring long-term stability.
Technical Specifications
Input Voltage
220 V
Rated Voltage
- Dimensions
- 40 x 40 x 10 mm
- Insulation Impedance
- 500 MΩ
- Resist Strength
- 2200V/S

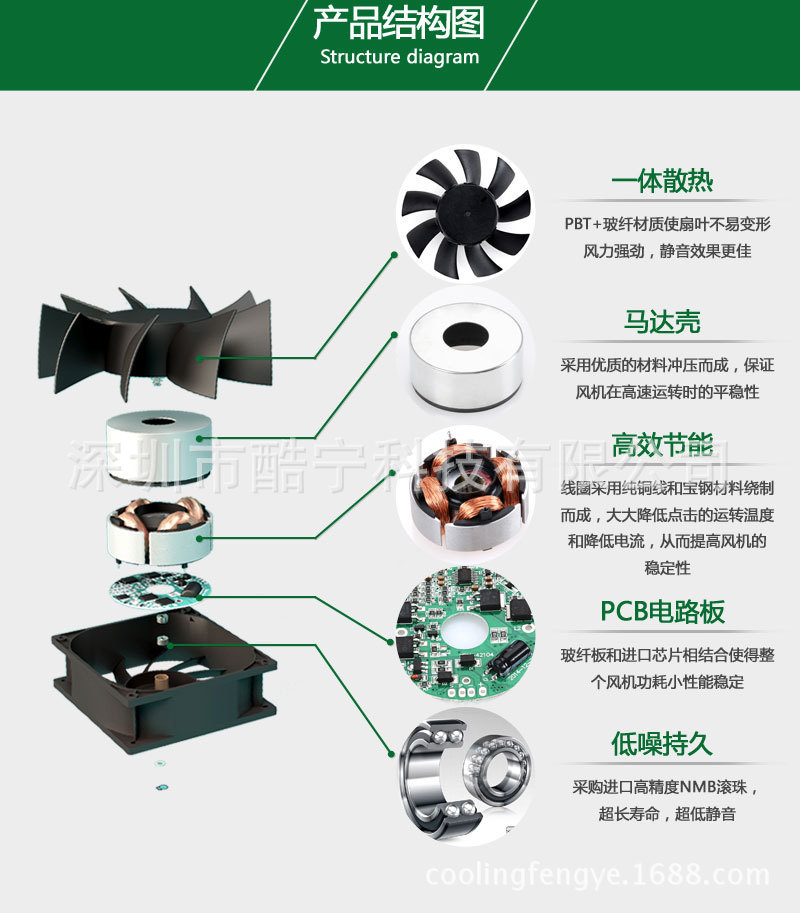

Construction & Materials
- Housing Material
- Die-cast aluminum
- Impeller Material
- Glass fiber reinforced plastic (UL 94V-0)
- Coil Material
- Pure copper wire

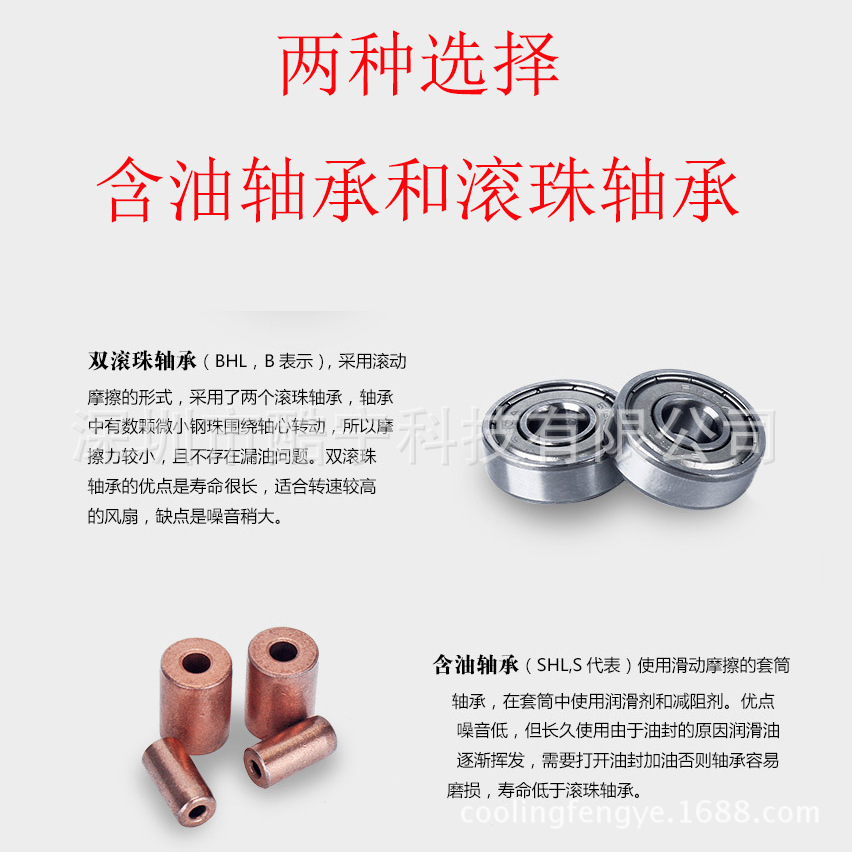

- Available Bearing Types
- Double Ball BearingOil-Impregnated Sleeve Bearing
Mounting & Connectivity

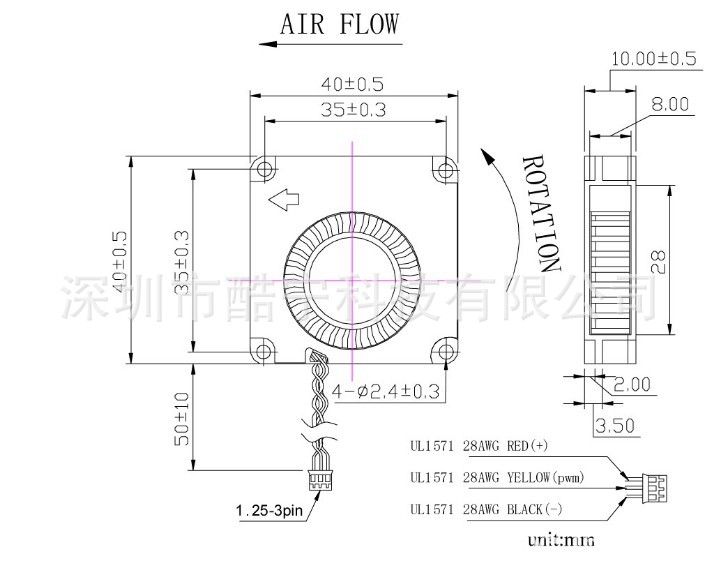

Mounting Hole Dimensions
| Parameter | Measurement |
|---|---|
| Parallel Hole Distance | 32 mm |
| Diagonal Hole Distance | 45 mm |
| Hole Diameter | 2.4 ± 0.3 mm |

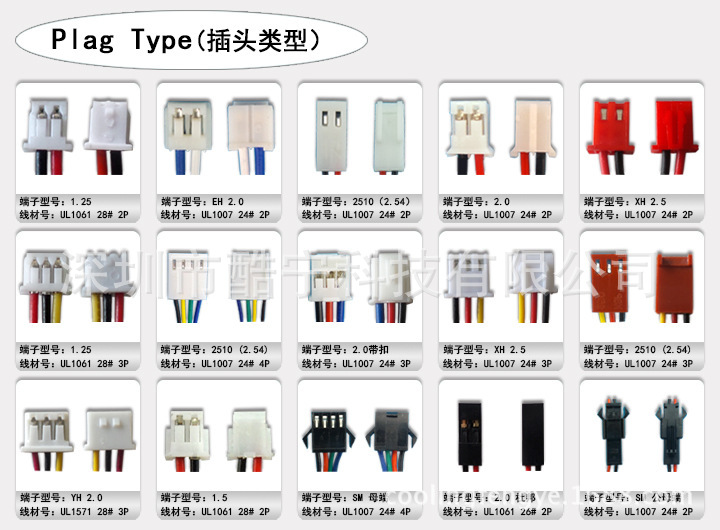

Connection Interface
- Leader wire
- Terminal connector
Performance & Reliability
Warranty Period
| Bearing Type | Warranty Duration |
|---|---|
| Ball Bearing | 2 Years |
| Oil-Impregnated Bearing | 1 Year |
Safety & Compliance
UL 94V-0RoHS CompliantHigh-Temperature Resistant
