Technical Specifications
Product Overview

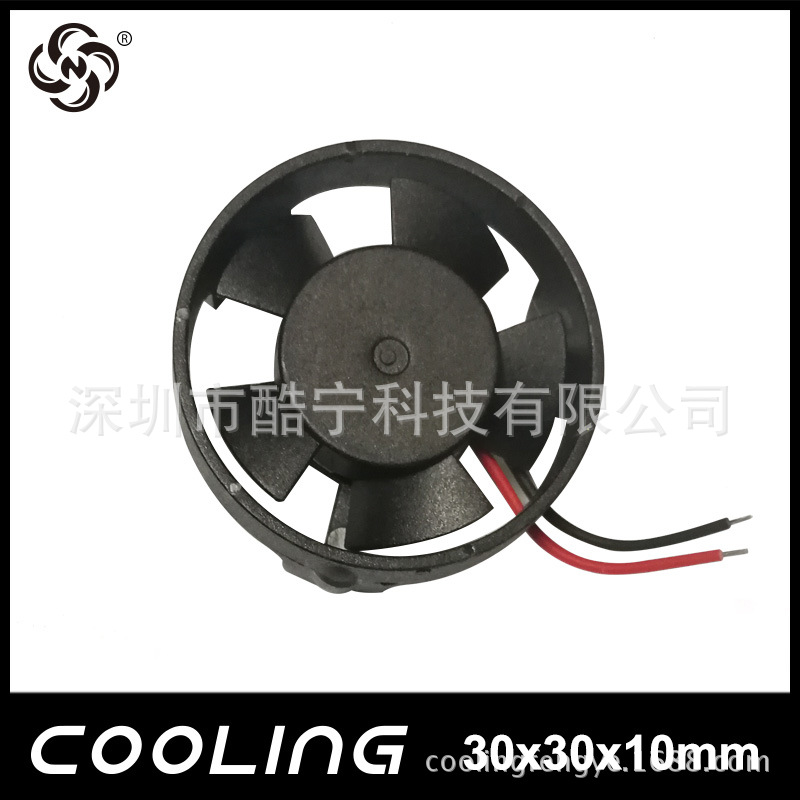

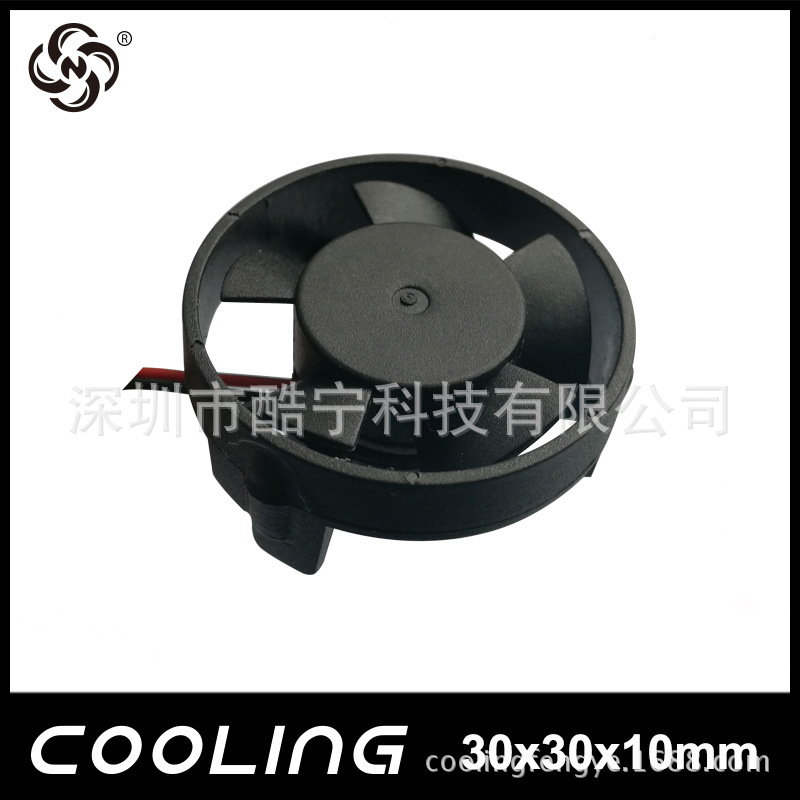

Compact High-Performance AC Cooling Fan
This 30x30x10mm AC cooling fan is engineered for efficient thermal management in space-constrained industrial and electronic applications. Featuring a durable die-cast aluminum housing and a UL 94V-0 rated glass fiber reinforced plastic impeller, it ensures reliable performance and safety. It is an ideal solution for heat dissipation in compressors, humidifiers, and specialized machinery requiring a compact 220V power interface.
Technical Specifications
- Rated Voltage
- 220 V
- Dimensions
- 30 x 30 x 10 mm
- Insulation Impedance
- 500 MΩ
- Resist Strength
- 2200V/S
Construction & Materials
- Housing Material
- Die-cast aluminum
- Impeller Material
- Glass fiber reinforced plastic (UL 94V-0)
- Coil Construction
- High-temperature pure copper line
Performance Metrics
Key Performance Data
13,000 RPM
Max Speed
4.25 CFM
Max Air Flow
34.9 dB-A
Max Noise
Installation & Connectivity
Mounting Dimensions
- Mounting hole diameter: 3 ± 0.2mm
- Hole distance: 24.2 ± 0.3mm
- Wire length: 200 ± 10mm

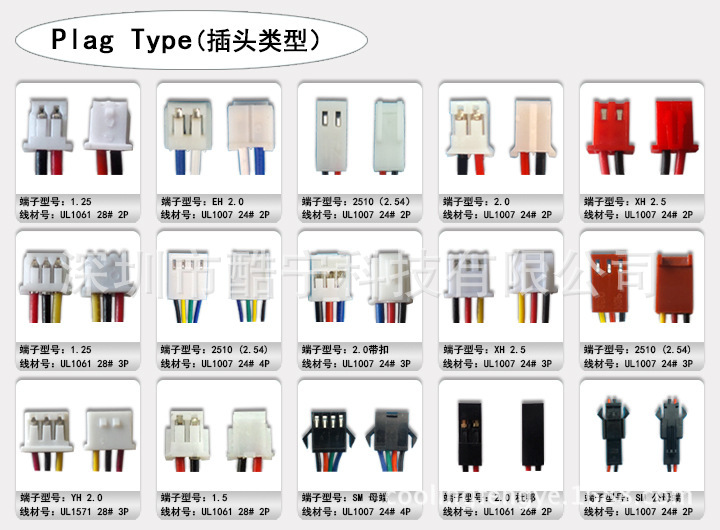

- Connection Options
- Leader WireTerminal Connector
Bearing Options
Bearing Type Availability
| Bearing Type | Lifespan | Noise Level | Warranty |
|---|---|---|---|

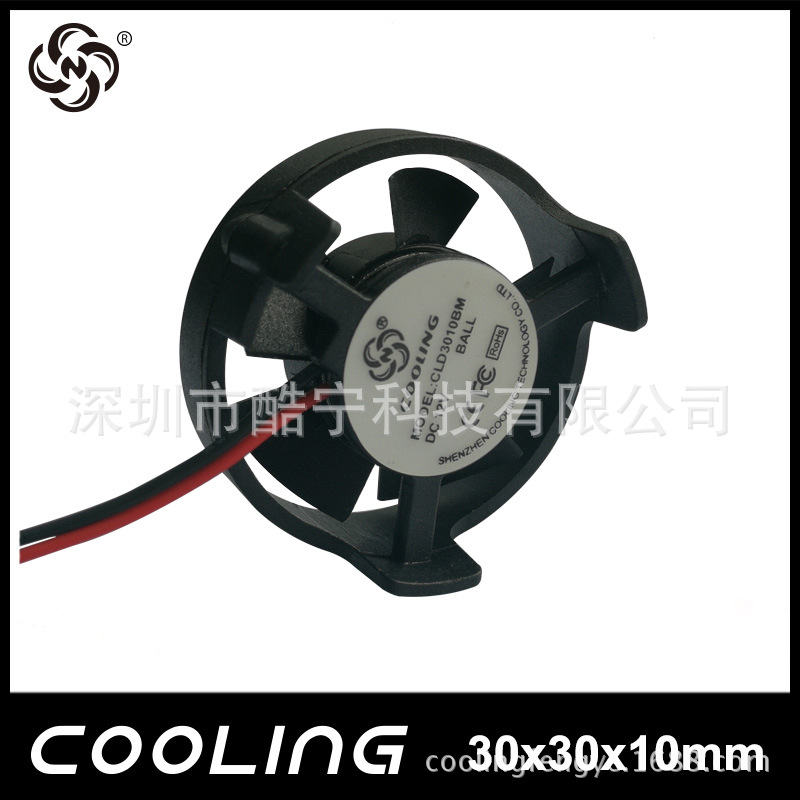

| Ball Bearing | Long (High Speed) | Slightly Higher | 2 Years |
| Sleeve (Oil) Bearing | Standard | Low | 1 Year |
Usage Precautions
Operational Safety
- Do not exceed 80°C operating environment
- Avoid dust, water droplets, and insect entry
- Do not pull power cords or press blades
- Avoid use in flammable or hazardous gases
- Do not lock rotor while powered to prevent burnout
