220V AC Cooling Fan 172x172x51mm
This AC cooling fan operates at 220V and measures 172x172x51mm. It is designed for efficient heat dissipation in various applications.
Technical Specifications
Overview
High-Performance Industrial Cooling
This 220V AC cooling fan is engineered for demanding industrial applications, featuring a robust die-cast aluminum housing and glass fiber reinforced plastic impellers. Designed for efficient heat dissipation in compressors and large-scale instruments, it offers high insulation impedance and superior resistance strength. With options for both ball and sleeve bearings, it provides a reliable solution for maintaining optimal operating temperatures in professional equipment.
Physical Dimensions
Dimensions
172 mm
Width
172 mm
Height
51 mm
Depth
Technical Specifications
- Rated Voltage
- 220 V
- Insulation Impedance
- 500 MΩ
- Resist Strength
- 2200V/S

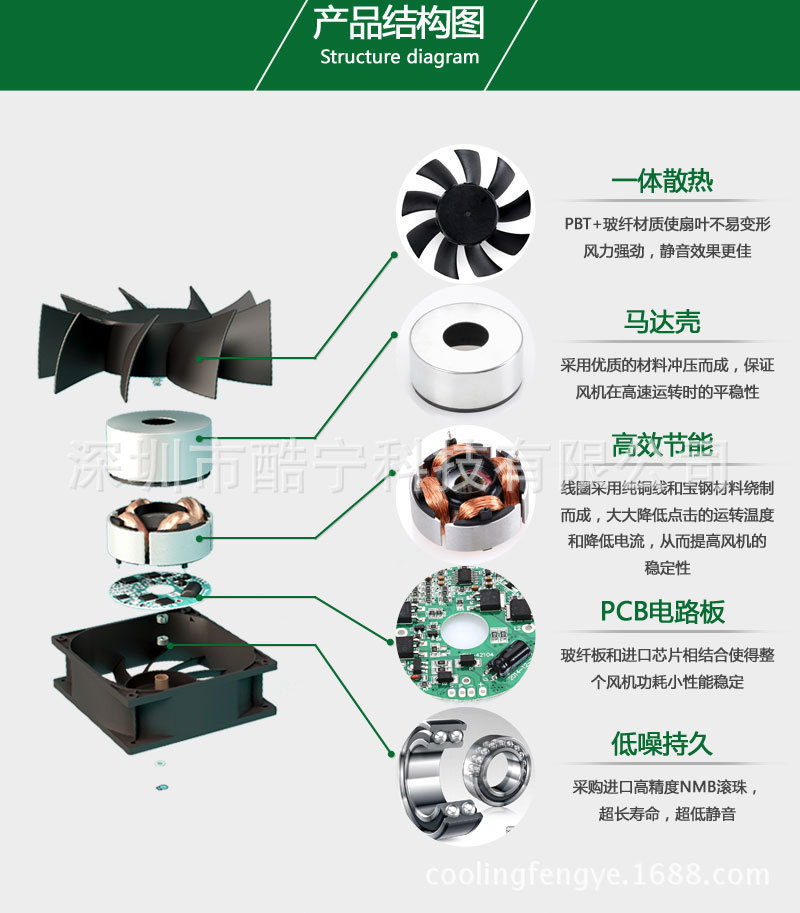

Material & Construction
- Housing Material
- Die-cast aluminum
- Impeller Material
- Glass fiber reinforced plastic (UL 94V-0 rating)
- Wiring
- High-temperature copper line

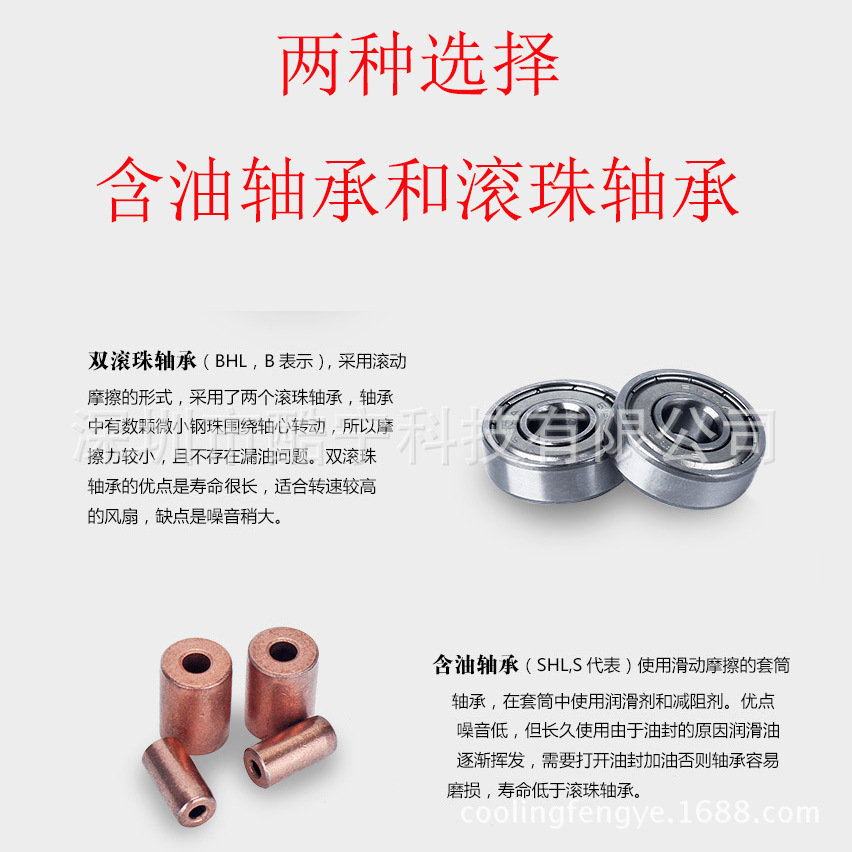

- Bearing Types Available
- Ball BearingOil-Impregnated Sleeve Bearing
Connectivity

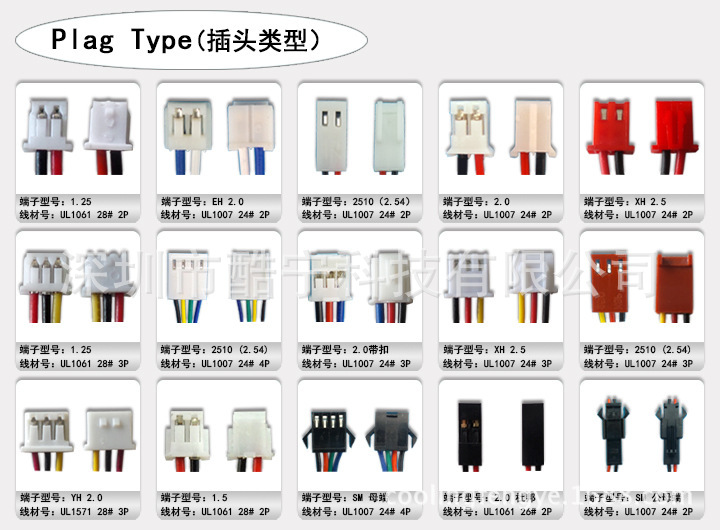

Interface Options
- Leader wire
- Terminal connector
Performance Data
DC Variant Reference Chart
| Voltage (V) | Current (A) | Speed (RPM) | Air Flow (CFM) | Noise (dB-A) |
|---|---|---|---|---|
| 12 | 0.8 | 2,500 | 172.21 | 56.1 |
| 12 | 2.4 | 3,000 | 209.4 | 58.3 |
| 24 | 0.4 | 2,500 | 172.2 | 56.1 |
| 24 | 1.2 | 3,000 | 209.4 | 58.3 |
| 48 | 0.2 | 2,500 | 172.21 | 56.1 |
| 48 | 0.6 | 3,000 | 209.4 | 58.3 |
Quality & Warranty
Warranty Period
- Ball Bearing: 2 Years
- Sleeve Bearing: 1 Year
Installation Guidelines
Usage Precautions
- Do not exceed 80°C operating environment
- Avoid dust, water, and insect ingress
- Ensure screw torque does not exceed 4Kgf
- Do not pull power lines or press blades during operation
- Avoid dropping from heights over 60cm to protect bearing balance
