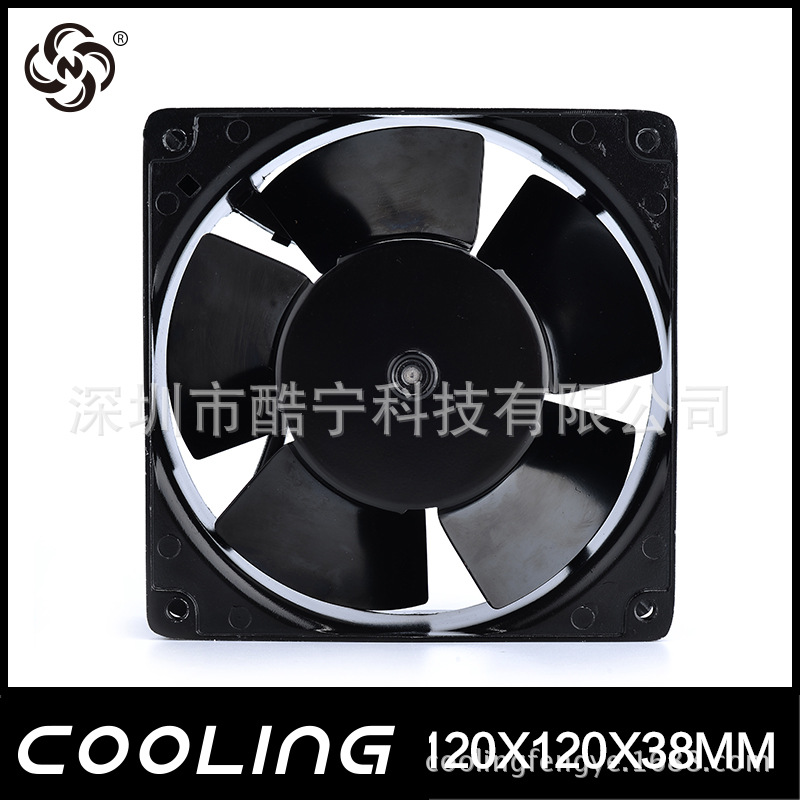

220V AC Cooling Fan, 120x120x38mm
This 220V AC fan provides cooling for various applications. Its 120x120x38mm size makes it suitable for machinery and electronics.
Technical Specifications
Overview
High-Performance Industrial Cooling

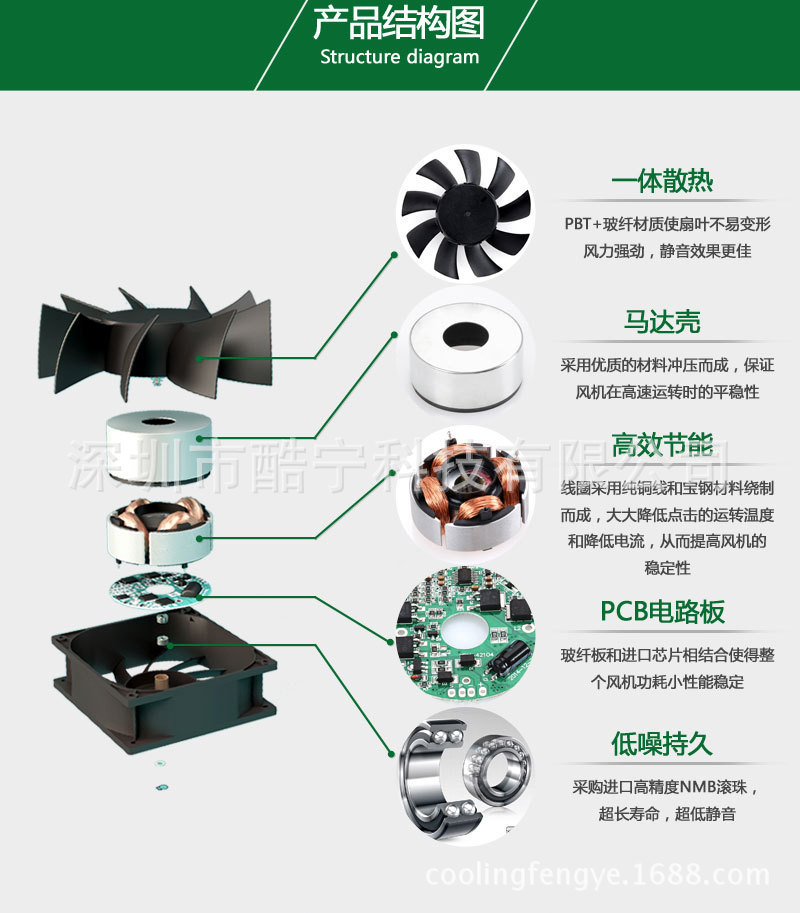

This 220V AC cooling fan is engineered for demanding industrial applications, featuring a robust die-cast aluminum housing and glass fiber reinforced plastic impellers. Designed for optimal thermal management in chassis, cabinets, and compressors, it offers high-temperature resistance and reliable insulation. With options for both ball and sleeve bearings, this 120x120x38mm fan provides a versatile solution for maintaining stable operating temperatures in professional equipment.
Technical Specifications
Dimensions
120 mm
Width
120 mm
Height
38 mm
Depth
- Operating Voltage
- 220 V
Construction & Materials
- Housing Material
- Die-cast aluminum
- Impeller Material
- Glass fiber reinforced plastic (UL 94V-0 rating)
- Internal Wiring
- High-temperature copper line
Electrical Safety
- Insulation Impedance
- 500 MΩ
- Resist Strength
- 2200V/S
Configuration Options
Available Bearing Systems
| Bearing Type | Pros | Warranty |
|---|---|---|
| Double Ball Bearing | Long life, high speed, no oil leakage | 2 Years |
| Oil-Impregnated (Sleeve) | Low noise, cost-effective | 1 Year |

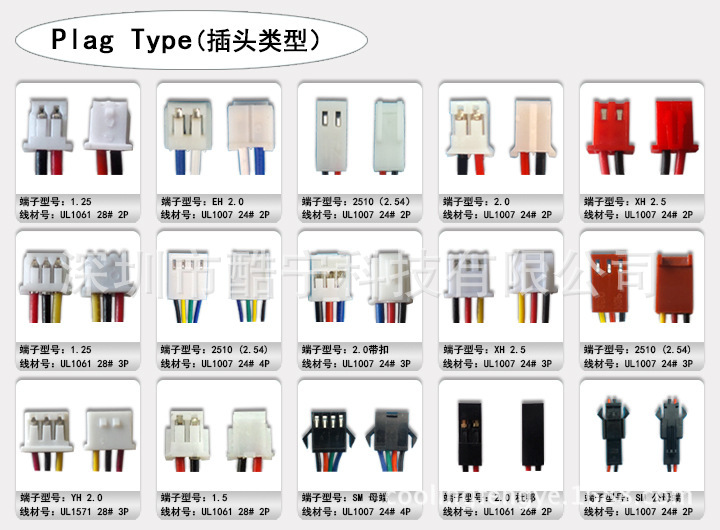

- Connection Type
- Leader WireTerminal
Installation Guide

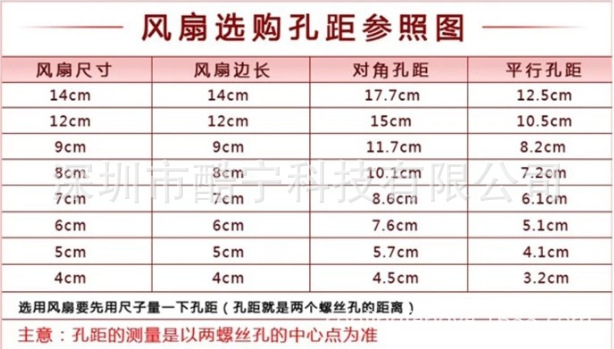

Standard Mounting Hole Distances
| Fan Size | Parallel Hole Distance | Diagonal Hole Distance |
|---|---|---|
| 12cm | 10.5cm | 15cm |
| 9cm | 8.2cm | 11.7cm |
| 8cm | 7.2cm | 10.1cm |
Usage Precautions
Operational Safety
- Do not press blades or pull power cords forcefully
- Avoid dust, water droplets, and insects entering the unit
- Do not use in flammable or harmful gas environments
- Maximum operating temperature: 80°C
- Avoid locking the fan while powered to prevent overheating
- Handle with care; drops from 60cm+ can affect blade balance
