Technical Specifications
Overview
Industrial-Grade 220V AC Cooling Solution
This 120x120x38mm AC cooling fan is engineered for high-performance thermal management in demanding B2B environments such as industrial machinery, power supplies, and compressors. Featuring a rugged die-cast aluminum housing and UL 94V-0 rated fiberglass reinforced impellers, it ensures reliable heat dissipation and long-term stability. The fan's high-temperature copper line construction and superior insulation properties make it an ideal choice for professionals seeking efficient and durable cooling components.
Technical Specifications
Dimensions
120 mm
Width
120 mm
Height
38 mm
Thickness
- Rated Voltage
- 220 V
- Insulation Impedance
- 500 MΩ
- Resist Strength
- 2200V/S
Construction Materials
Flame Retardancy
UL 94V-0

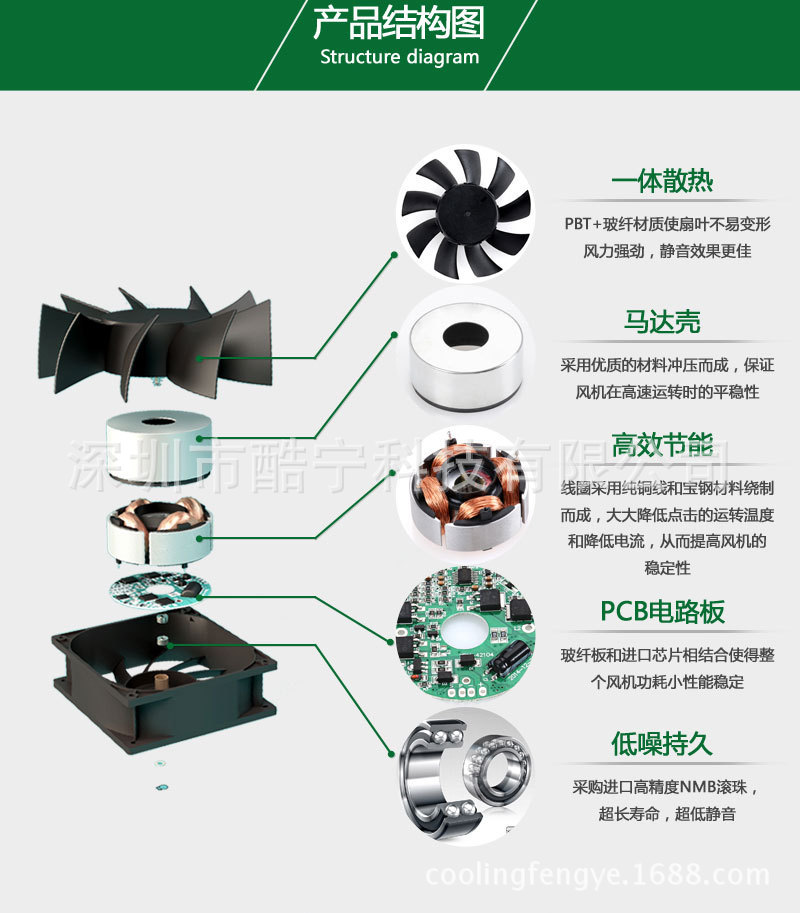

Internal Components
- High-temperature copper line
- Pure copper wire winding
- Fiberglass PCB board
- High-precision NMB bearings
- Housing Material
- Die-cast aluminum
- Impeller Material
- Glass fiber reinforced plastic
Options & Customization

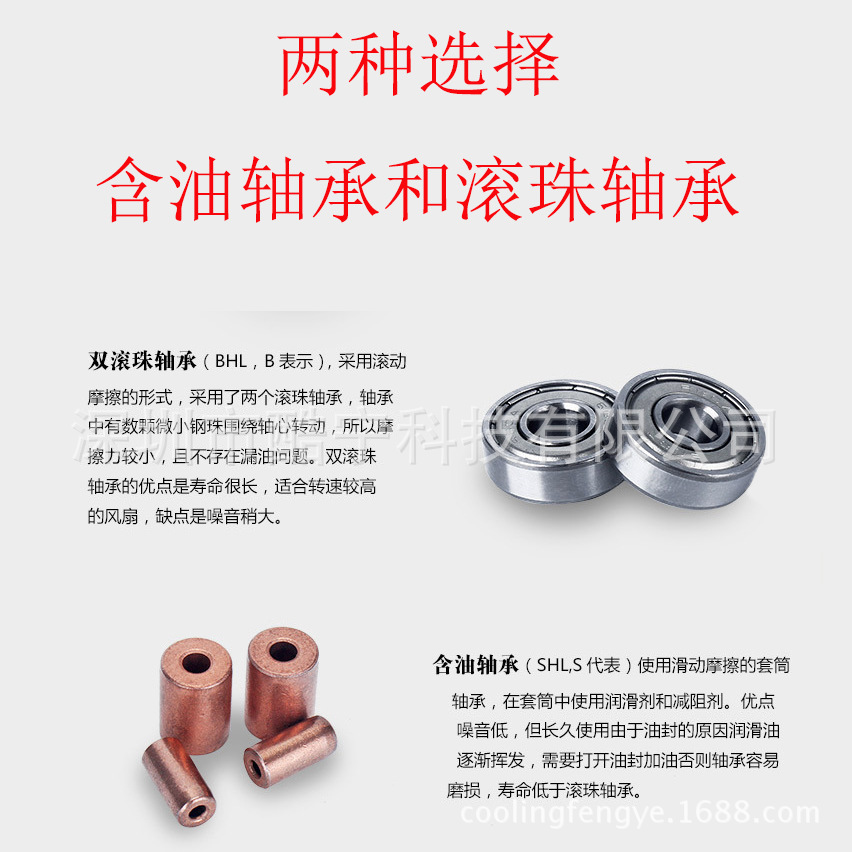

Bearing Options
| Bearing Type | Warranty | Key Feature |
|---|---|---|
| Sleeve (Oil) Bearing | 1 Year | Lower initial noise, cost-effective |
| Ball Bearing | 2 Years | Longer lifespan, high-speed stability |

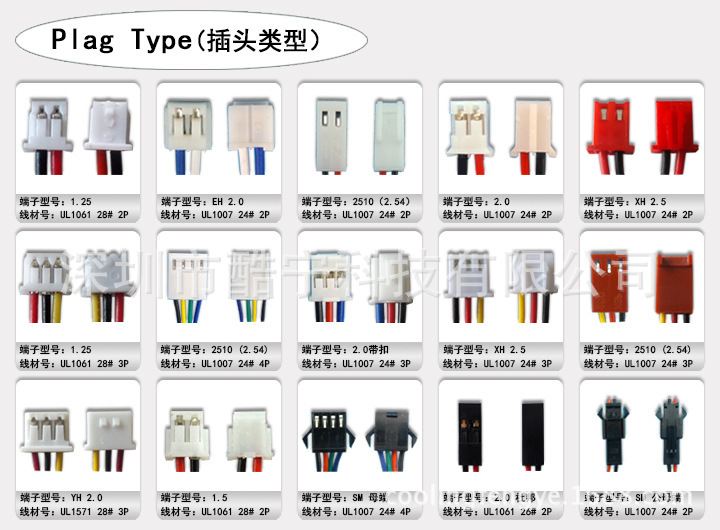

- Connection Options
- Leader WireTerminal
Usage Guidelines
Safety & Maintenance
- Do not pull the power cord or press the blades
- Avoid use in environments with high dust or water droplets
- Operating temperature limit: 80°C
- Maximum screw torque: 4Kgf
- Avoid locking the fan while powered to prevent burnout
