220V AC Cooling Fan 120x120x38mm
This AC cooling fan operates at 220V and measures 120x120x38mm. It is designed with a die-cast aluminum housing and a glass fiber reinforced plastic impeller.
Technical Specifications
Overview
High-Performance Industrial Cooling
This 220V AC cooling fan is engineered for efficient heat dissipation in demanding environments like mining machines and industrial cabinets. Featuring a robust die-cast aluminum housing and glass fiber reinforced plastic impellers, it ensures reliable operation and long-term durability. With high-temperature copper wiring and professional-grade insulation, this fan is a high-performance solution for maintaining optimal system temperatures.
Technical Performance
Key Performance Metrics
220 V
Input Voltage
6,000 RPM
Max Speed
500 MΩ
Insulation Impedance
Physical Construction
Dimensions
| Parameter | Measurement |
|---|---|
| Frame Size | 120 x 120 mm |
| Thickness | 38 mm |
| Parallel Hole Distance | 10.5 cm |
| Diagonal Hole Distance | 15 cm |

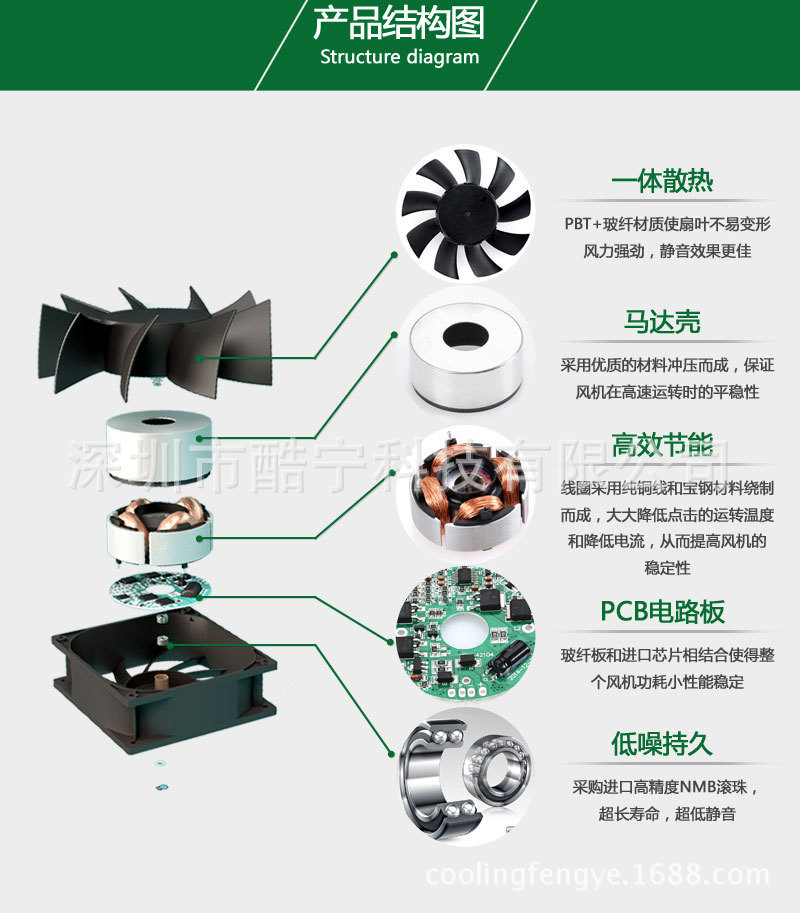

Material Specifications
- Housing: Die-cast aluminum
- Impeller: Glass fiber reinforced plastic (UL 94V-0 rated)
- Wiring: High-temperature copper line
- Circuit Board: Fiberglass board with integrated chips
Electrical Safety
Safety & Electrical
- Resistance Strength: 2200V/S

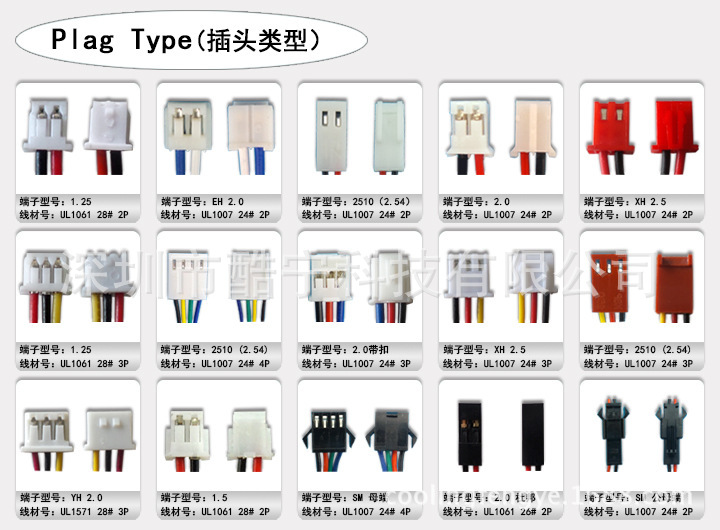

- Available Connections: Leader wire or terminal
- Flame Retardancy: UL 94V-0 rating
- Certifications
- CERoHSFCUL 94V-0

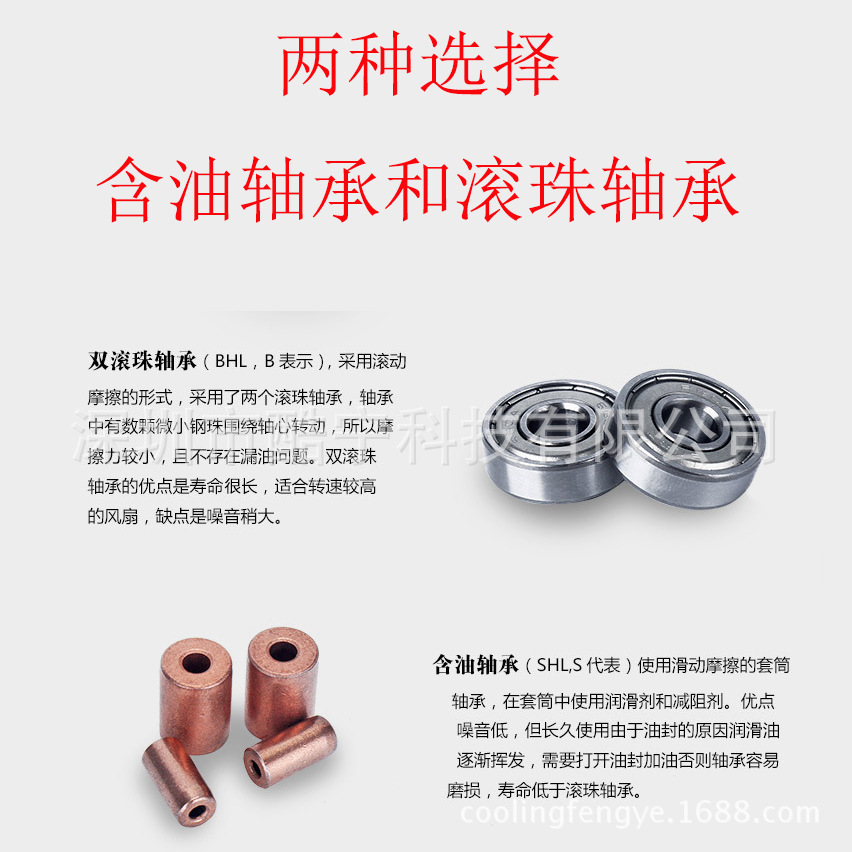

Bearing Options
Available Bearing Systems
| Bearing Type | Pros | Warranty |
|---|---|---|
| Double Ball Bearing | Long lifespan, high-speed stability, no leakage | 2 Years |
| Oil-Impregnated Bearing | Low noise, cost-effective | 1 Year |
Usage Guidelines
Operating Precautions
- Maximum operating temperature: 80°C
- Avoid dust, water droplets, and insect entry
- Do not use in flammable or harmful gas environments
- Do not lock blades for extended periods to prevent burn-out
- Maximum screw torque: 4Kgf
