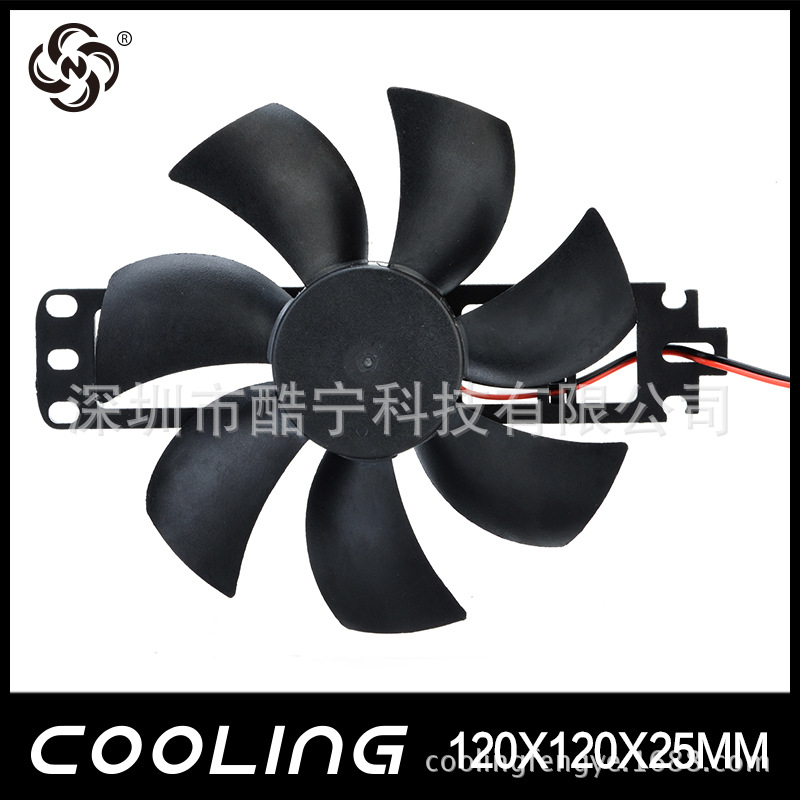

220V AC Cooling Fan 120x120x25mm
This AC cooling fan operates at 220V and has dimensions of 120mm x 120mm x 25mm. It is designed with a die-cast aluminum housing and a glass fiber reinforced plastic impeller.
Technical Specifications
Product Overview
Industrial-Grade AC Cooling Solution
This 220V AC cooling fan is engineered for high-performance thermal management in demanding environments like industrial machinery and power supplies. Featuring a robust die-cast aluminum housing and UL 94V-0 rated glass fiber reinforced plastic impellers, it ensures durability and safety. With options for both lead wires and terminals, it offers versatile integration for professional B2B applications.
Technical Performance
Performance Metrics
Physical Construction
Dimensions
| Dimension | Value |
|---|---|
| Length | 120mm |
| Width | 120mm |
| Thickness | 25mm |

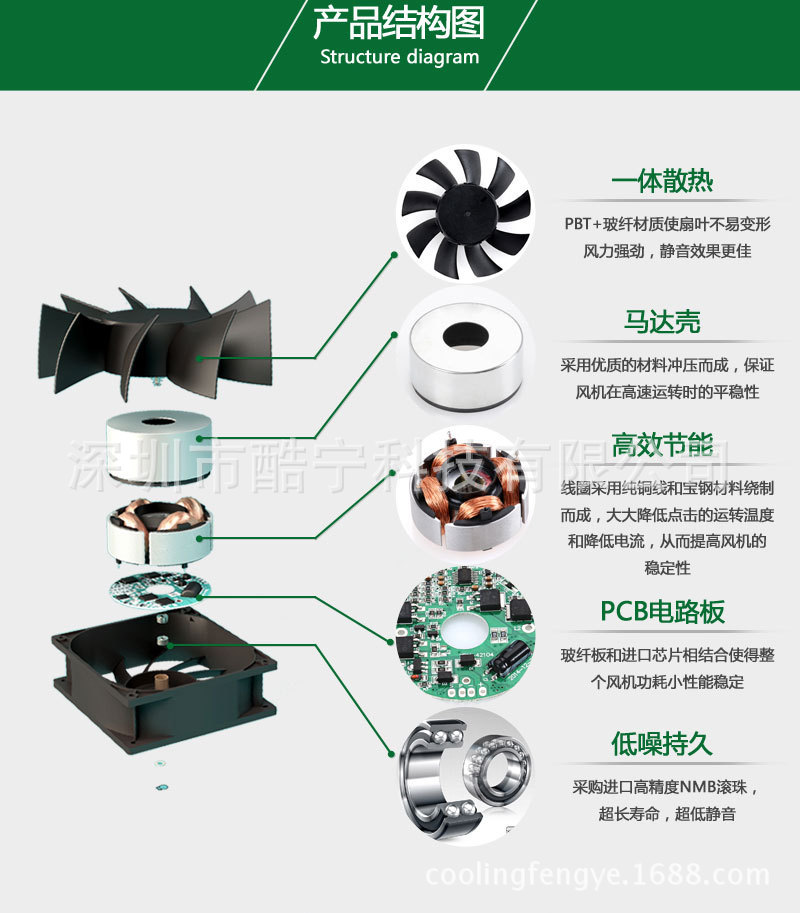

Materials & Build
- Die-cast aluminum housing
- Glass fiber reinforced plastic impeller (UL 94V-0)
- High-temperature copper line motor winding
- Pure copper wire and Baosteel material coil

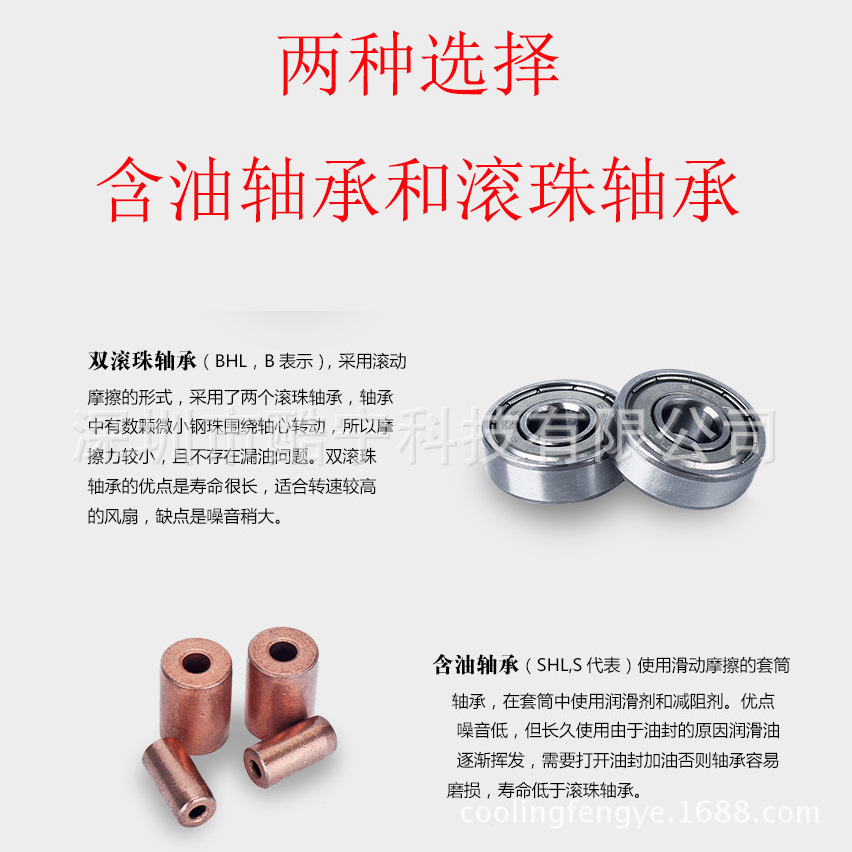

Bearing Options
Available Bearing Systems
| Bearing Type | Warranty | Characteristics |
|---|---|---|
| Ball Bearing | 2 Years | Long lifespan, high-speed stability, no leakage |
| Sleeve (Oil) Bearing | 1 Year | Low noise, cost-effective, requires maintenance |
Installation & Connectivity

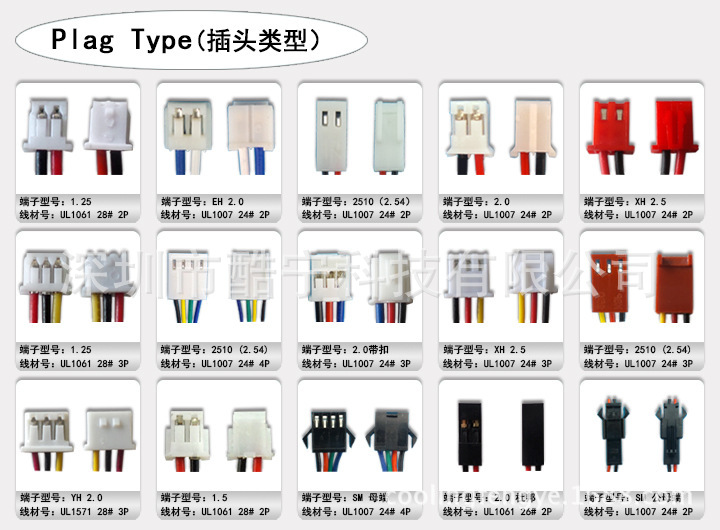

- Connection Types
- Leader WireTerminal2P/3P/4P Connectors
Usage Guidelines
Operating Safety
- Maximum operating temperature: 80°C
- Avoid dust, water droplets, and insect ingress
- Do not use in flammable or harmful gas environments
- Ensure screws are tightened to no more than 4Kgf torque
- Avoid dropping from heights over 60cm to maintain blade balance
Selection Guide
Quality Indicators
When selecting a fan, compare the current (lower current indicates lower power loss), noise levels (lower noise suggests better blade design and bearing precision), and vibration (minimal vibration ensures smoother operation and longer bearing life).
