Technical Specifications
Product Overview
High-Efficiency Compact Cooling
This 220V AC compact cooling fan is engineered for precision thermal management in confined industrial and electronic environments. Featuring a durable die-cast aluminum housing and a UL 94V-0 rated fiberglass reinforced plastic impeller, it ensures reliable heat dissipation for sensitive components. Its ultra-slim 6mm profile makes it an ideal choice for specialized applications such as automotive chargers, sensors, and miniature compressors.
Technical Specifications

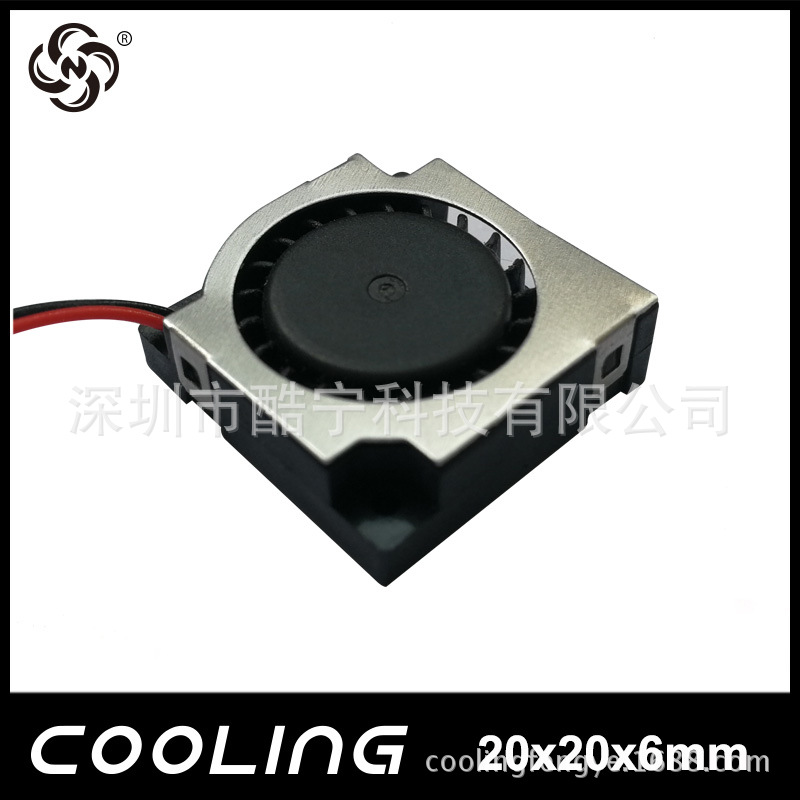

Dimensions
20 mm
Width
20 mm
Height
6 mm
Depth
- Input Voltage
- 220 V
- Insulation Impedance
- 500 MΩ
- Resist Strength
- 2200V/S

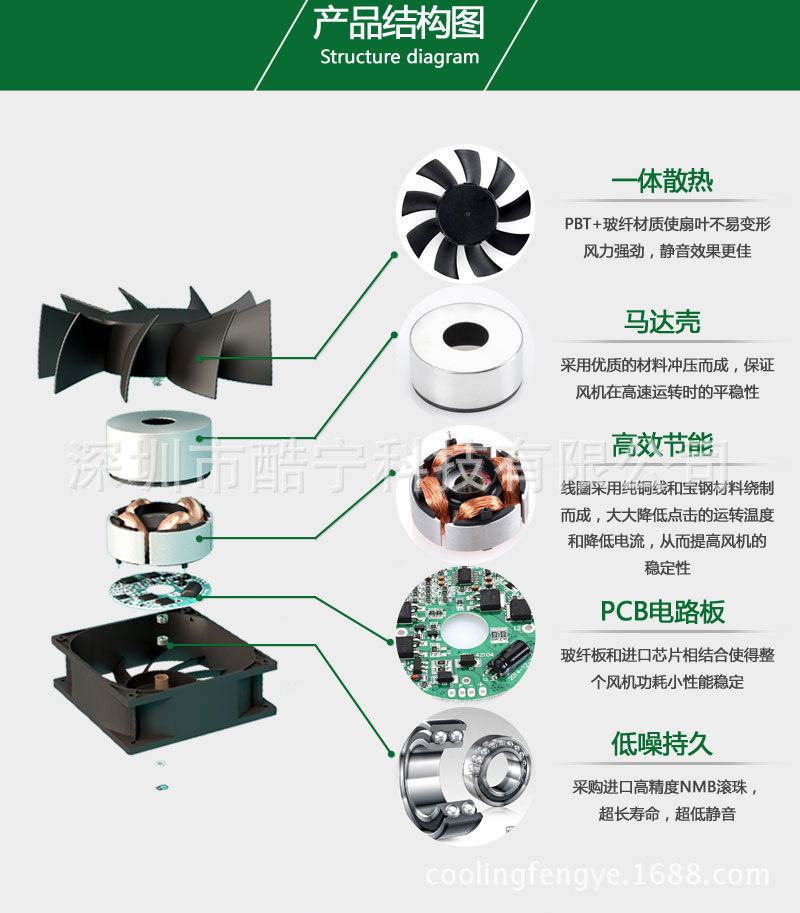

Material & Construction
- Housing Material
- Die-cast aluminum
- Impeller Material
- Glass fiber reinforced plastic (UL 94V-0)
- Coil Material
- High-temperature pure copper line
Options & Customization

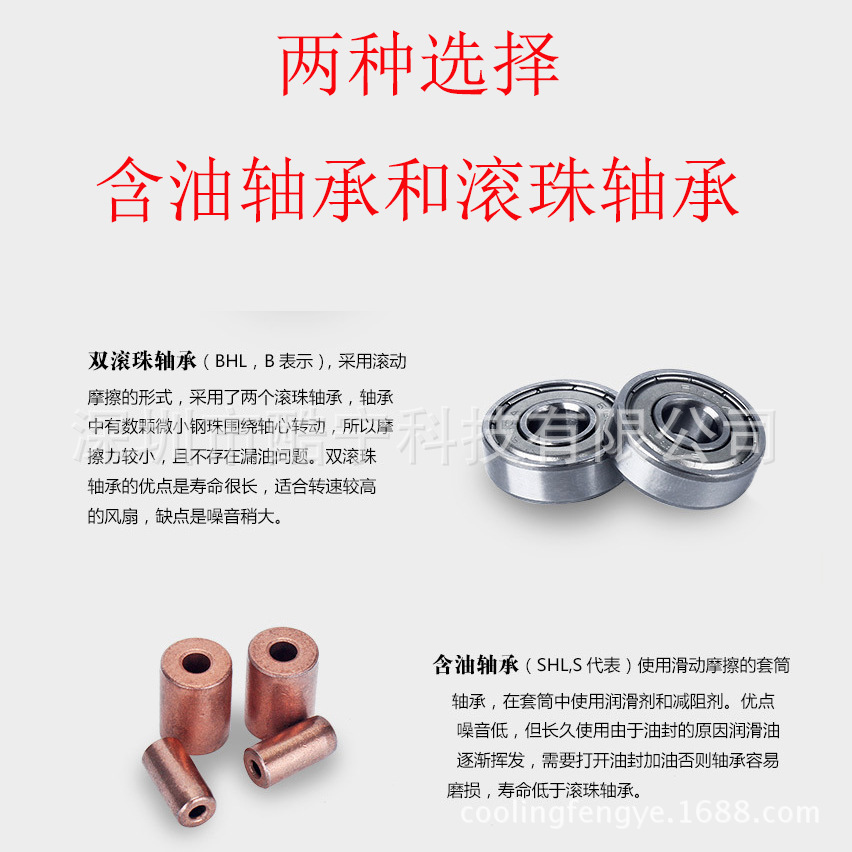

Available Bearing Systems
- Sleeve Bearing (Oil-impregnated)
- Dual Ball Bearing (NMB High-precision)

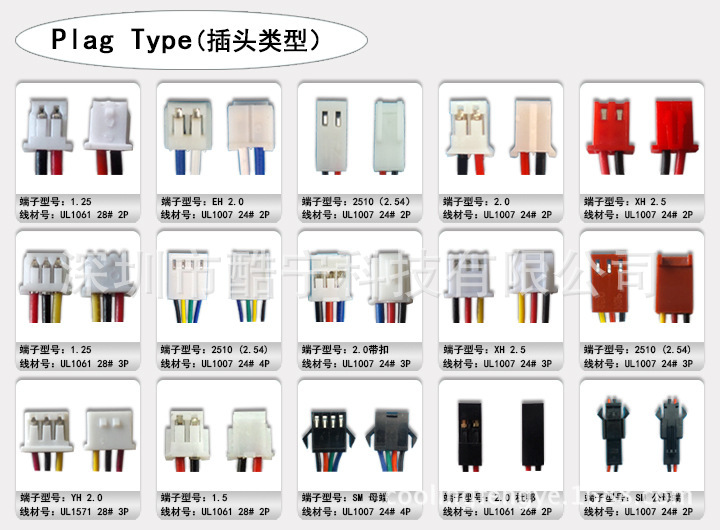

- Connection Options
- Leader WireTerminal ConnectorXH2.5EH 2.02510 (2.54)SMSI
Quality & Compliance

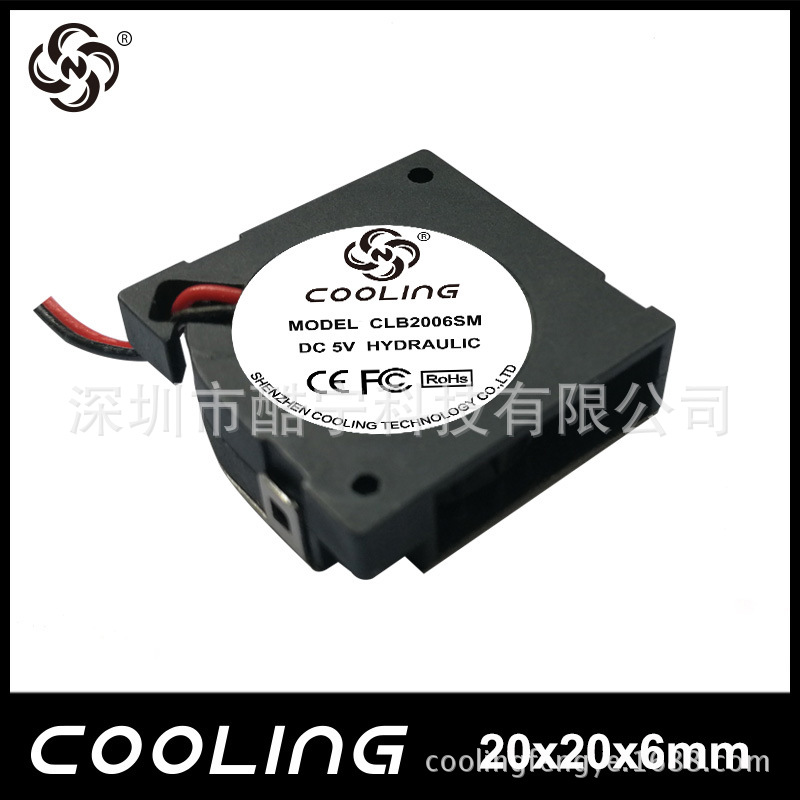

Certifications
CEFCRoHS
After-Sales Policy
Warranty Period
| Bearing Type | Warranty Duration |
|---|---|
| Sleeve Bearing | 1 Year |
| Ball Bearing | 2 Years |
