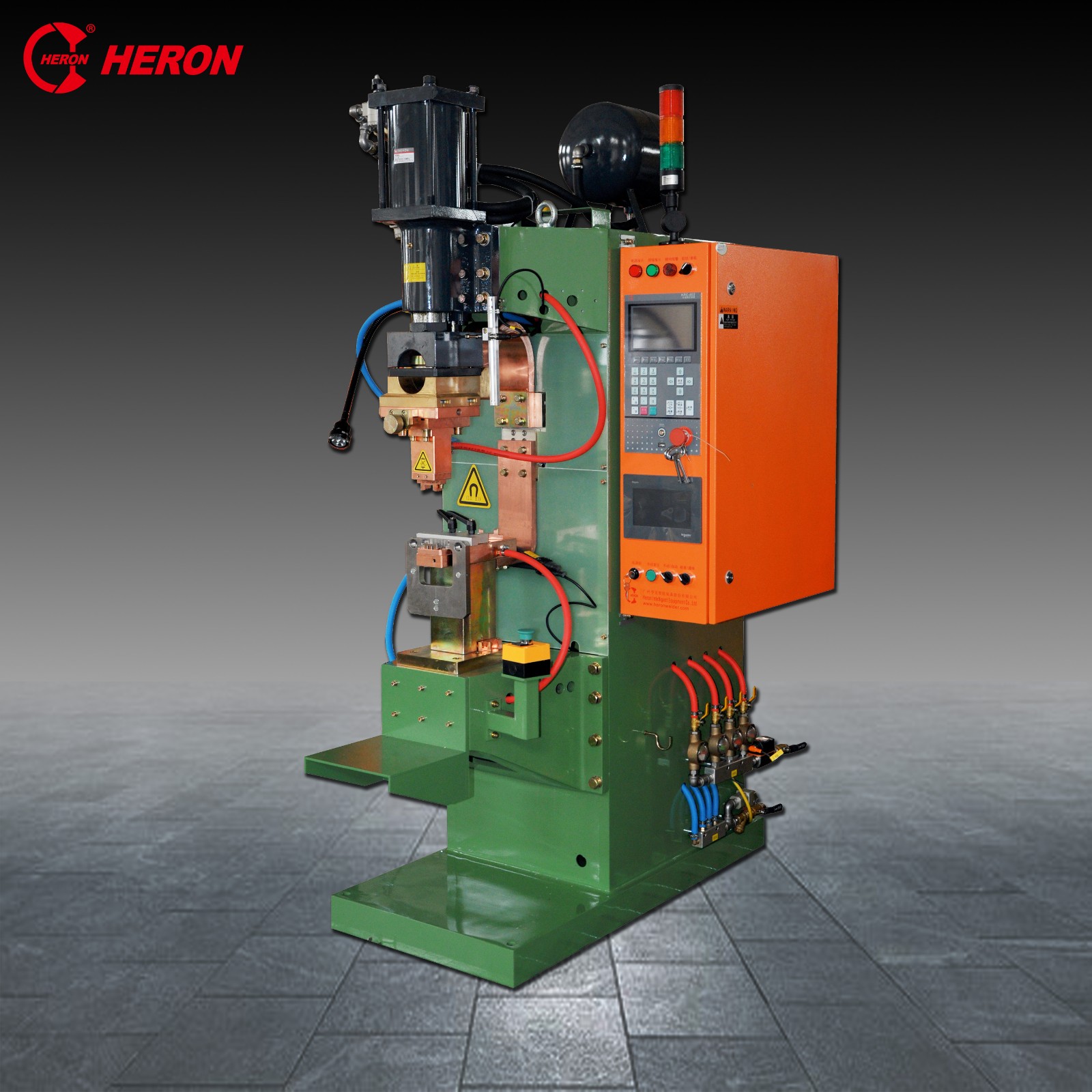

220KVA MFDC Bracket Welding Machine
The 220KVA MFDC welder is specifically designed for bracket welding applications. This welding machine utilizes advanced MFDC technology to provide precise and efficient welding performance.
Technical Specifications
Overview
High-Performance Bracket Welding
This 220KVA Medium Frequency Direct Current (MFDC) welding machine is engineered specifically for demanding bracket welding applications, particularly within the compressor industry. It utilizes advanced MFDC technology to deliver stable, concentrated welding current, ensuring high-quality, consistent welds with minimal spatter. The system features a robust, industrial-grade construction with precision adjustment mechanisms to handle various bracket sizes and materials reliably.
Technical Specifications
Rated Capacity
220 KVA
Rated Capacity
- Power Supply
- 380V/3Φ/50Hz
- Max Primary Current
- 139 A
- Max Short Circuit Current
- 37 KA
- Max Working Pressure
- 18 KN
Physical Dimensions
- Machine Dimensions (LxWxH)
- 1312 x 842 x 2092 mm
Features
Key Features
- Advanced MFDC technology for stable current
- Precision welding head adjustment
- Digital control panel for parameter monitoring
- Integrated emergency stop and safety guards
- Robust industrial frame construction
Application Suitability

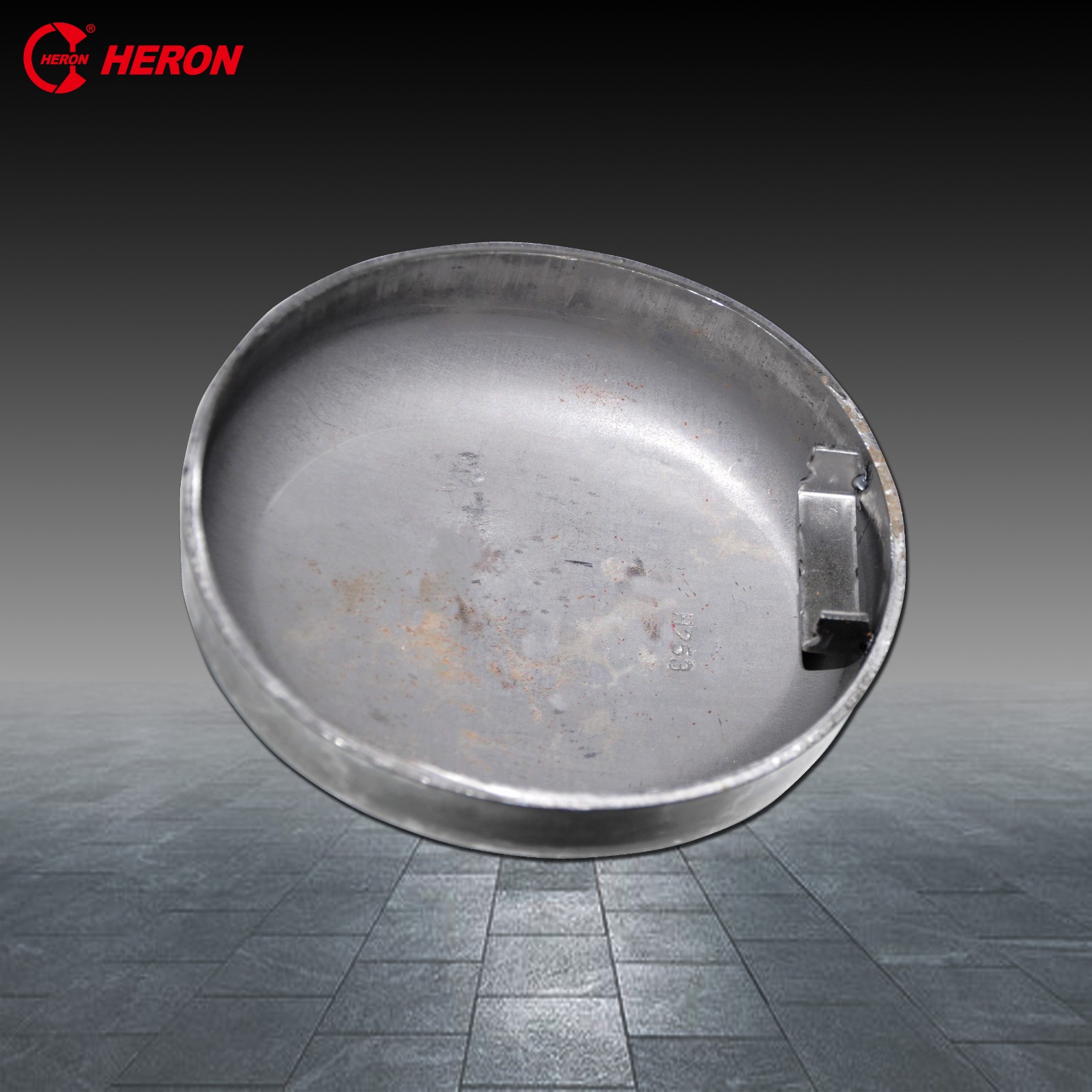

Bracket WeldingCompressor IndustryIndustrial Automation
