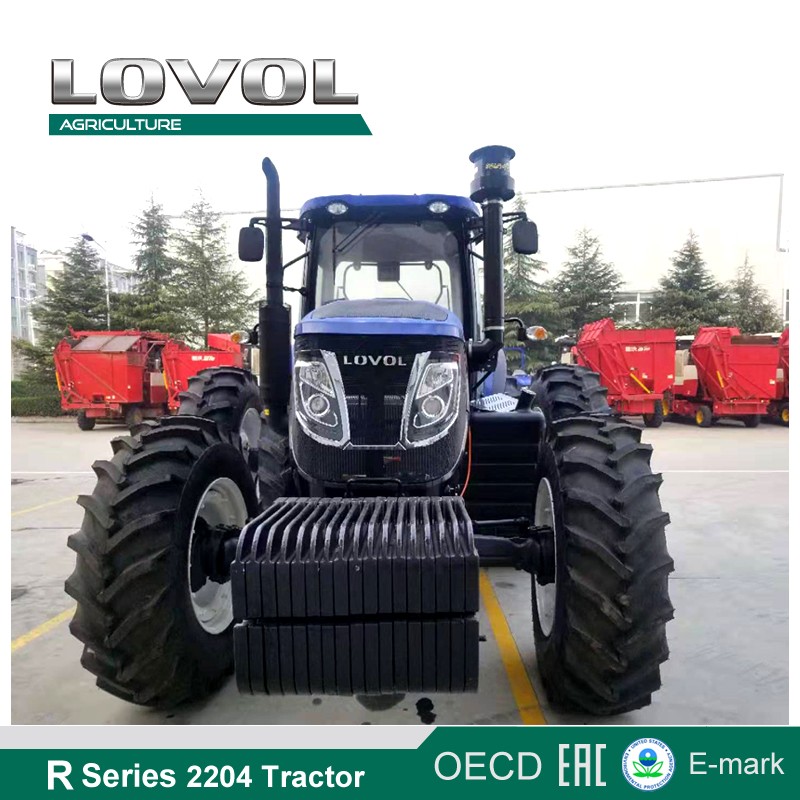

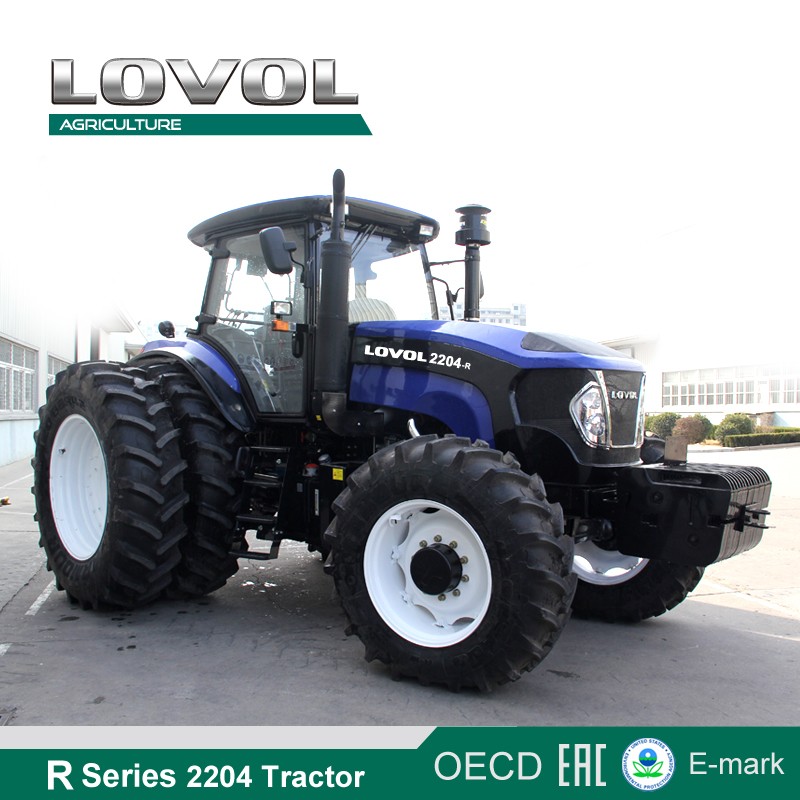

2204 Series Agricultural Wheel Tractor
This four-wheel drive tractor is designed for both dry land and multifunctional applications. It features a synchronized 16F+16R gear for easy shifting and multiple tire options.
Technical Specifications
Overview
High-Performance Agricultural Tractor
This 2204 Series agricultural wheel tractor is designed for high-performance dry land and multifunctional farming operations. Built with advanced engineering, it features a robust chassis and strengthened axles to ensure reliability in demanding field conditions. The tractor offers versatile configuration options, including multiple PTO speeds and hydraulic output capabilities, making it a flexible solution for modern agricultural needs.
Performance Metrics
Traction Force
40 kN
Traction Force
- Torque Reserve Coefficient
- 30 %
- Emission Standard
- Euro II
Transmission & Drivetrain
- Gearbox
- 16 Forward + 16 Reverse (Synchronizer)
Hydraulics & PTO
Lifting Capacity
47 kN
Standard Lifter
42 kN
Electronic PTO Lifter
PTO Rotation Speeds
- 540
- 720
- 850
- 1,000
- Three-Point Hitch Category
- Category IIICategory II (Optional)
Technical Specifications
Key Features
Four-way hydraulic outputStrengthened chassisSwing drawbarAir brake available
- Fuel Tank Capacity
- 350 L
