Technical Specifications
Overview
Professional 22-Piece Screw Extractor Solution
This comprehensive 22-piece set is engineered for the efficient removal of damaged, stripped, or broken screws, studs, and bolts. Featuring high-quality S2 steel construction with a sandblasted surface, the kit includes separate drilling and extracting bits ranging from size #0 to #10. It is an essential tool for woodworking, metalworking, and automotive repair professionals seeking a reliable solution for stuck fasteners.
Technical Specifications
Material
S2 Steel
Set Count
22 pcs
Total Pieces
- Surface Treatment
- Sandblasted

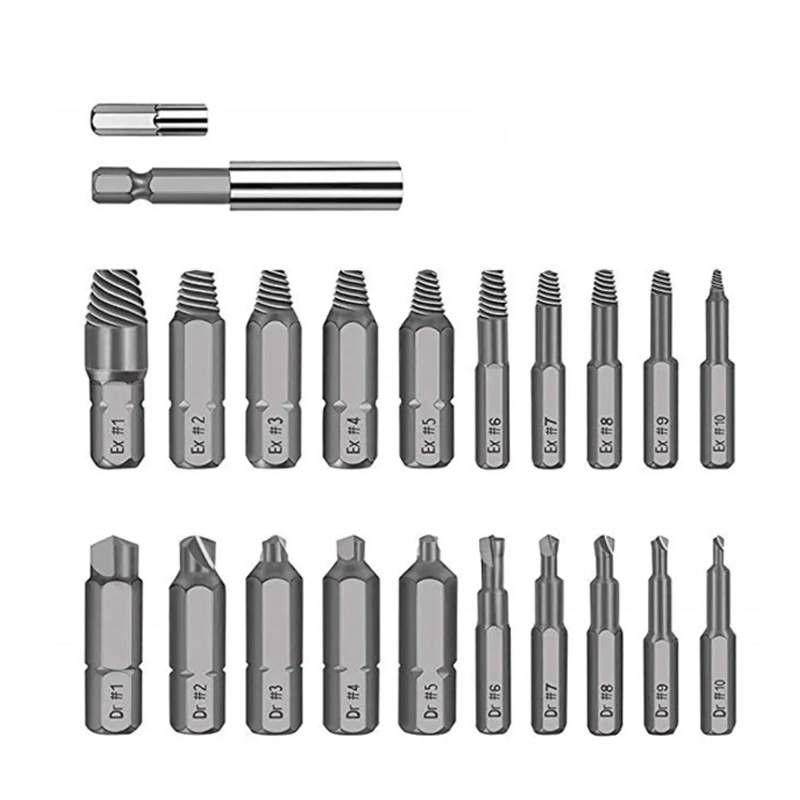

Set Contents
Included Components
- 10x Drilling Bits (Dr #1 to Dr #10)
- 10x Extracting Bits (Ex #1 to Ex #10)
- 1x Magnetic Extension Bit Holder (60mm)
- 1x Socket Adapter (26.3mm)
- Included Sizes
- #0#1#2#3#4#5#6#7#8#9#10
Extractor Dimensions
Extractor Bit Detailed Dimensions
| Bit ID | Top Diameter (mm) | Body Diameter (mm) | Spiral Diameter (mm) | Shaft Diameter (mm) |
|---|---|---|---|---|
| Ex #1 | 5.7 | 6.35 | 3 | 4 |
| Ex #2 | 4.3 | 6.35 | 3 | 4 |
| Ex #3 | 3.3 | 6.35 | 2.3 | 4 |
| Ex #4 | 3.3 | 6.35 | 2 | 4 |
| Ex #5 | 2.6 | 6.35 | 1.3 | 4 |
Usage & Application
Applications
- Damaged screw removal
- Stripped screw extraction
- Broken stud removal
- Bolt and socket screw extraction
- Packaging
- Plastic storage box
