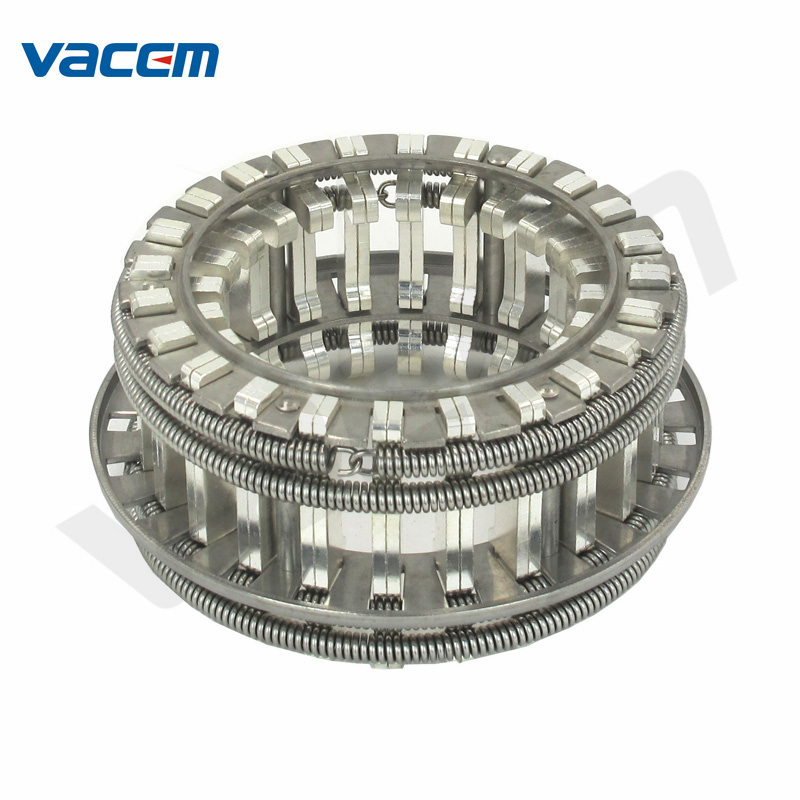

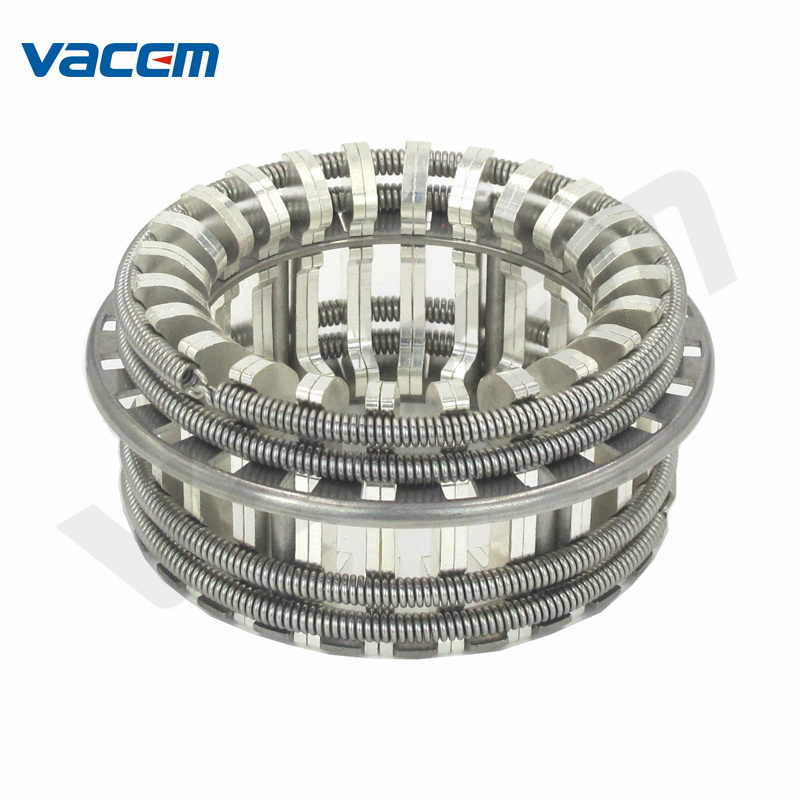

2000A VCB Tulip Contact (48 Pieces)
This tulip contact is designed for vacuum circuit breakers (VCB). It is composed of 48 pieces and suitable for 2000A applications.
Technical Specifications
Product Overview
High-Performance VCB Tulip Contact
This tulip contact is specifically engineered for Vacuum Circuit Breakers (VCB) rated for 2000A operations. Featuring 48 contact fingers, the design ensures superior conductivity through multiple contact points and consistent pressure provided by ring springs. Each piece is treated with high-quality silver plating and anti-tarnish protection to maintain performance and longevity in demanding industrial environments.
Technical Specifications
Rated Current
2,000 A
Rated Current
- Total Contact Pieces
- 48
- Insert Depth Reference
- 34 ± 2 mm
Material and Construction
Surface Treatments
- Thick silver plating
- Anti-tarnish oxidation treatment
- Imported contact surface plating technology
- Material Composition
- Non-magnetic stainless steelSilver platedRing spring
- Plating Customization
- Yes
