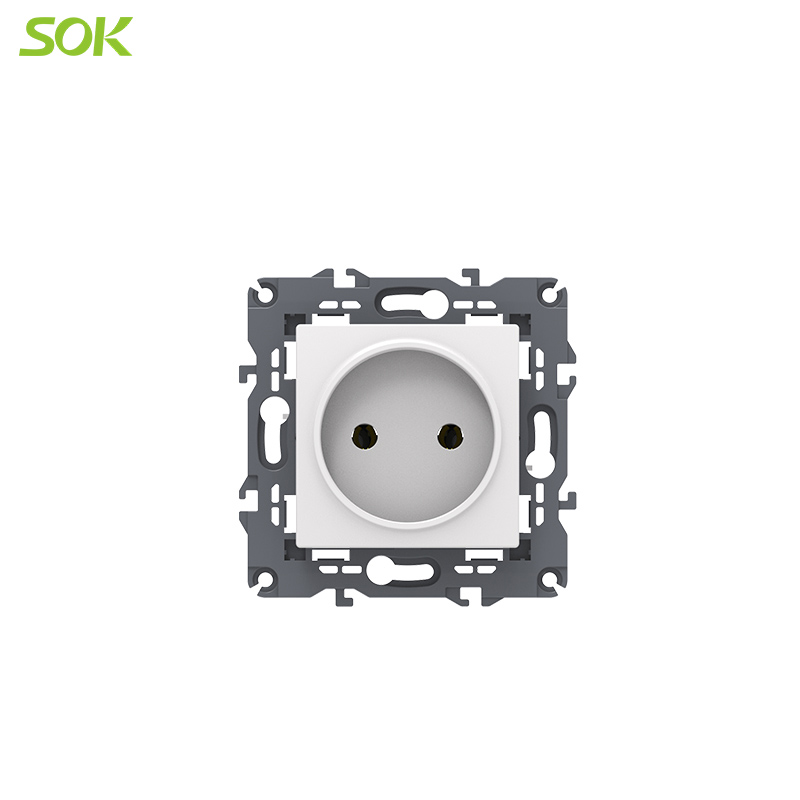

2-Pin Electrical Power Outlet
This 2-pin power outlet is designed for residential and commercial electrical installations. It features screw-less and screw terminals for options and a modular design for flexible installation.
Technical Specifications
Product Overview
Professional Electrical Connectivity

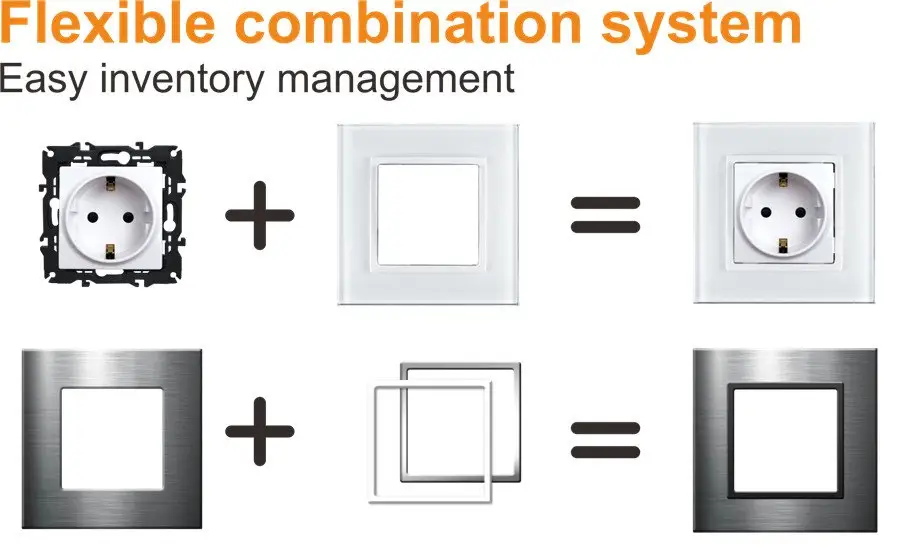

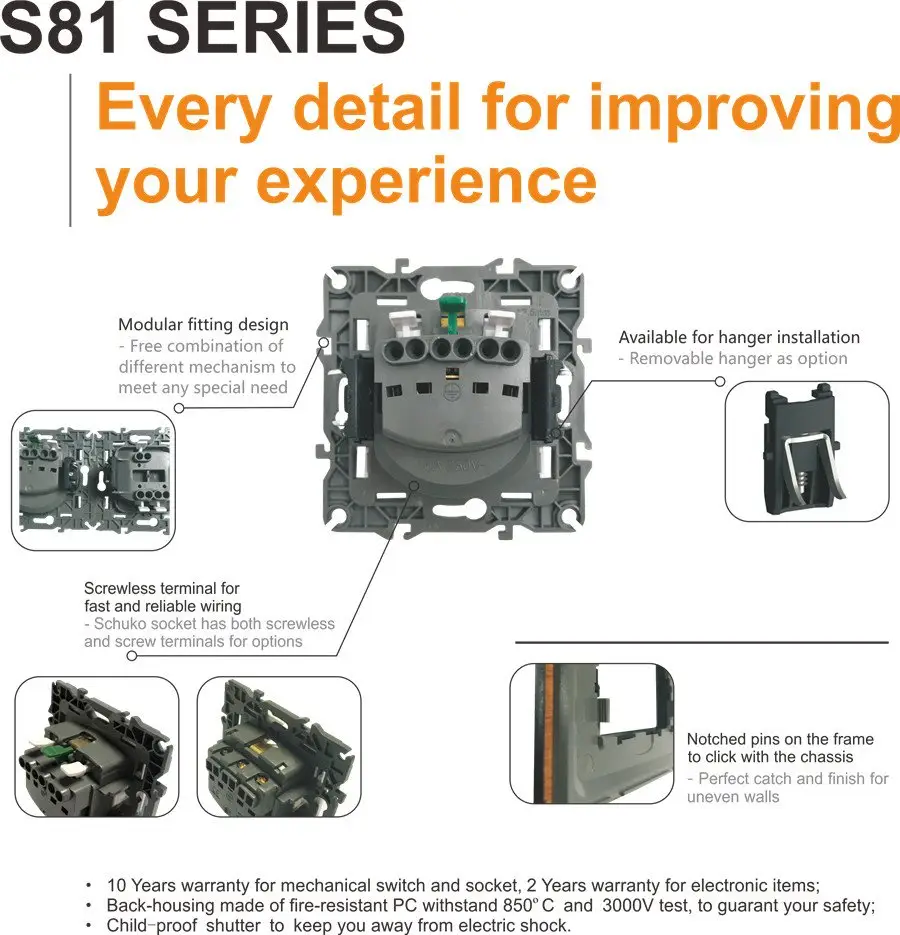

This S81 series 2-pin power outlet offers a stylish, high-quality solution for residential and commercial environments. Featuring a modular design for flexible installation, it utilizes premium PC and brass components to ensure durability and reliability. With safety certifications and child-proof shutter protection, this product is designed for both ease of use and long-term performance.
Technical Specifications
Safety Features
- Child-proof shutter
- Fire-resistant PC casing (850°C)
- 3000V test compliant
- CE certified
- Rated Voltage
- 250 V
- Rated Current
- 16 A
- Dimensions
- 74.7 x 74.7 x 30.9 mm
- Terminal Options
- Screw-lessScrew
Design & Customization

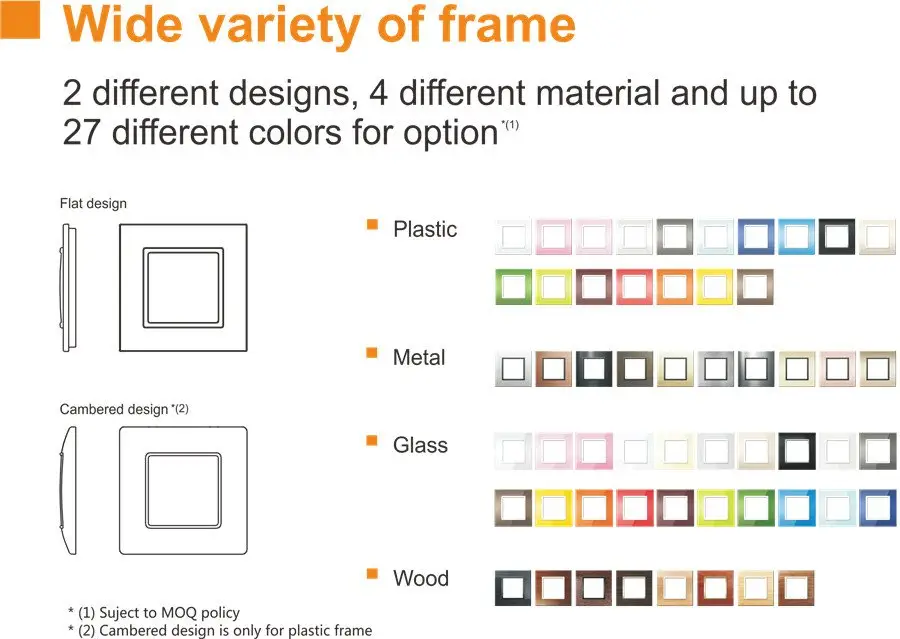

- Frame Materials
- PlasticMetalGlassWood
- Frame Styles
- FlatCambered
- Colors
- White (customization available)
- Configuration

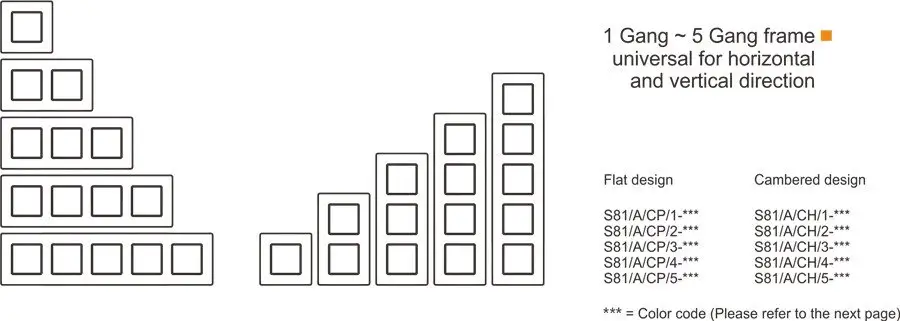

- Supports 1 Gang to 5 Gang combinations
Commercial Terms
- Warranty
- 10 years for mechanical components
- Minimum Order Quantity
- 1000
