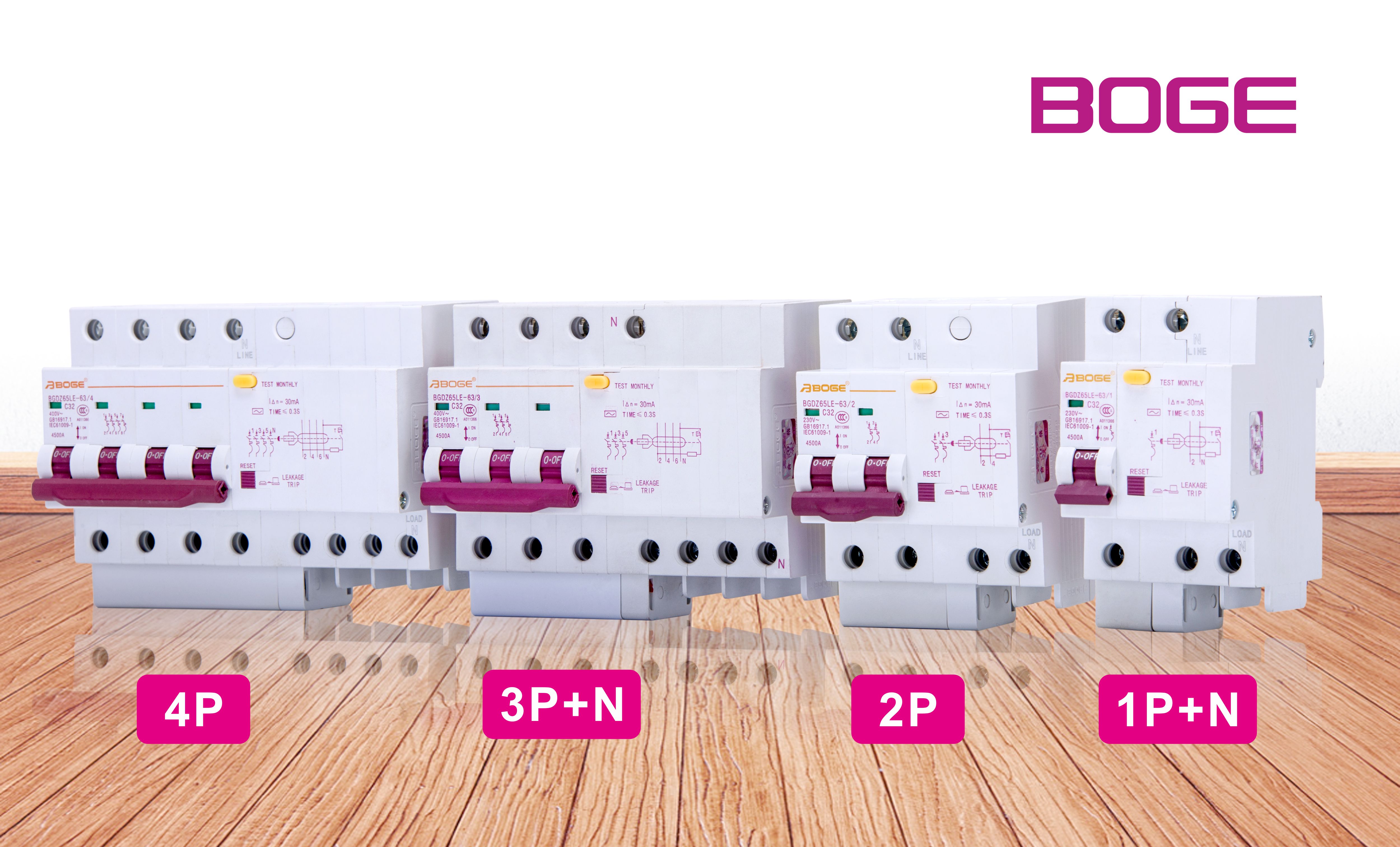

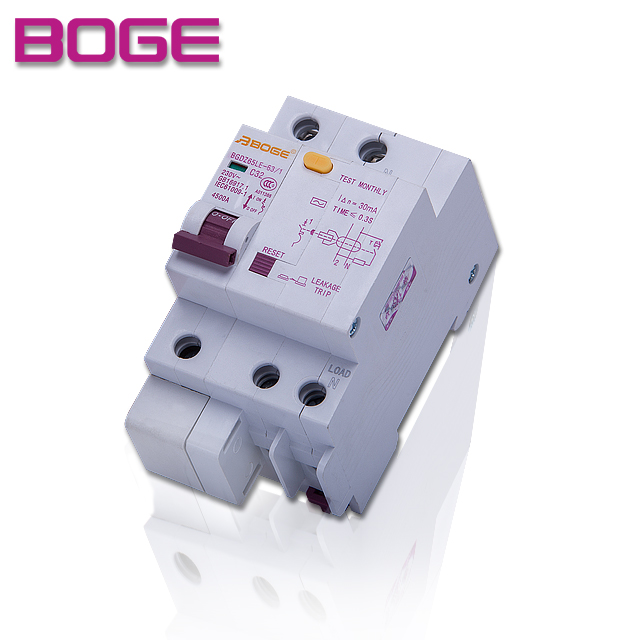

1P+N Residual Current Circuit Breaker with Overload Protection
This 1P+N residual current circuit breaker (RCCB) provides protection against electrical leakage and overcurrents. It is designed with a test button, leakage trip indicator, and reset function.
Technical Specifications
Product Overview
Reliable Circuit Protection
This 1P+N Residual Current Circuit Breaker (RCCB) with integrated overload protection is engineered for robust electrical safety in residential and commercial environments. Designed with high-quality BMC and Nylon materials, it offers excellent heat resistance and durability for long-term reliability. The device features a clear leakage trip indicator and a user-friendly test function, ensuring consistent performance and ease of maintenance.
Technical Specifications
Available Rated Currents
- 6
- 10
- 16
- 20
- 25
- 32
- 40
- 50
- 63
- Rated Voltage
- AC 230V
- Breaking Capacity
- 4500 A
- Residual Operating Current
- 15mA - 30mA
- Tripping Time
- 0.03s - 0.08s
Compliance & Standards
- Standards Compliance
- IEC60898IEC61009IEC60947IEC60947-2
Features & Construction
Key Features
Breaking Indicator LightOverload ProtectionTest ButtonLeakage Trip IndicatorHeat-Resistant Material
Construction Materials
800 °C
BMC Heat Resistance
