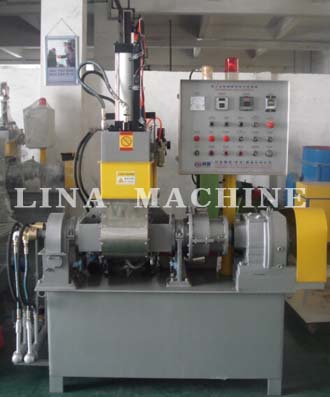

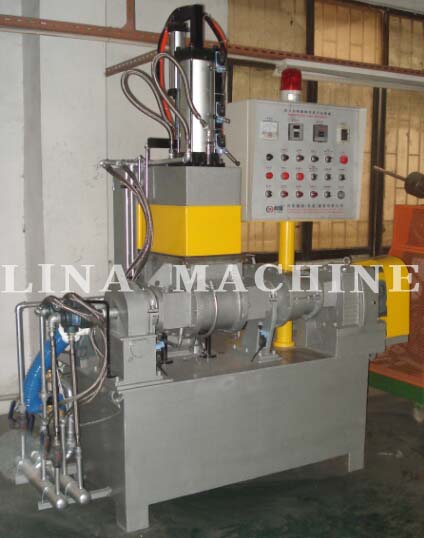

1L Dispersion Kneader Internal Mixer
This 1L dispersion kneader utilizes advanced technology for efficient material processing. It features precise temperature control and well-distributed dispersing performance.
Technical Specifications
Product Overview
High-Efficiency Dispersion Kneader
This 1L dispersion kneader is engineered for superior mixing and dispersion performance, utilizing advanced technical designs to ensure precise operation. Built with high-rigidity materials and specialized surface treatments, the mixing chamber offers exceptional abrasion resistance and extended service life. The system features a robust drive mechanism and intuitive controls, making it an ideal solution for consistent material processing in laboratory and small-scale industrial environments.
Performance Metrics
Mixing Capacity
1 L
Capacity
1.5 KG/load
Max Productivity
Power Requirements
| Component | Power |
|---|---|
| Driving Motor | 2.5 KW |
| Tilting Motor | 0.2 KW |
| Automated Dust Collector | 0.2 KW |
| Electric Heater | 1 KW |
Technical Specifications
Operating Parameters
- Tilting Angle: 110°
- Cooling Water Pressure: 0.2-0.4 Mpa
- Physical Dimensions
- 1,600 x 900 x 1,900 mm
- Total Weight
- 800 KG
Design & Construction
Chamber Configuration
Tilting TypeLifting Type
- Key Features
- Chromium-coated chamberReverse rotation dischargeDry mechanical shaft sealHigh-rigidity gear reducer
