Product Overview

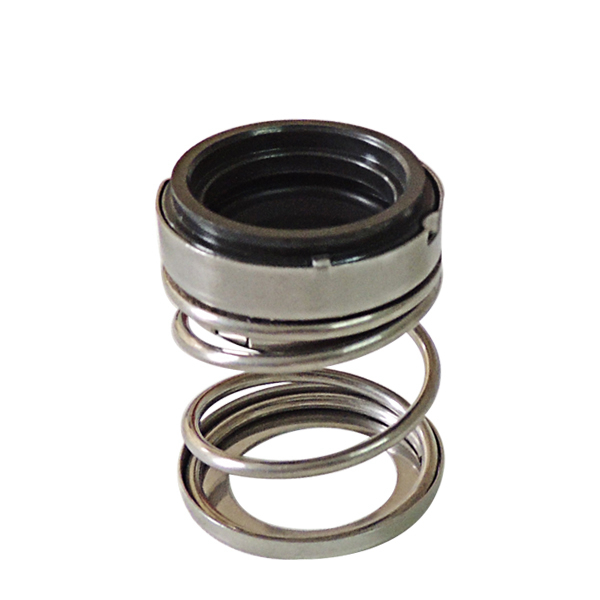

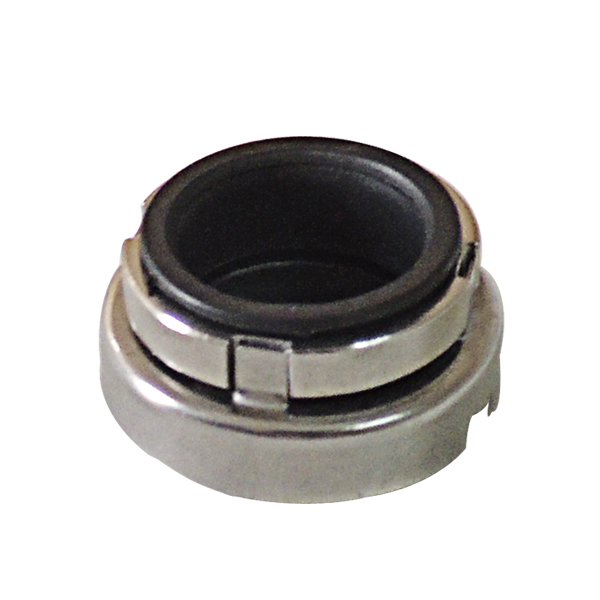

High-Performance Single Spring Mechanical Seal
The HF560 series mechanical seal is a precision-engineered component designed specifically for water pump applications. Featuring a robust single spring mechanism, this seal ensures consistent sealing force to prevent leaks and maintain system integrity. Built for durability, it offers wear resistance, low friction, and reliable performance across various industrial and HVAC&R environments.
Key Features
- Advantages
- Wear resistantLow frictionEasy replacementCustomizableWide application
Technical Specifications
Dimensional Reference
| Model | Shaft (d1) | Seal Face (d3) | Outer (d7) |
|---|---|---|---|
| HF560C-10 | 10 | 20.05 | 21 |
| HF560C-20 | 20 | 31.75 | 35 |
| HF560C-50 | 50 | 67.35 | 70 |
| HF560C-100 | 100 | 124 | 125 |
- Model Number
- HF560C-60
- Shaft Diameter Range
- 10mm to 100mm
- Material
- Metal
Logistics & Service
Shipping Methods
EMSFedExDHLTNTUPS
Accepted Payment Methods
- T/T (Telegraphic Transfer)
- Western Union
- PayPal
Warranty & Support
1 Year
Quality Guarantee
