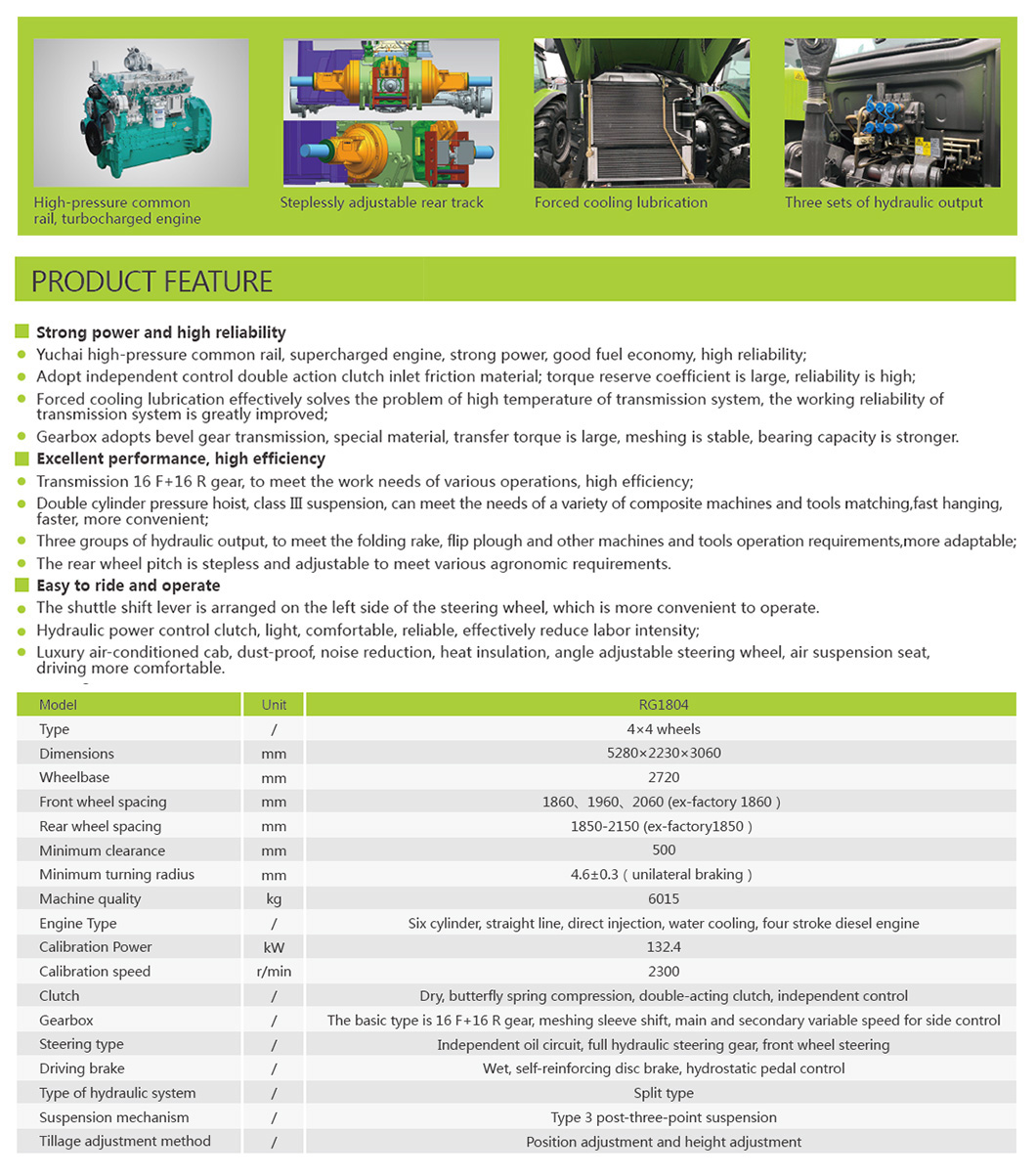

Technical Specifications
Overview

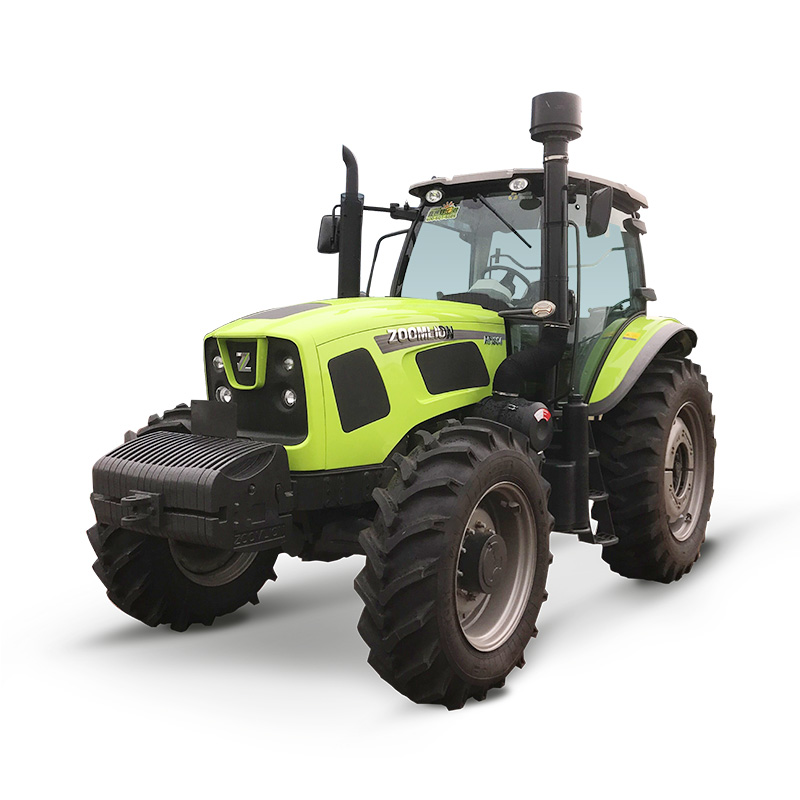

High-Performance 180HP Agricultural Tractor

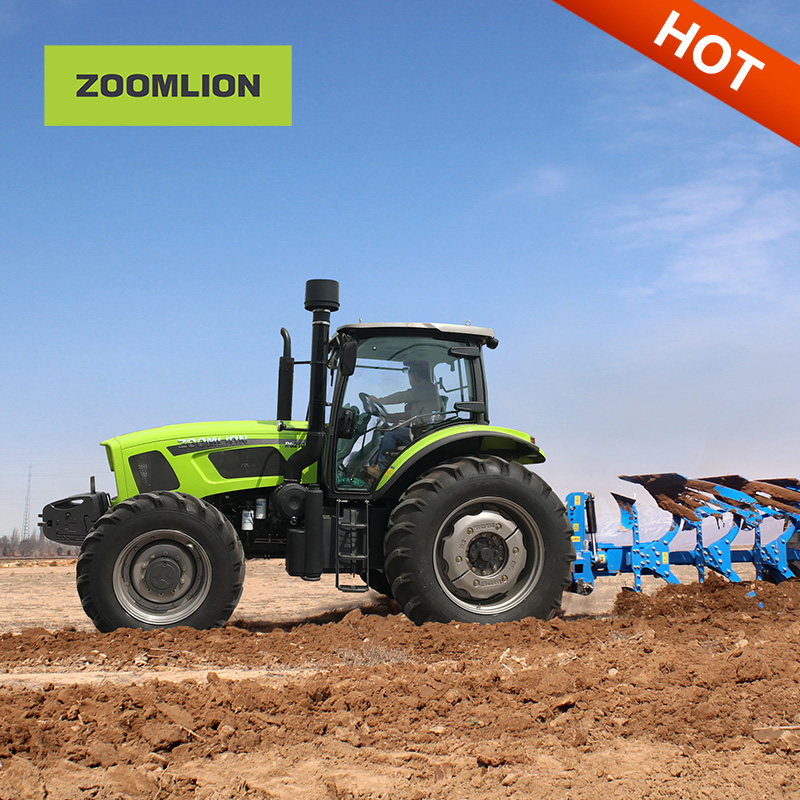

This 180HP 4x4 wheeled tractor is engineered for high-efficiency large-scale farming operations, including plowing, tilling, and heavy-duty hauling. It features a reliable six-cylinder turbocharged engine and a versatile 16-speed transmission system for precision control. The unit includes a climate-controlled luxury cab designed to minimize operator fatigue during extended work cycles.
Engine & Performance
Engine Performance
180 HP
Horsepower
132.4 kW
Calibration Power
2,300 r/min
Calibration Speed
- Engine Configuration
- Six-cylinder, straight-line, direct injection, water-cooled, four-stroke diesel
Transmission & Drivetrain
- Transmission
- 16 Forward + 16 Reverse gears
- Clutch System
- Dry, butterfly spring compression, double-acting clutch with independent control
Hydraulics & Implements
- Hydraulic Output
- 3 groups
- Suspension Mechanism
- Class III, Type 3 post-three-point suspension
Dimensions & Capability
- Dimensions (L×W×H)
- 5280×2230×3060 mm
- Machine Quality
- 6015 kg
- Minimum Turning Radius
- 4.6±0.3 m
Cabin & Ergonomics
- Cabin Features
- Air-conditionedDust-proofNoise-reductionHeat-insulationAir-suspension seat
