17-Meter Concrete Placing Boom

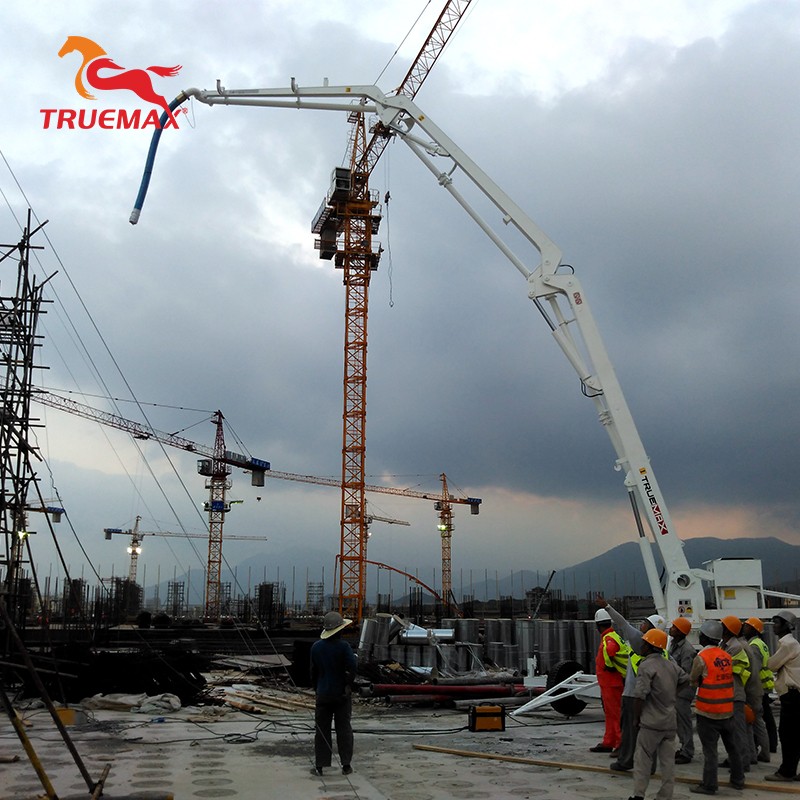

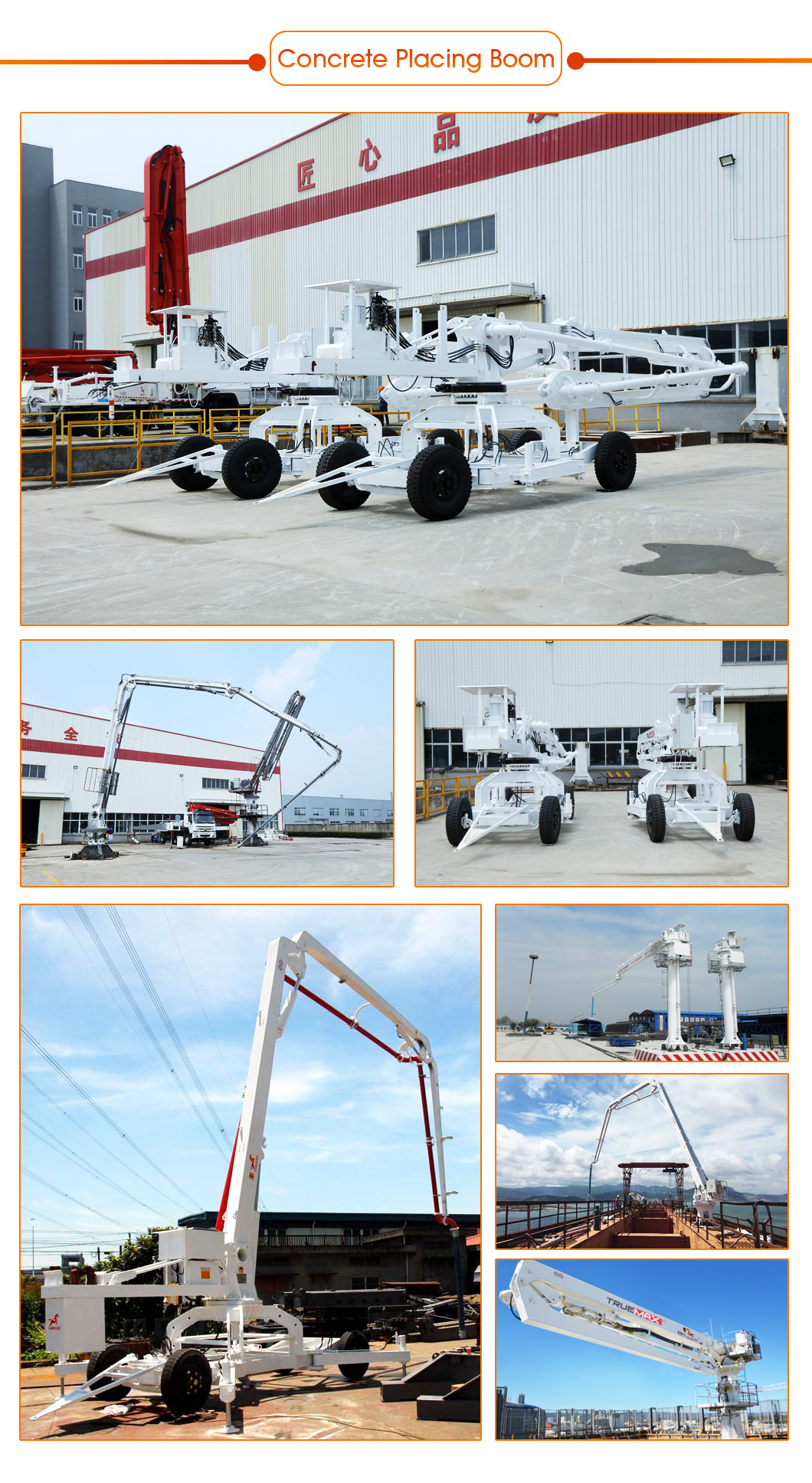

This concrete placing boom has a three-section articulating boom with a reach of 17 meters. It is mounted on a trailer chassis and features hydraulic outriggers for stability.
Technical Specifications
Overview
High-Efficiency Concrete Placement

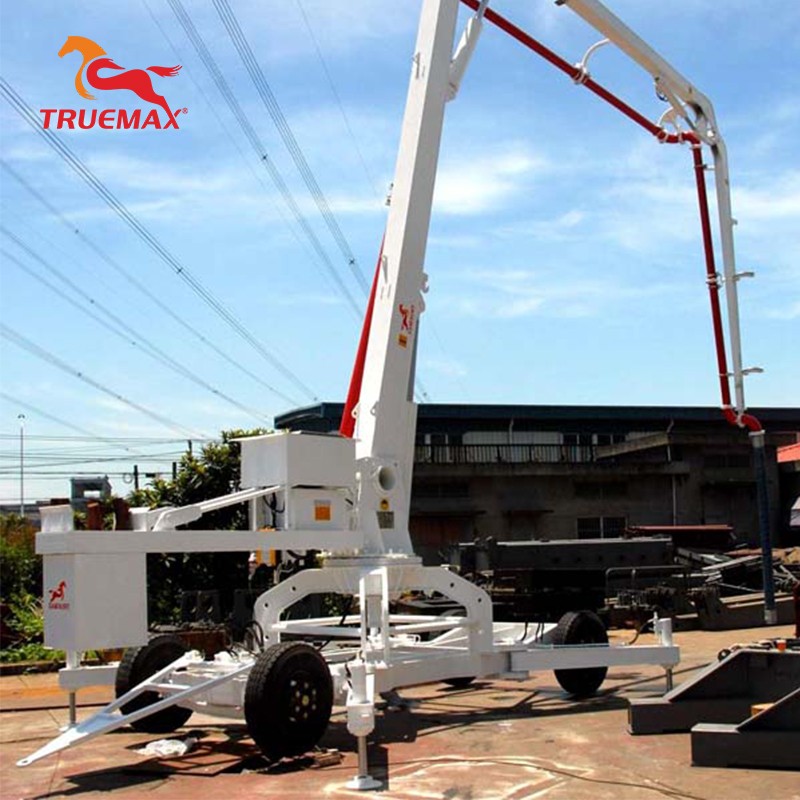

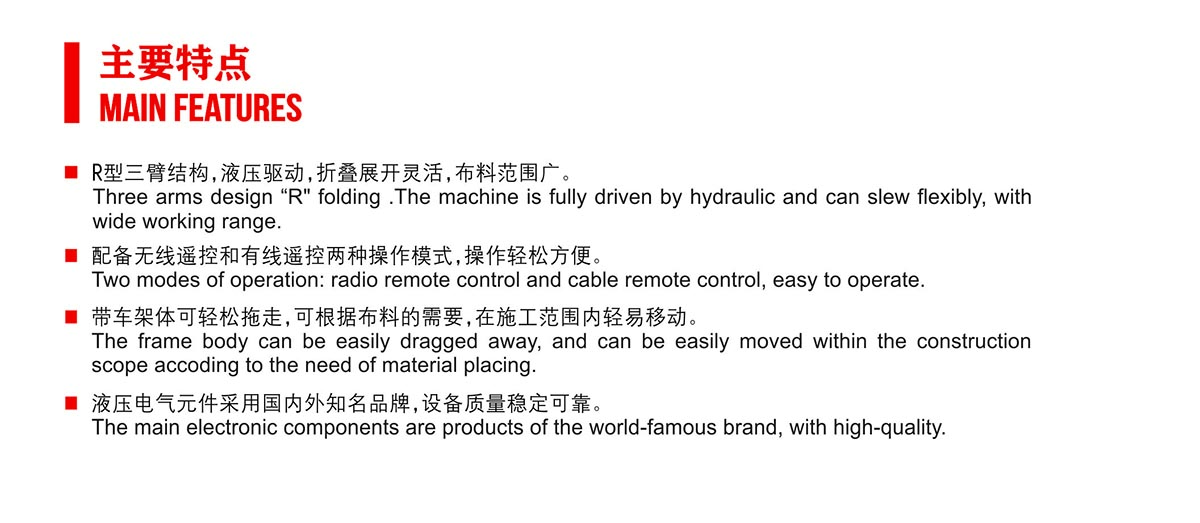

The PB17D-3R is a mobile spider-type concrete placing boom designed for precision and flexibility on construction sites. Featuring a 17-meter reach and a three-section 'R' folding articulating boom, it allows for efficient concrete distribution in confined spaces and high-rise projects. The hydraulic-driven system and remote control operation ensure smooth maneuverability and reduced labor costs for professional building applications.
Key Performance Metrics
Key Performance Metrics
17 m
Max Placing Radius
360 °
Slewing Range
5.5 kW
Motor Power
25 MPa
System Pressure

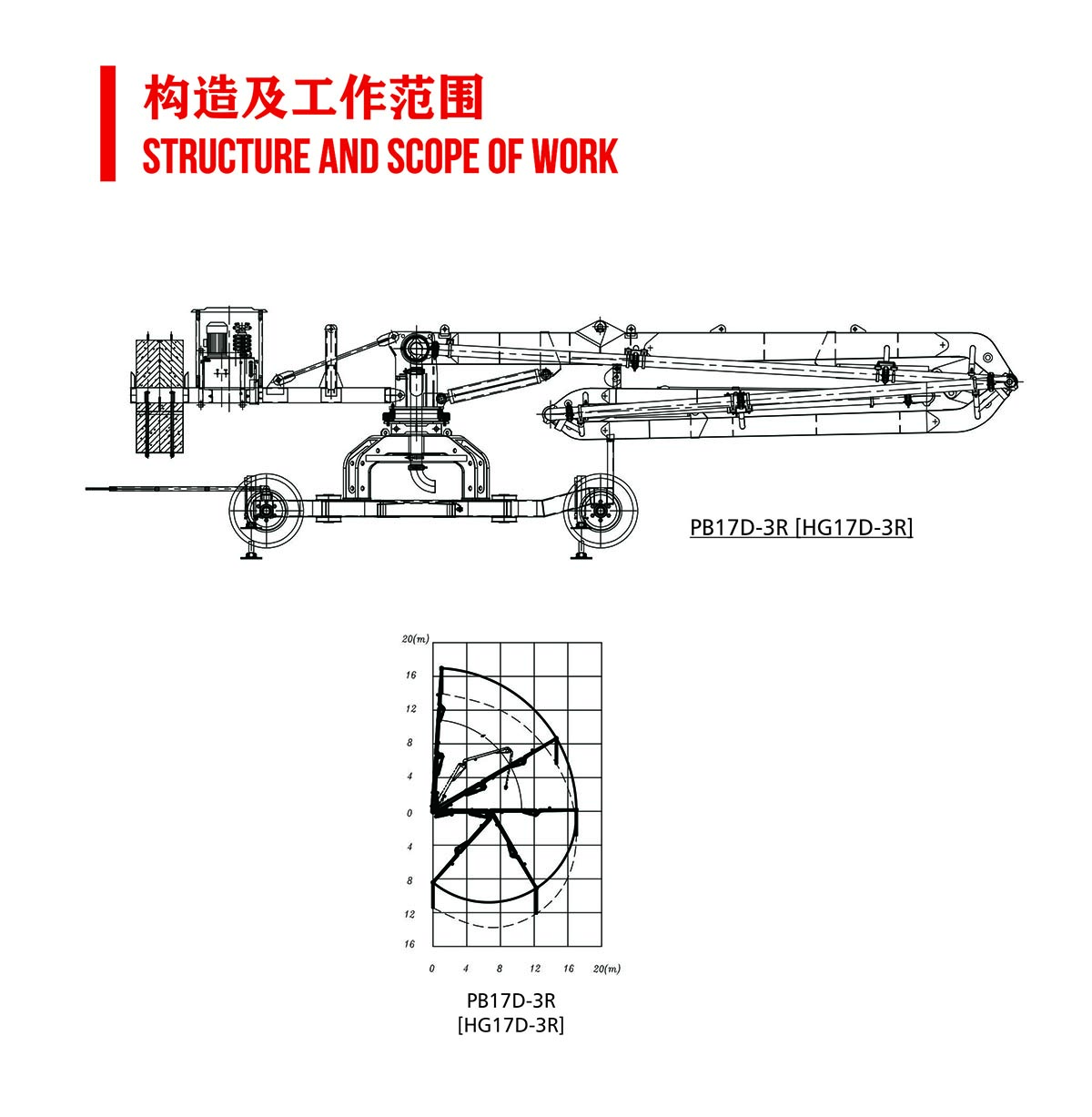

Boom Configuration
Boom Section Details
| Section | Length (m) | Articulation Range |
|---|---|---|
| 1st Section | 7.1 | 0°~86° |
| 2nd Section | 5.5 | 0°~180° |
| 3rd Section | 4.5 | 0°~180° |
Technical Specifications
- Overall Height
- 2.9 m
- Total Weight
- 7950 kg
- Max Lifting Unit Weight
- 5850 kg
- Delivery Pipeline
- Φ133×4.5 mm
- Delivery Hose Diameter
- 5" × 3000 mm

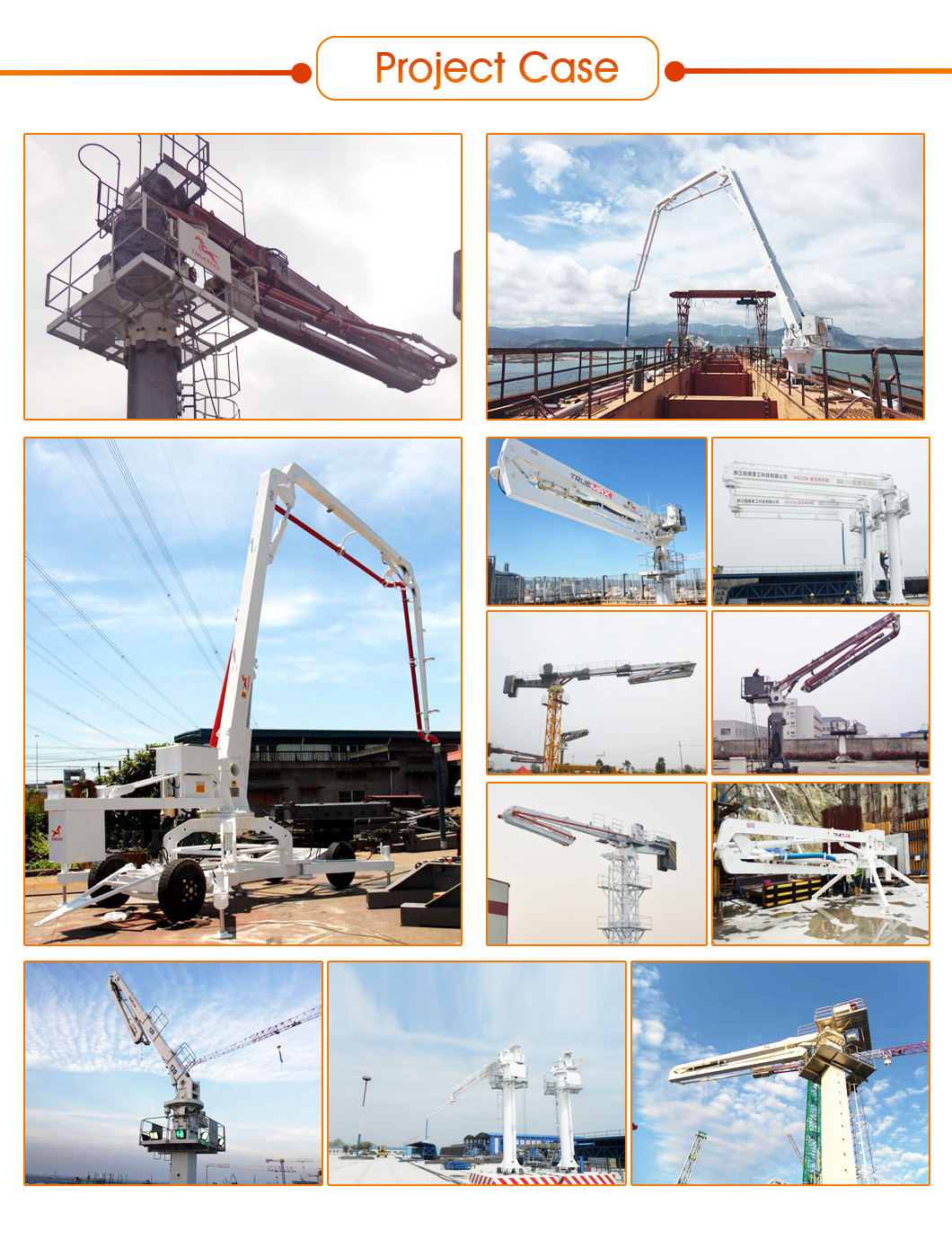

Operational Features
Climbing Options
- Floor climbing
- Shaft climbing
- Control Systems
- Radio Remote ControlCable Remote ControlElectric Proportional ControlSwitch Control
- Slewing Drive Mode
- Turbo Worm Drive / Gear Slewing
Environmental & Power
- Operating Temperature
- -20°C to 55°C
- Standard Power Supply
- 380V / 50Hz (Customizable)
Compliance & Quality
Quality Standards
ISO 9001:2015CE CertifiedEN 60204-1 Compliant
