1650mm Manual Tile Cutter
This is a professional manual tile cutter with a maximum cutting length of 1650mm. It features a metal structure with spring pad, a smooth sliding bar, and a coated tungsten-carbide cutting wheel.
Technical Specifications
Product Overview
Professional Large-Format Tile Cutting Solution

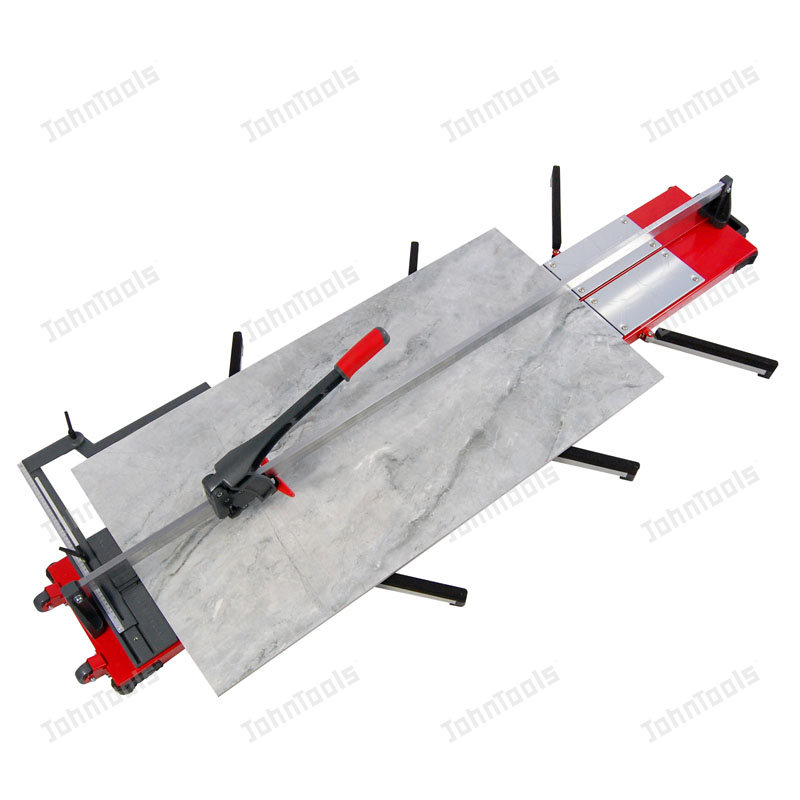

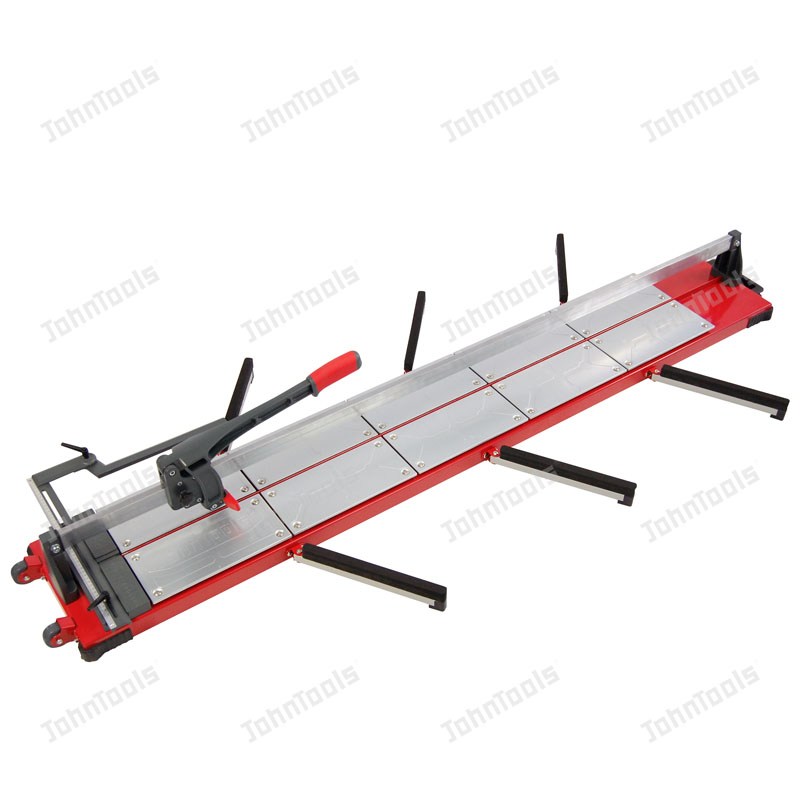

The 8102G-2X is a top-tier professional manual tile cutter engineered for precision and efficiency when working with large-format tiles up to 1650mm. It features a robust metal structure base with spring pads and a high-performance sliding bar with durable ball bearings for smooth scoring. Designed for the professional contractor, it combines ergonomic handling with heavy-duty stability to deliver clean, accurate cuts across a wide variety of tile materials.
Key Performance Metrics
Primary Capabilities
1,650 mm
Max Cutting Length
16 mm
Max Tile Thickness
1,167 mm
Working Width

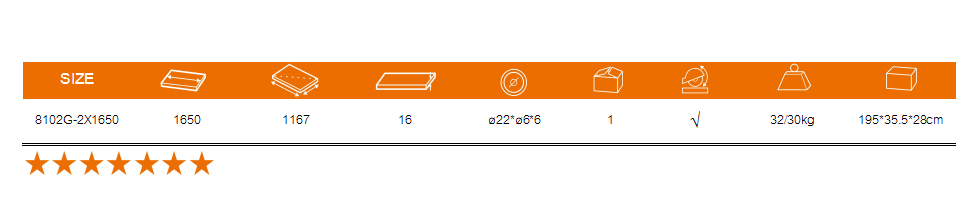

Technical Specifications
- Cutting Wheel Dimensions
- Ø22 * Ø6 * 6 mm
- Blade Material
- Coated tungsten-carbide with bearings
Design & Ergonomics
Handle Features
- Human-engineering big handle
- PP+TPR soft grip
- Comfortable performance design
Stability & Precision
- Metal structure base with spring pad
- Durable ball bearing sliding bar
- Extension arms for large tiles
- Lockable breaking device for optimal view
- 40cm adjustable cutting gauge
Application
- Compatible Materials
- CeramicPorcelainMosaics
Mobility & Logistics
Transport Features
Transport WheelsTransport Handle
- Gross/Net Weight
- 32 / 30 kg
- Package Dimensions
- 195 * 35.5 * 28 cm
