160A Low Voltage High Breaking Capacity Fuse
This fuse is designed for AC 50Hz circuits with voltage up to 1140V and current to 1250A. It protects electrical installations from overload and short circuits, and can also protect semiconductor devices and electric motors from short-circuits.
Technical Specifications
Overview
High-Performance Circuit Protection
This series of low-voltage, high-breaking-capacity fuses is engineered for reliable protection in industrial and commercial electrical installations. Designed for versatility, they effectively safeguard circuits against overloads and short circuits while offering specialized protection for semiconductor devices and electric motors. With a robust ceramic body and high-conductivity copper terminals, these fuses ensure rapid fault interruption and long-term operational safety.
Technical Specifications
Protection Classes
gG/GL (General Purpose)aR (Semiconductor)aM (Motor)

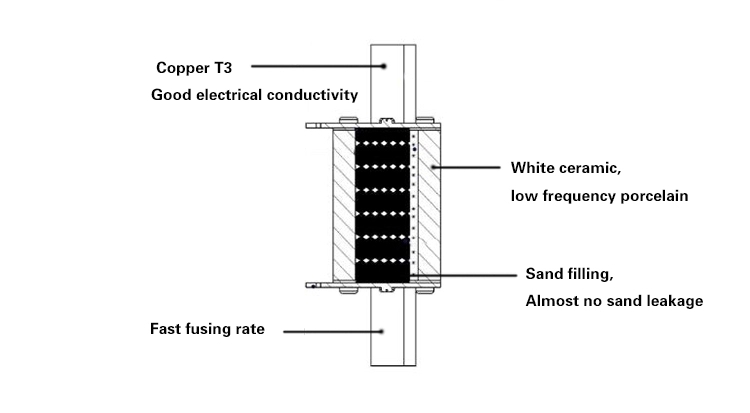

Construction Materials
- Low-frequency porcelain ceramic body
- Copper T3 terminals
- Arc-quenching sand filling
- Rated Voltage
- 1140 V
- Rated Breaking Capacity
- 120 kA
- Compliance Standards
- IEC 60269GB13539CE

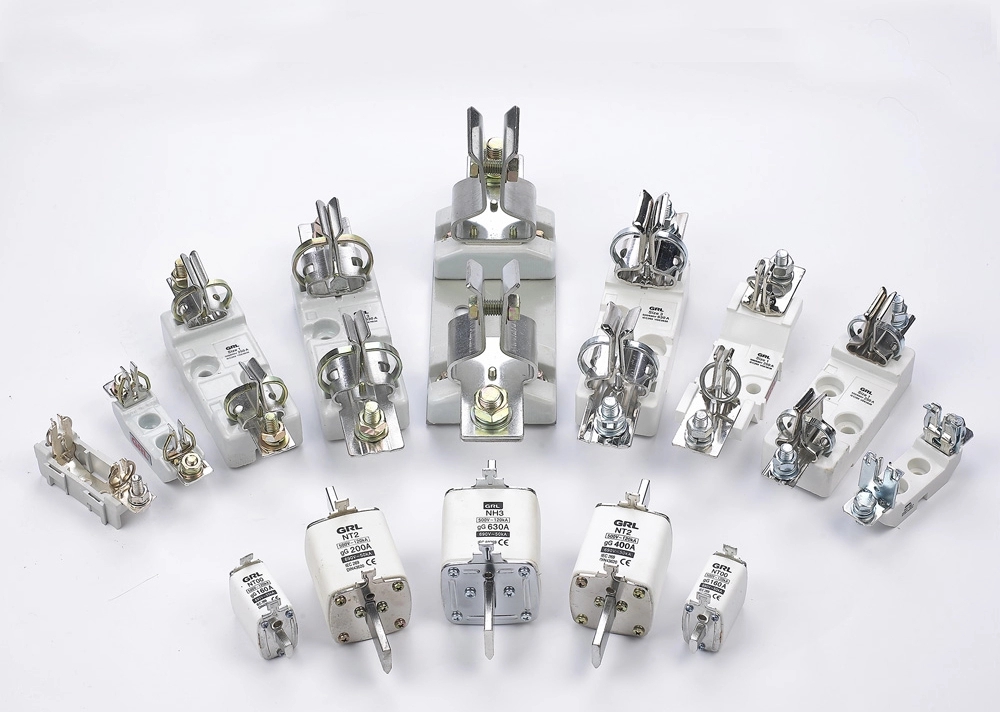

Model Variants

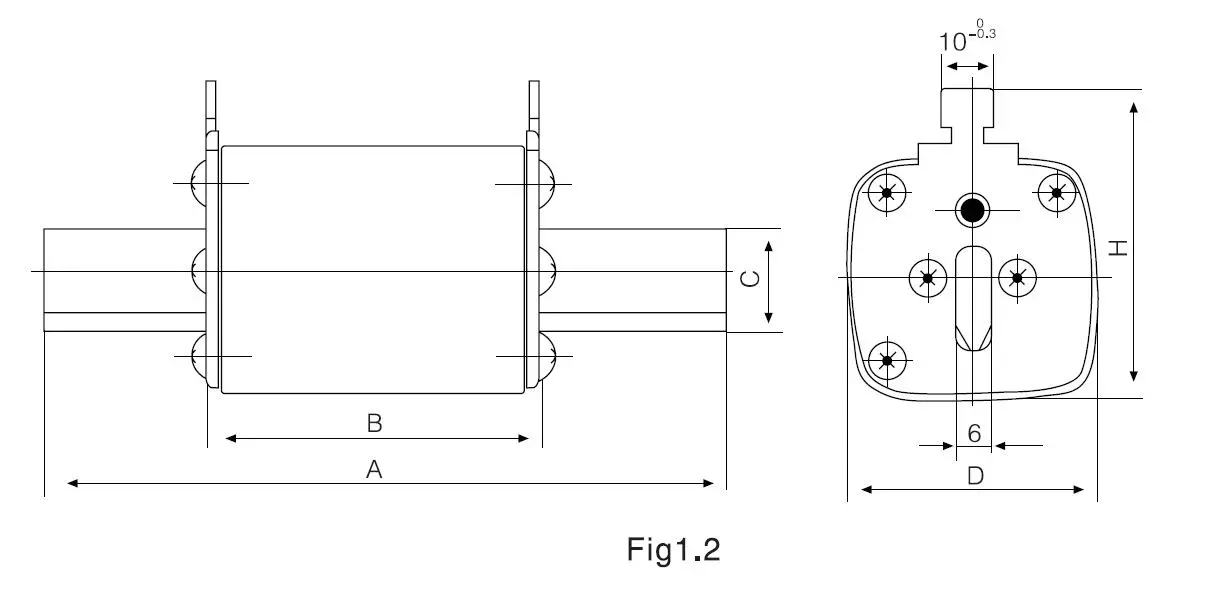

Size and Rating Matrix
| Size | Rated Voltage | Current Range | Weight |
|---|---|---|---|

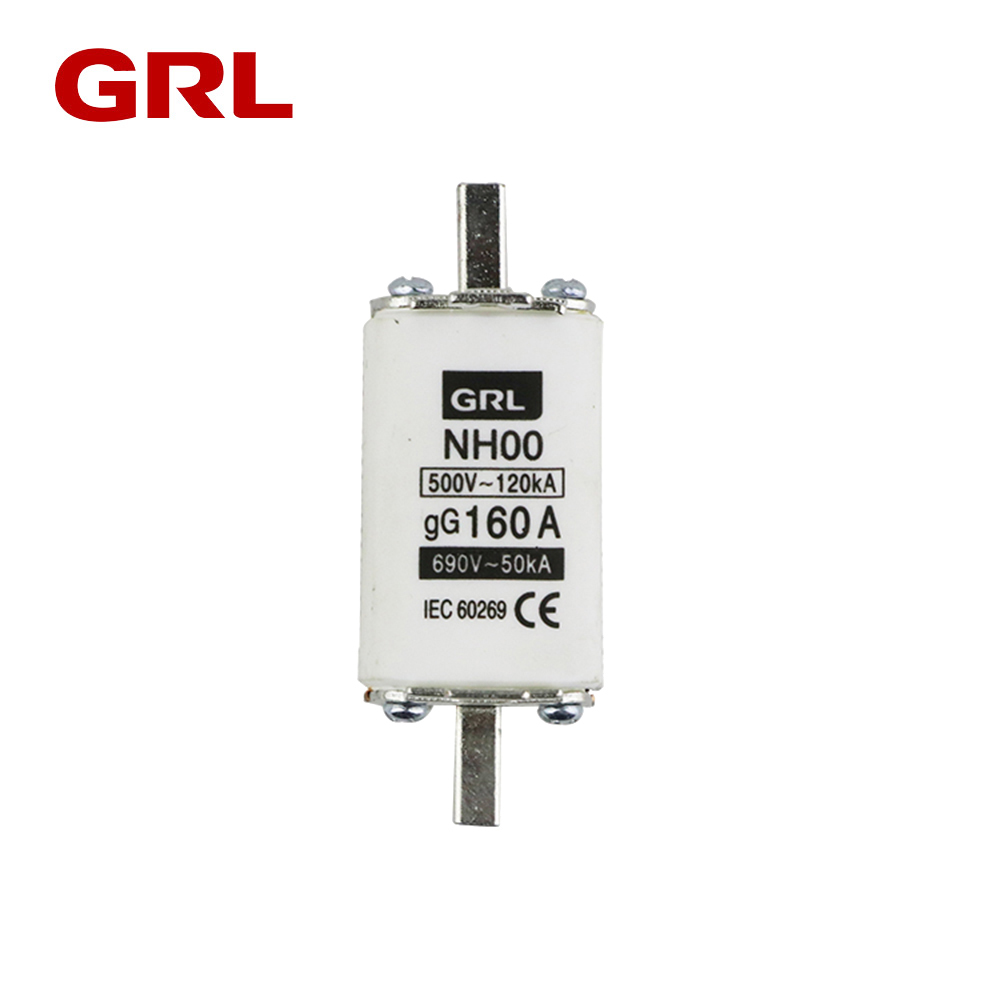

| NH00 | 500V | 63A-160A | 175 |

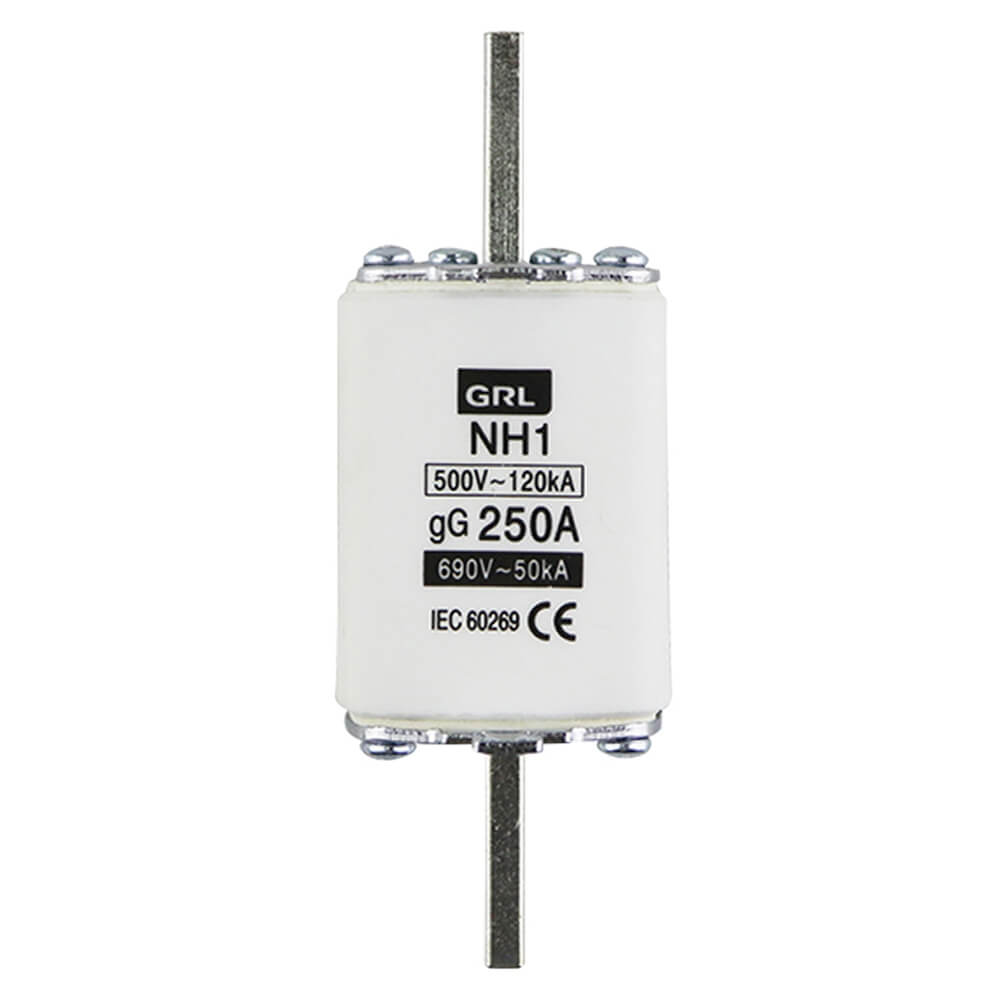

| NH1 | 500V | 63A-250A | 455 |
| NH2 | 500V | 80A-400A | 580 |
| NH3 | 500V | 160A-630A | 880 |
