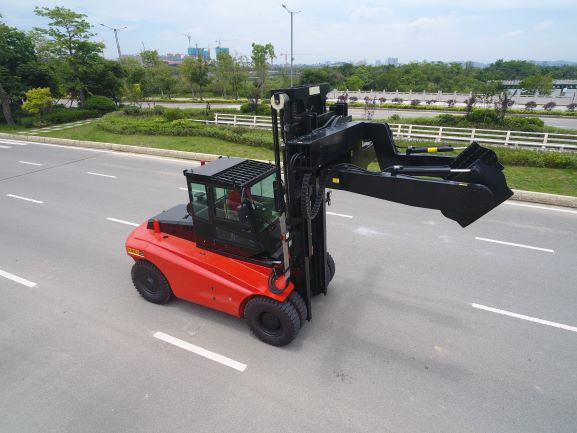

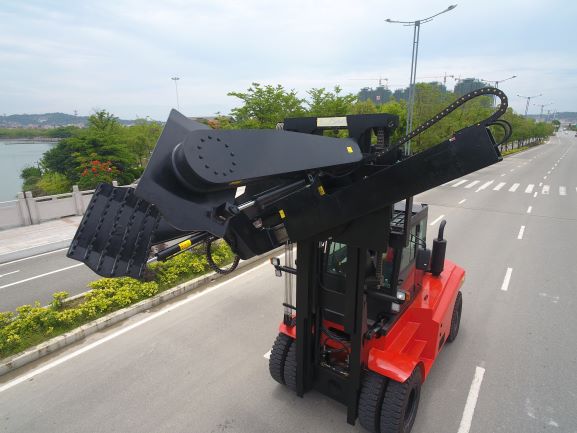

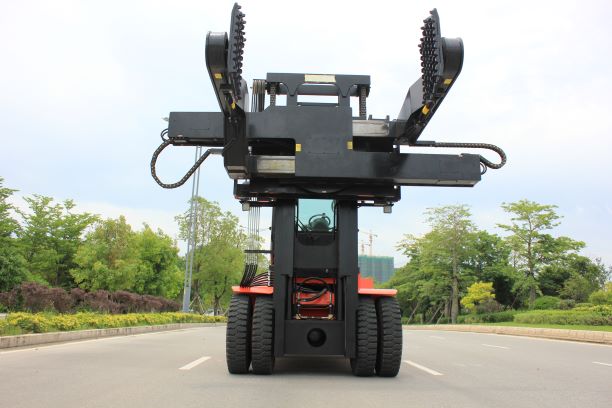

16 Ton LNG Forklift Truck with Tire Clamp
This 16 ton LNG forklift truck is equipped with a tire clamp attachment for efficient and safe handling of large tires. Powered by LNG, it offers reduced emissions compared to traditional diesel models.
Technical Specifications
Overview
Heavy-Duty LNG Material Handling Solution
This 16-ton heavy-duty forklift is specifically engineered for demanding industrial environments, featuring a specialized tire clamp attachment for the secure handling of large-scale tires. Powered by Liquefied Natural Gas (LNG), it offers a cleaner and more cost-effective alternative to traditional diesel engines without sacrificing performance. The vehicle is built on a robust box-type frame validated through 3D finite element analysis to ensure maximum stability and reliability during high-capacity operations.
Key Performance Metrics
Performance Highlights
16 t
Rated Load
3,500 mm
Lifting Height
25,000 kg
Service Weight
150 kN
Traction
Engine & Powertrain
Fuel Type
LNG (Liquefied Natural Gas)Low Emissions
Engine Configurations
| Option | Displacement | Power Output | Rated Speed |
|---|---|---|---|
| Standard High-Efficiency Engine | 6.494L | 129KW | 2,200 |
| Premium Turbocharged Engine | 6.7L | 142KW | 2,200 |
- Number of Cylinders
- 6
Chassis & Mobility
Tyre Specifications
- Front: 12.00-24-18PR
- Rear: 12.00-20-18PR
- Configuration: 4 Front / 2 Rear
- Min. Turning Radius
- 5800 mm
- Travel Speed (Load/Unload)
- 26 / 30 km/h
Technical Systems
- Braking System
- Hydraulic clamp disc brakes with superior thermostability
- Steering System
- Full-hydraulic transverse oil cylinder type
- Control System
- Pilot valve control for reduced labor intensity
Operational Dimensions
Physical Dimensions
| Parameter | Value |
|---|---|
| Overall Length (with forks) | 7640 mm |
| Overall Width | 2750 mm |
| Mast Height (lowered) | 3625 mm |
| Wheelbase | 3800 mm |
| Fork Dimensions | 1800 x 220 x 100 mm |

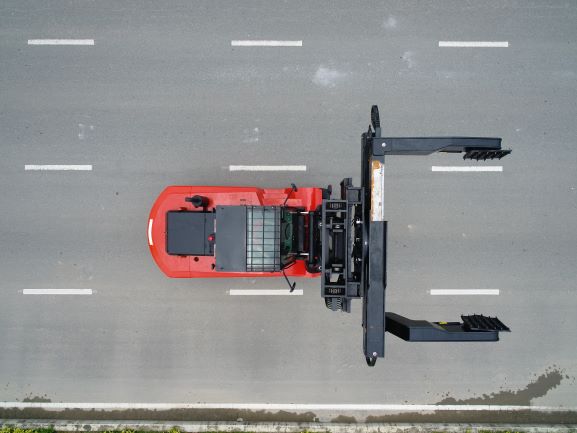

Operator Comfort
- Cabin Equipment
- Air ConditioningHeaterRear View DisplayFull Enclosed Cab
Attachments

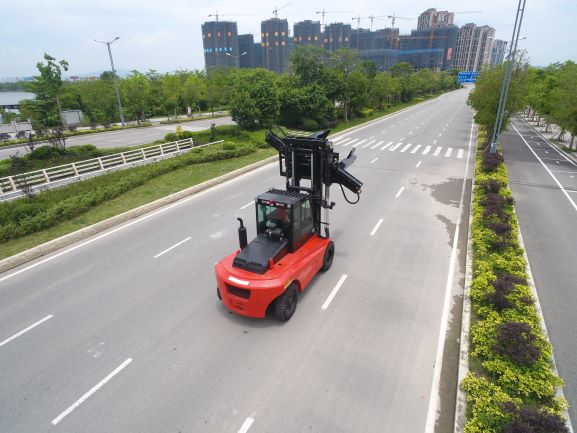

Tire Clamp Performance
- Working Pressure: 16 Mpa
- Oil Flow Requirement: 60 l/min
- Hydraulic fork positioner included
