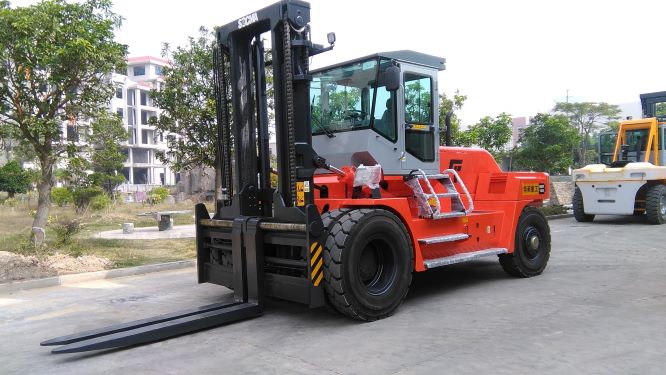

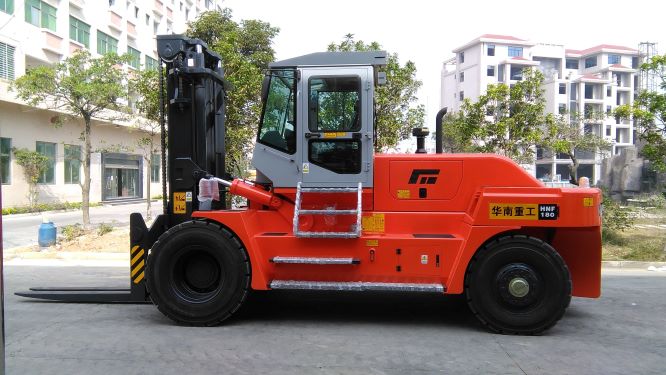

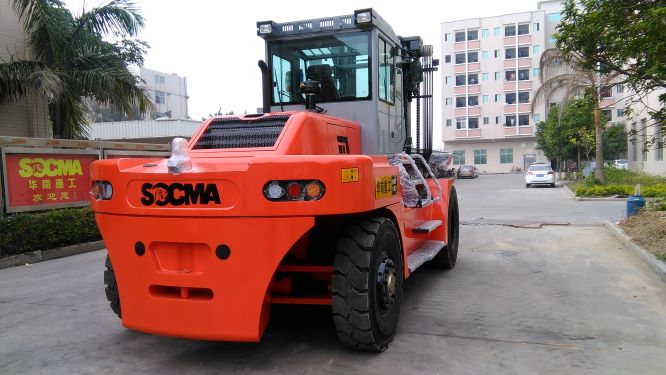

18 Ton Diesel Forklift Truck
This heavy-duty 18 ton diesel forklift truck is designed for demanding industrial applications. It features a robust chassis and a powerful diesel engine for efficient material handling.
Technical Specifications
Overview
Heavy-Duty 18 Ton Diesel Forklift
This 18-ton diesel forklift is engineered for high-capacity material handling in demanding environments like ports, construction sites, and industrial facilities. It features a high-quality turbocharged engine with low fuel consumption and high torque reserves for reliable power performance. The vehicle is built on a robust, 3D-analyzed box-type frame to ensure maximum longitudinal and transverse stability during heavy lifting operations.
Key Performance Metrics
Performance Highlights
18 t
Rated Load
900 mm
Load Center
3,500 mm
Standard Lift Height
150 kN
Max Traction
Engine & Powertrain
Engine Specifications
| Engine Model | Power Output | Displacement |
|---|---|---|
| Standard Turbocharged | 129KW @ 2200rpm | 6.494L |
| High Performance Option | 142KW @ 2200rpm | 6.7L |
- Number of Cylinders
- 6
- Transmission Gears (F/R)
- 2 Forward / 1 Reverse
Operational Capabilities
- Travel Speed (Laden/Unladen)
- 26 / 30 km/h
- Max Lifting Speed (Laden/Unladen)
- 250 / 260 mm/s
- Gradeability (Laden/Unladen)
- 20% / 21%
Chassis & Dimensions
Overall Dimensions
- Overall Length (with forks): 7640 mm
- Overall Width: 2750 mm
- Height to Cab: 3365 mm
- Wheelbase: 3800 mm
- Turning Radius: 5800 mm
Tyre Configuration
- Front: 12.00-24-18PR (4 wheels)
- Rear: 12.00-20-18PR (2 wheels)
Safety & Control
- Braking System
- Hydraulic clamp disc brakes with superior thermostability
- Control System
- Pilot valve control for reduced labor intensity
Operator Comfort
- Cabin Equipment
- Full CabAir ConditioningHeaterRear View Display
Compliance & Quality
Quality Standards
ISO 9001:2015CE CertifiedGB/T 19001-2016
After-Sales Service
- Warranty Period
- 12 months or 2000 operating hours
