2.5 Ton Diesel Forklift Truck
This 2.5 ton diesel forklift truck provides efficient material handling in confined spaces. Its robust diesel engine ensures reliable power for lifting and transporting loads.
Technical Specifications
Overview
High-Efficiency 2.5 Ton Diesel Forklift
This 2.5-ton diesel forklift is engineered for high efficiency and energy saving in demanding industrial environments. Featuring a radical design focused on driver comfort and operational security, it excels in narrow aisles and confined spaces. With advanced hydraulic technology and a robust cooling system, this machine ensures reliable performance for warehousing, logistics, and construction applications.
Key Performance Metrics
Performance Highlights
2,500 kg
Rated Capacity
3,000 mm
Max Lifting Height
2,240 mm
Turning Radius
21 %
Max Gradeability
Engine & Transmission
- Power Source
- Diesel
- Transmission Type
- Electronic hydraulic transmission
- Fuel Tank Capacity
- 70 L
Operational Performance
- Lifting Speed (Loaded)
- 500 mm/s
- Travelling Speed (Loaded)
- 17 km/h
- Max Drawbar Pull
- 18 kn
Design & Ergonomics
Operator Comfort & Safety
- Suspension system with adjustable seat to reduce fatigue
- Lowered step height with 1.5x larger step area
- Embedded LCD instrument with neutral start protection
- Double protection type brake lever
- Broad flat floor with sunken tilt cylinders for extra legroom

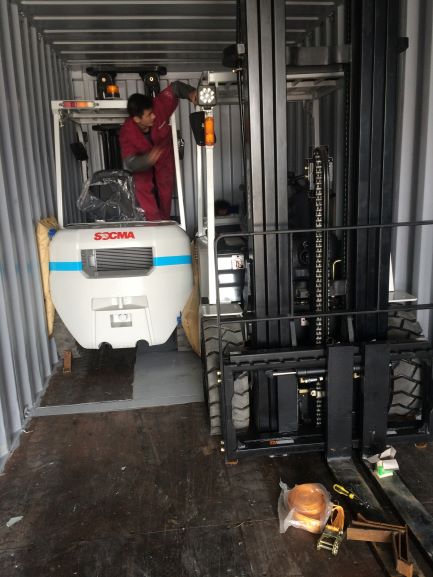

- High-visibility single chain mast design
Maintenance & Durability
- Removable side cover for easy inspection
- Integrated control box for fuses and relays
- Aluminum heat sink radiator for enhanced cooling
- Large double muffler for superior noise reduction
Dimensions
- Length (without fork)
- 2605 mm
- Overall Width
- 1150 mm
- Total Truck Weight
- 3680 kg

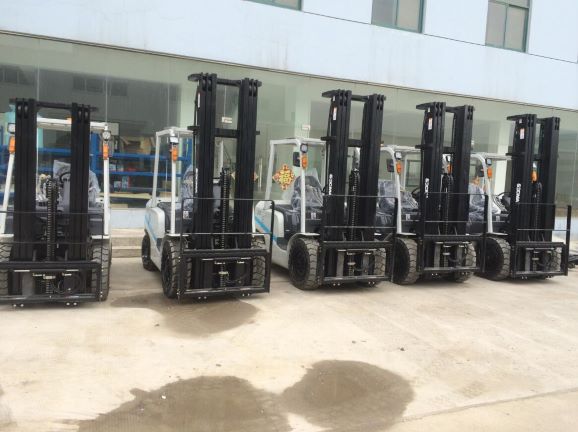

Chassis & Tires
Tire Setup
| Position | Quantity | Size Specification |
|---|---|---|
| Front | 2 | 7.00-12-12PR |
| Rear | 2 | 6.0-9-10PR |
- Tire Type
- Pneumatic Tyre
Service & Support
Certifications
ISO 9001:2015CE CertifiedGB/T 19001-2016
- Warranty
- 12 months or 2000 hours of operation
