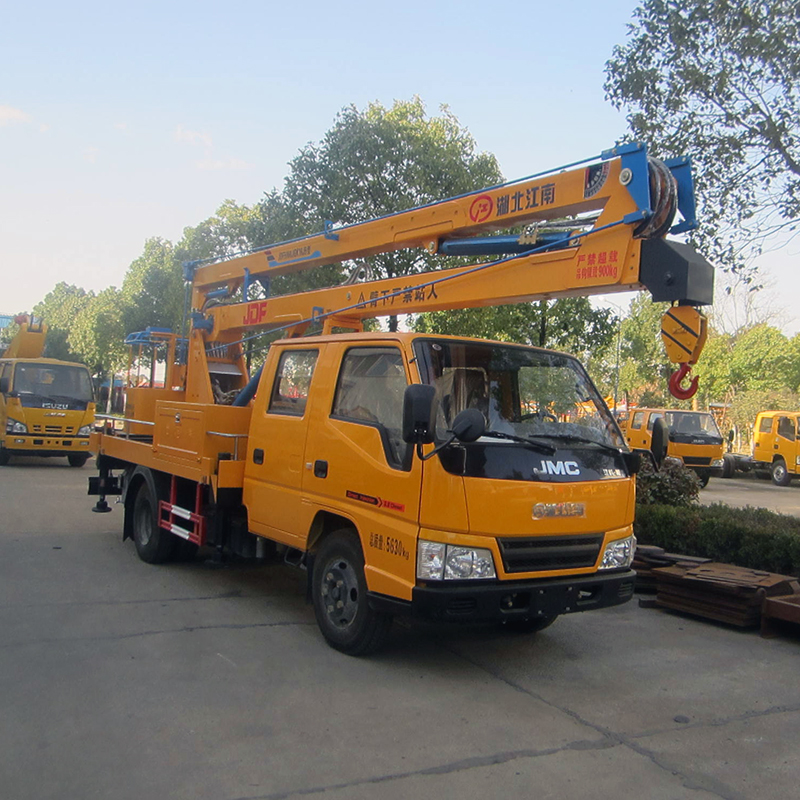

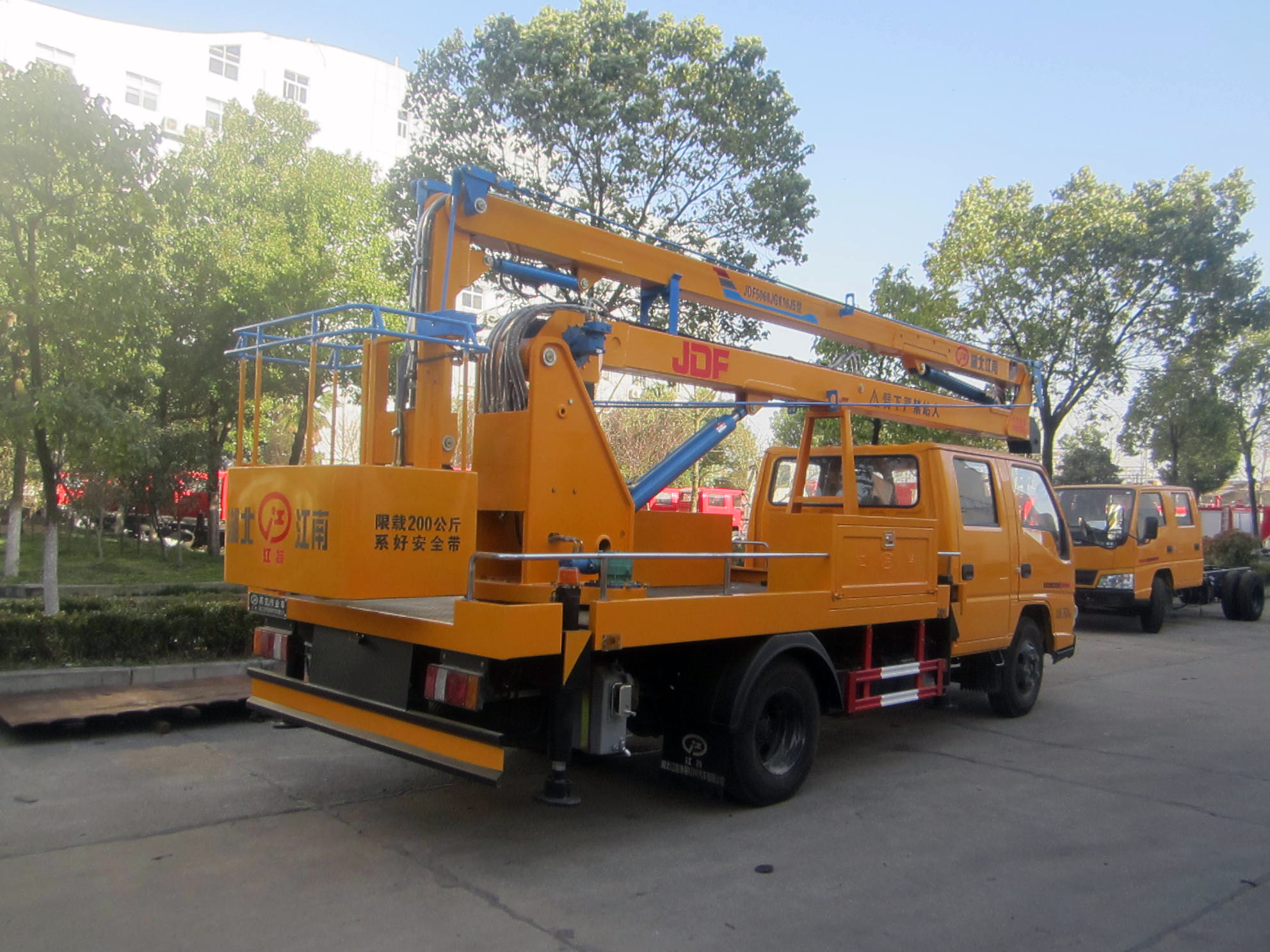

16-Meter Telescopic Aerial Work Platform Truck
This 16-meter aerial work platform truck is designed for various elevated tasks. The truck features a telescopic boom and stable outriggers, providing a safe and efficient platform for maintenance, construction, and utility work.
Technical Specifications
Overview
Versatile Aerial Work Solution
This 16-meter telescopic aerial work platform truck is engineered for safe and efficient operation at height, making it an ideal choice for maintenance, construction, and utility applications. Built on a robust chassis with a high-quality carbon steel boom, it offers reliable performance and precise hydraulic control. The vehicle features a double-row cabin for crew transport and advanced safety systems, ensuring productivity and operator security in diverse urban environments.
Performance Metrics
Max Working Height
16 m
Max Working Height
7.5 m
Max Working Radius
Load Capacities
| Application | Capacity | Unit |
|---|---|---|
| Bucket Loading | 200 | kg |
| Crane Lifting | 900 | kg |
Technical Specifications
Engine & Chassis
- Engine Power: 115 hp
- Emission Standard: Euro 3
- Displacement: 2771 cc
- Brake System: Oil brake
- Tire Size: 7.00-16
- Boom Construction
- 3-section folding boom constructed from high-quality Q235 carbon steel
Safety & Features
Operational Safety
- Simultaneous or respective outrigger operation
- Larger span outriggers for enhanced stability
- Urgent power backup system
- Cabin Configuration
- Double row cabin2+3 seatsAir conditionerPower steering
