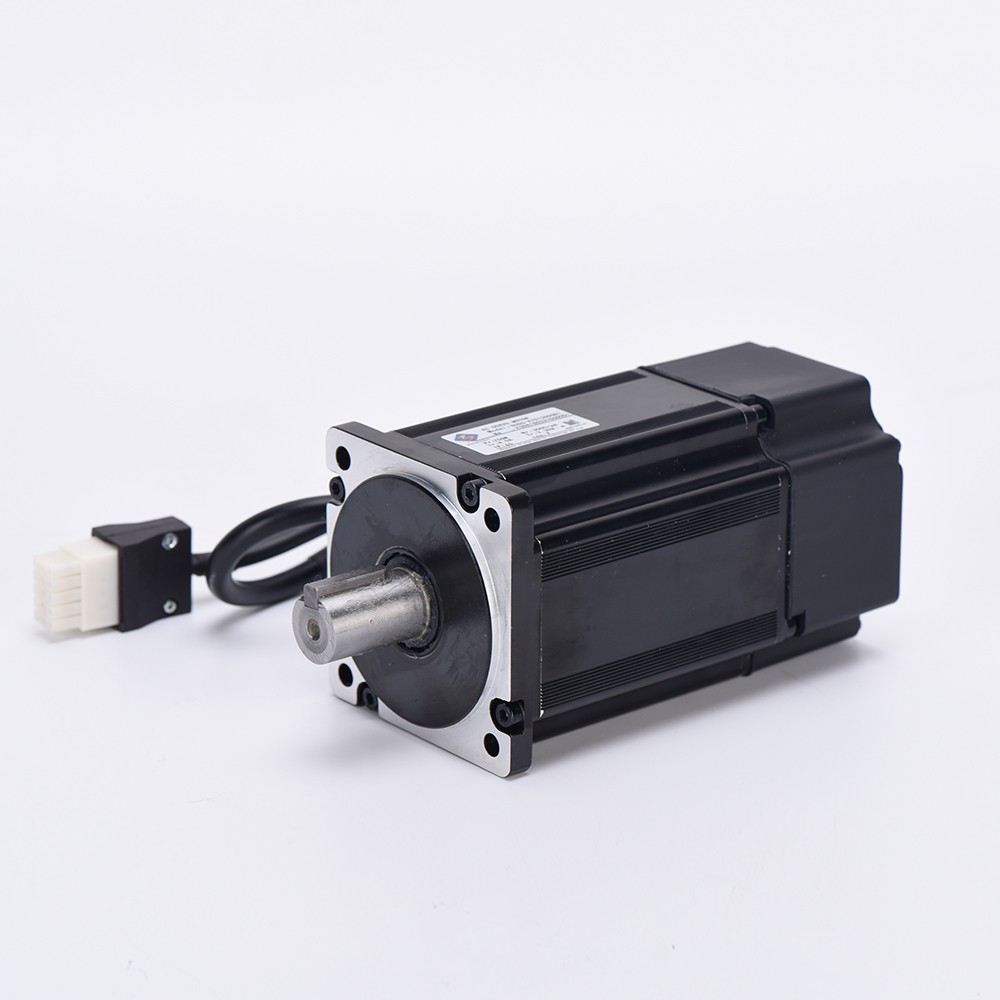

1.5kW AC Servo Motor 130mm Frame
This AC servo motor delivers 1.5kW of power and operates on a 220V power supply. It is designed for precision motion control applications such as CNC machines and robotics.
Technical Specifications
Overview
High-Performance 1.5kW AC Servo Motor
This 130mm frame AC servo motor is engineered for high-precision motion control across industrial automation systems. Delivering a rated power of 1.5kW at 220V, the unit provides smooth, accurate performance with minimal vibration, making it ideal for robotic joints, CNC milling, and high-end electronic assembly equipment. The robust design includes options for integrated brakes and various encoder configurations to suit diverse operational requirements.
Key Performance Metrics
Performance Overview
1.5 kW
Rated Power
2,000 rpm
Rated Speed
3,000 rpm
Max Speed
7.16 Nm
Rated Torque
Technical Specifications

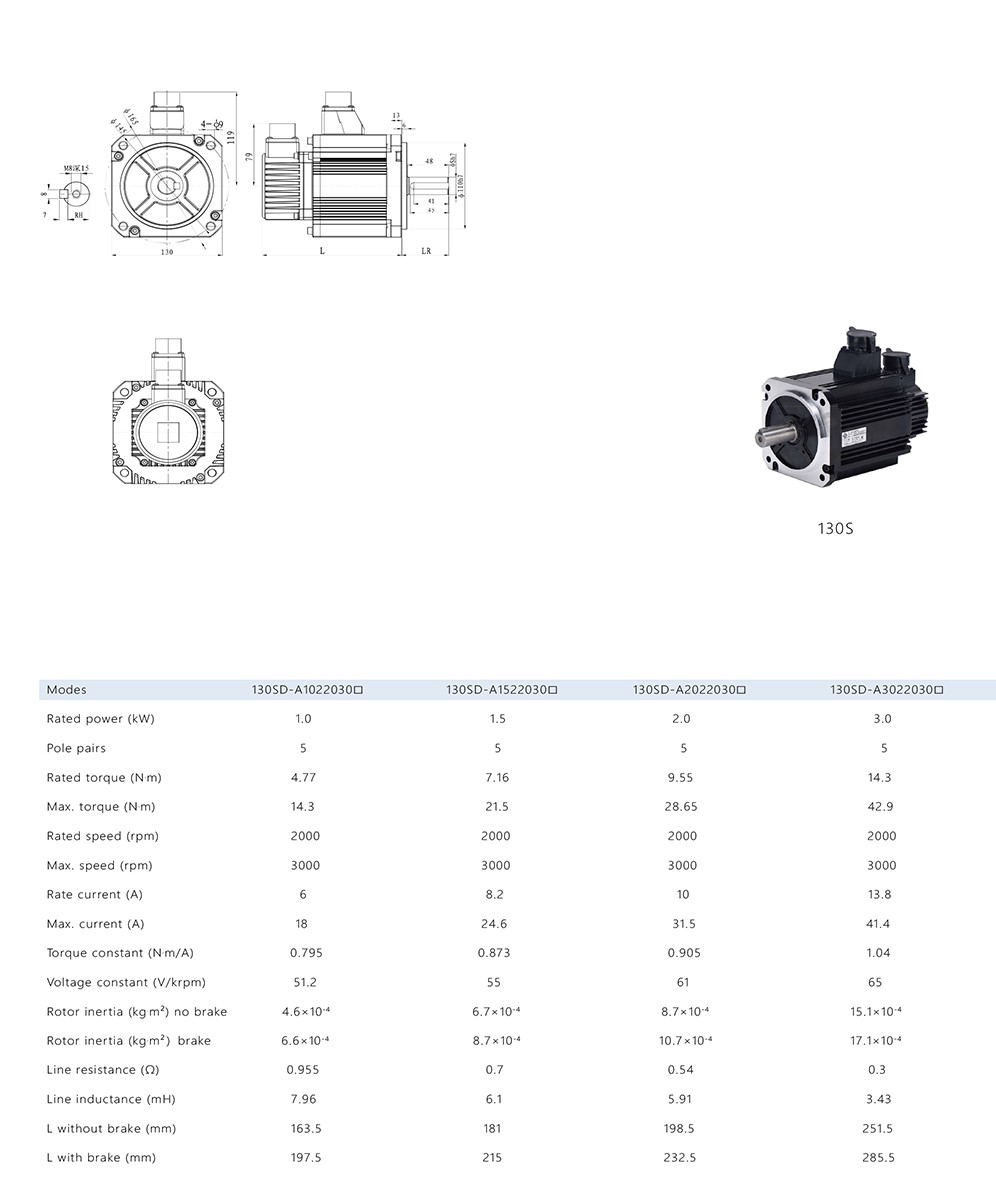

Detailed Technical Data
| Parameter | Value |
|---|---|
| Rated Voltage | 220V |
| Frame Size | 130mm |
| Rated Current | 8.2A |
| Max Current | 24.6A |
| Pole Pairs | 5 |
| Max Torque | 21.5 Nm |
| Torque Constant | 0.873 Nm/A |
| Voltage Constant | 55 V/krpm |
| Line Resistance | 0.7 Ω |
| Line Inductance | 6.1 mH |
Mechanical Dimensions
Dimensions with Brake Options
- Length without brake: 181mm
- Length with brake: 215mm
Features & Applications
Supported Encoders
Absolute EncoderIncremental EncoderRotary Encoder
- Application Fields

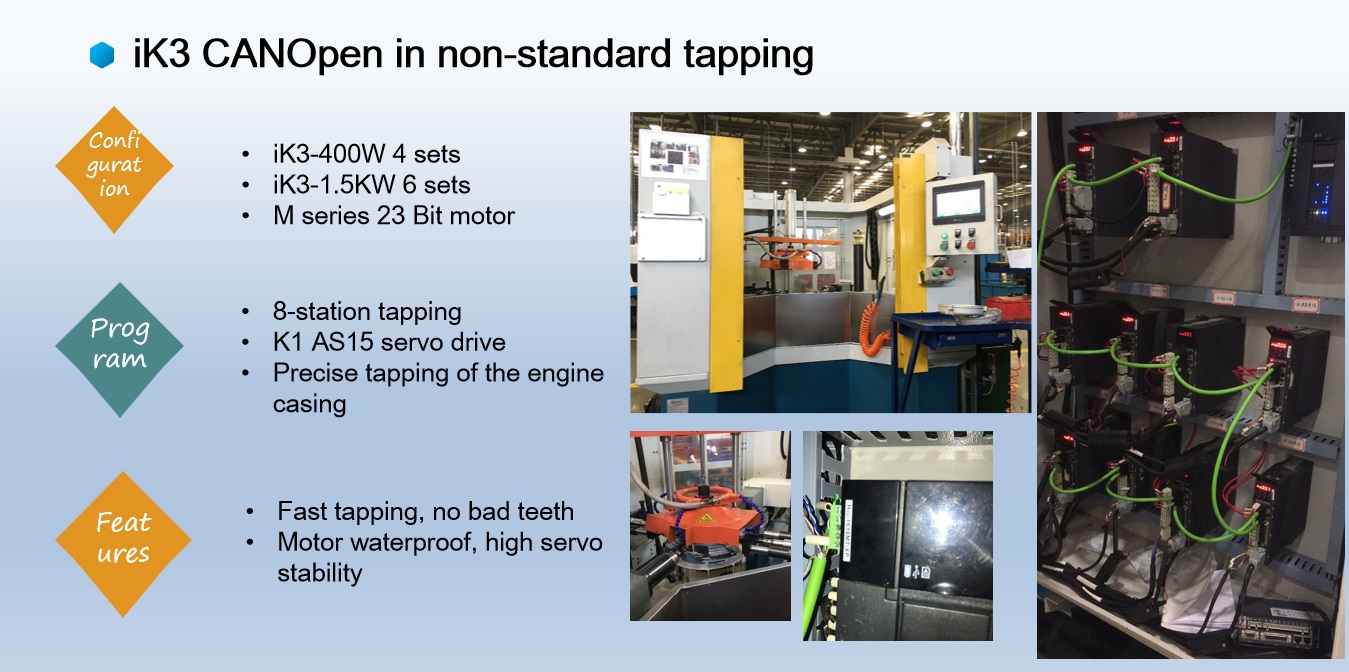

- Jointed RobotsPicking RobotsCNC MillingEngraving MachinesElectronic Equipment
