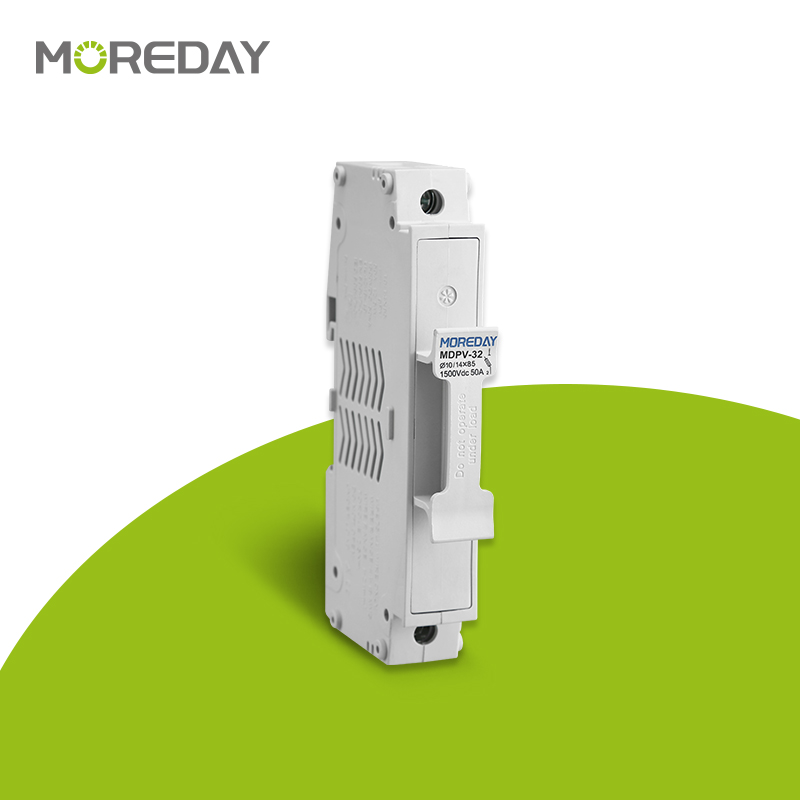

1500V DC Photovoltaic Fuse Holder
This DC 1500V fuse holder offers short circuit protection and fault prevention for photovoltaic power supply lines. It can be used with solar photovoltaic panels, and optionally in other DC circuits, for line overload and short circuit protection of electrical components.
Technical Specifications
Product Overview
Professional DC PV Protection

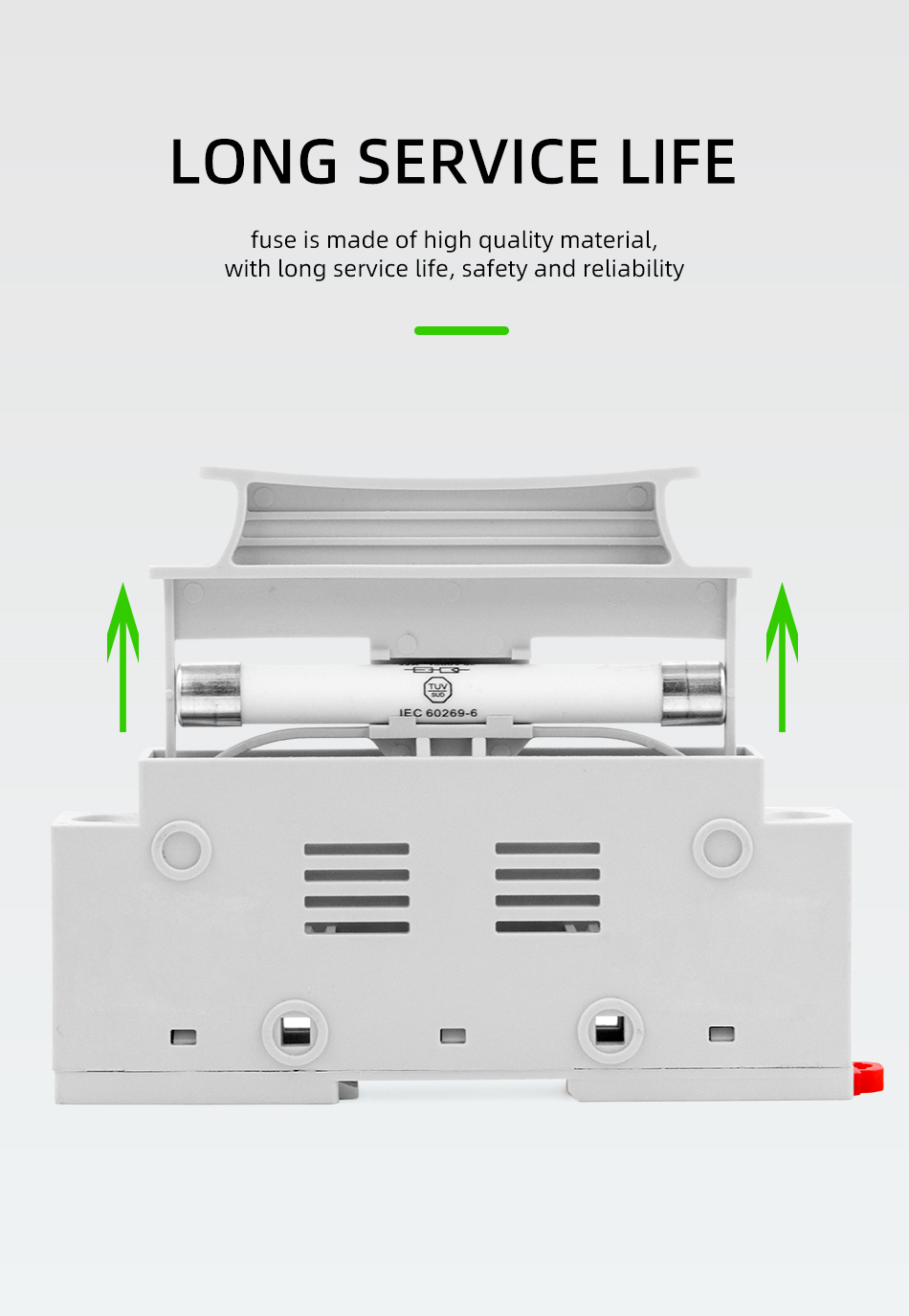

This 1500V DC photovoltaic fuse holder is engineered to provide critical overcurrent and short-circuit protection for solar power supply lines. Designed for durability and high performance, the unit features a flame-retardant enclosure and is compliant with stringent international safety standards. It ensures reliable operation in demanding photovoltaic environments while maintaining long service life.
Electrical Ratings
- Rated Voltage
- 1500 V DC
- Rated Current
- 32 A
- Power Dissipation
- 6.5 W
Compatibility and Standards
- Certifications & Standards
- TUVCEIEC 60269-6EN 60947-1EN 60947-3
- Compatible Fuse Size
- 10x85 mm
Installation and Wiring
- Wire Gauge Range
- 1-10 mm² (#6 to #18 AWG)
- Tightening Torque
- 2.0 - 2.5 Nm

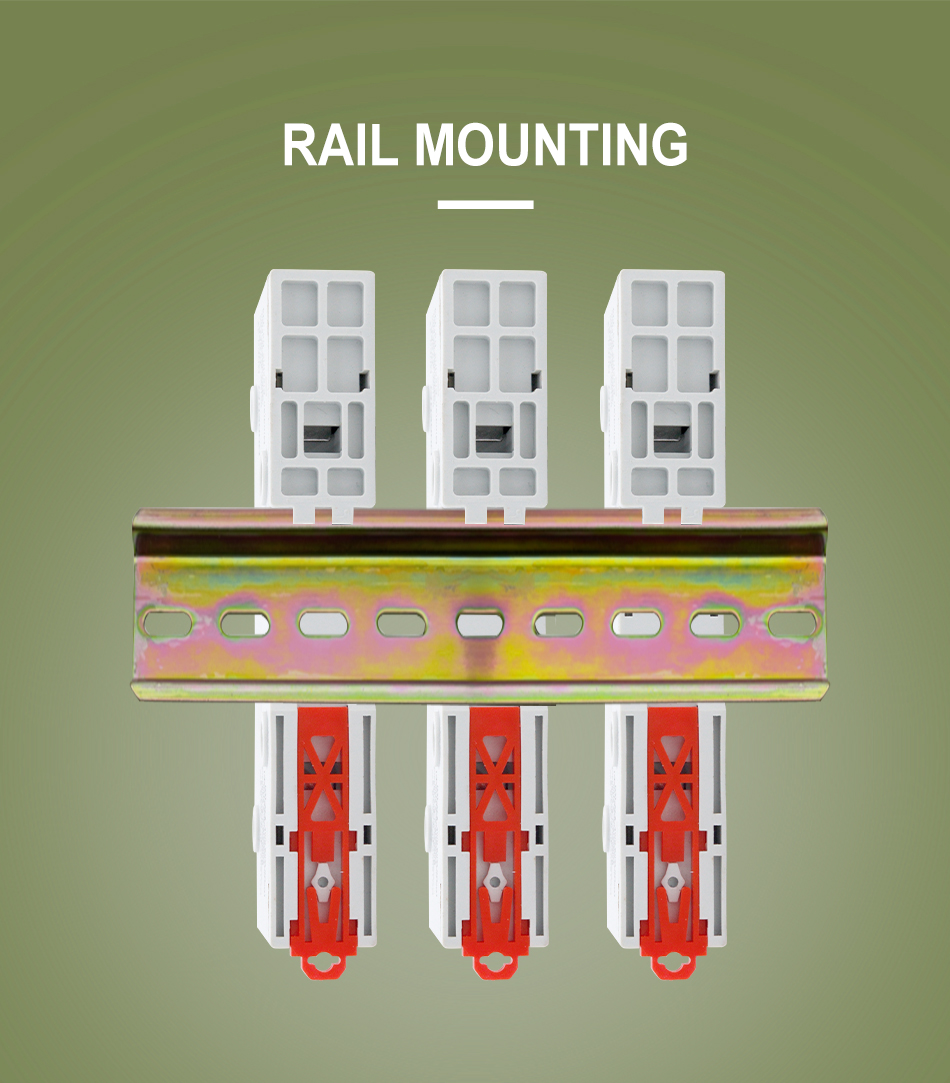

- Mounting Method
- Rail Mounting
Safety and Material
Enclosure Features
- Flame retardant
- Fireproof
- Heat resistant
- Oxidation resistant
Operational Safety
DO NOT OPEN UNDER LOAD
