1500V DC Fuse Holder for 10/14x85mm Fuses

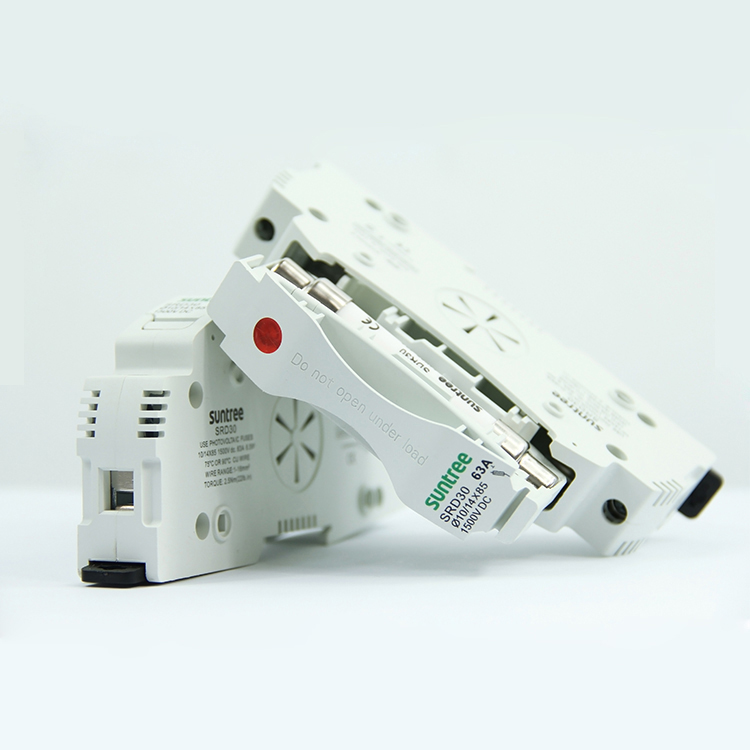

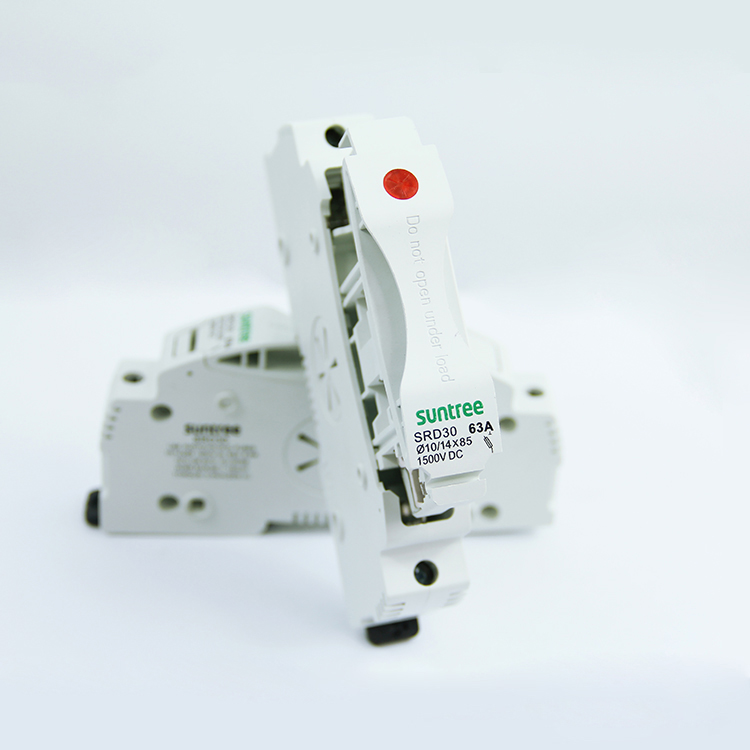

This DC fuse holder is designed for protecting DC circuits. It is rated for 1500V DC, accepts fuses with dimensions Ø10/14x85, and features a visual blown fuse indicator and a 'Do not open under load' safety warning.
Technical Specifications
Overview
Solar Photovoltaic Protection
This DC fuse holder is engineered specifically for solar photovoltaic power generation systems, providing reliable short-circuit protection for PV panels and battery arrays. Designed to handle voltages up to 1500V and currents up to 63A, it ensures safety and stability in demanding DC environments. The unit features a robust construction with high-strength porcelain and arc-extinguishing quartz sand to maintain performance under extreme conditions.
Electrical Ratings
- Rated Voltage
- 1500 V
- Rated Current
- 63 A
- Rated Breaking Capacity
- 20 kA
Compatibility
- Compatible Fuse Size
- 10/14x85mm
Environmental & Safety
Safety Features
Do not open under loadVisual blown fuse indicatorShort circuit protection
- Ambient Temperature Range
- -40°C to +90°C
Construction
Material Composition
- Pure silver fuse link
- High-strength porcelain housing
- High-purity quartz sand arc medium
Compliance
- Standards Compliance
- IEC60269.6
