1500HP Land Drilling Rig
This 1500HP land drilling rig is designed for drilling to depths of 25,000 feet and is equipped with a 160-foot derrick. It features a modular design for fast moving and utilizes automated tools for efficient operations.

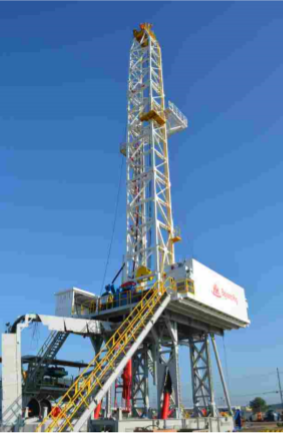

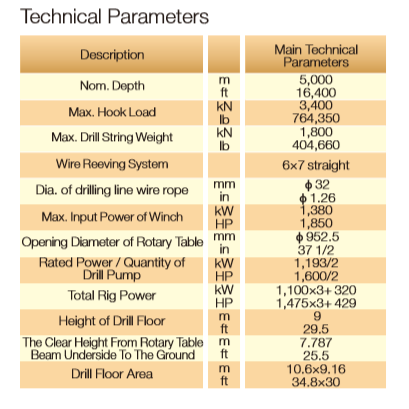

Technical Specifications
Overview
1500HP Beyond Rig Overview
The 1500HP Beyond Rig is a highly mobile and automated land drilling solution designed for efficient petroleum prospecting and cluster drilling. It features a modular design that allows for quick rig-up and fast transportation, with the entire rig requiring no more than 25 modules. Equipped with advanced hydraulic systems and automated pipe handling tools, it significantly reduces manual labor while enhancing operational safety and precision.
Performance Metrics
Drilling Capacity
5,000 m
Nominal Depth
16,400 ft
Nominal Depth
1,500 HP
Drawworks Power
Load & Structural Specs
- Maximum Hook Load
- 764350 lb
- Max Drill String Weight
- 404660 lb
- Drill Floor Height
- 29.5 ft
- Drill Floor Area
- 34.8 x 30 ft (10.6 x 9.16 m)
Power & Mechanical
- Total Rig Power
- 1,475x3 + 429 HP (1,100x3 + 320 kW)
- Max Winch Input Power
- 1850 HP
- Drill Pump Configuration
- 2 units x 1,600 HP (1,193 kW)
- Rotary Table Opening
- 37.5 in
Mobility & Rig-up
Mobility Features
- 8-direction marching type walking device (horizontal, vertical, ±45°)
- Mast and substructure raised by hydraulic cylinders
- Derrick transportable by tractor-trailer
- Modular components for self-loading truck transport
- Maximum of 25 transportation modules for the entire rig
Automation
- Automated Drilling Tools
- Hydraulic CatwalkDrill Floor Stabilizer ManipulatorPipe Racking DeviceIron RoughneckTop Drive System
Technical Details
- Wire Reeving System
- 6x7 straight
- Drilling Line Diameter
- 1.26 in
