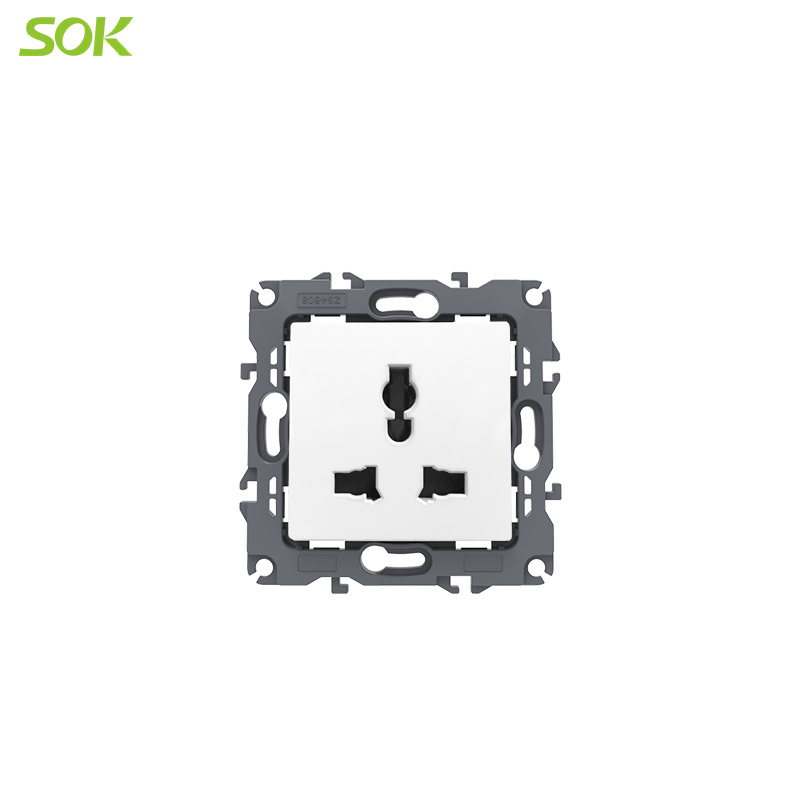

13A Universal Power Outlet
This 13A universal power outlet is designed to accommodate various plug types. It is suitable for residential, commercial, and industrial applications requiring a versatile and reliable power connection point.
Technical Specifications
Overview
Versatile S80 Series Power Solution
The S80/13W is a high-quality 13A universal power outlet designed for international compatibility and modular flexibility. Featuring a robust earthed metal frame and flame-retardant PC back housing, it ensures a safe and stable installation even on uneven walls. This complete 1-module unit is ideal for residential and commercial applications where reliable, multi-standard power connectivity is required.
Electrical Specifications
Rated Current
13 A
Rated Current
Operating Parameters
| Parameter | Value |
|---|---|
| Rated Voltage | 250V~ |
| Frequency | 50-60Hz |
| Poles Configuration | 2P + E |
| Outlet Standard | Schuko / Universal |
| Ground Lug Position | Straight 0° |
Safety & Protection
Safety Protection Systems
- Short-circuit protection
- Thermal protection
- Automatic overload protection
- Child-proof safety shutters
- Battery charge protection
- Automatic restart after ground fault
- Compliance & Certifications
- ROHSCECBTUVVDESASOGCC
Design & Materials
Construction Materials
| Component | Specification |
|---|---|
| Back-housing | Grey flame retardant PC (850°C resistant) |
| Mounting Frame | Earthed metal frame |
| Surface Finish | Glossy |
| Surface Treatment | Untreated or Painted options |
Installation
Mounting & Wiring
- Fixing mode: By screws and claws
- Terminals: Screwless terminals for fast wiring (Screw optional)

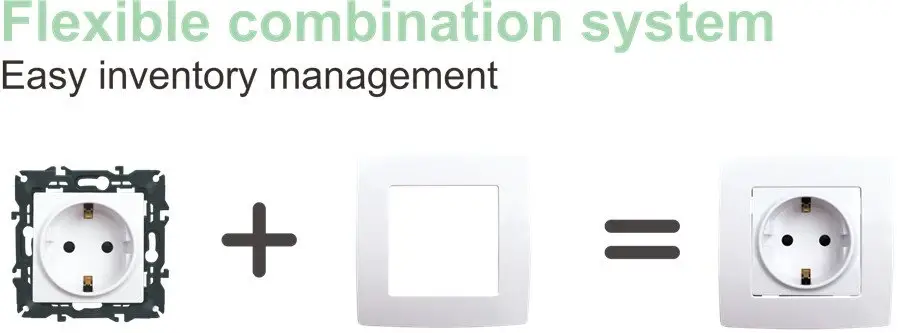

- Modular fitting design for free combination
- Notched pins on frame for perfect fit on uneven walls
- Removable hanger installation option
Physical Dimensions
| Dimension | Measurement (mm) |
|---|---|
| Width | 82 |
| Height | 82 |
| Total Depth | 42.4 |
| Projection Depth | 13.5 |
| Mounting Distance | 60 |
Environmental
Temperature Limits
| Condition | Range (°C) |
|---|---|
| Operation | -5 to 40 °C |
| Storage | -20 to 60 °C |
Customization

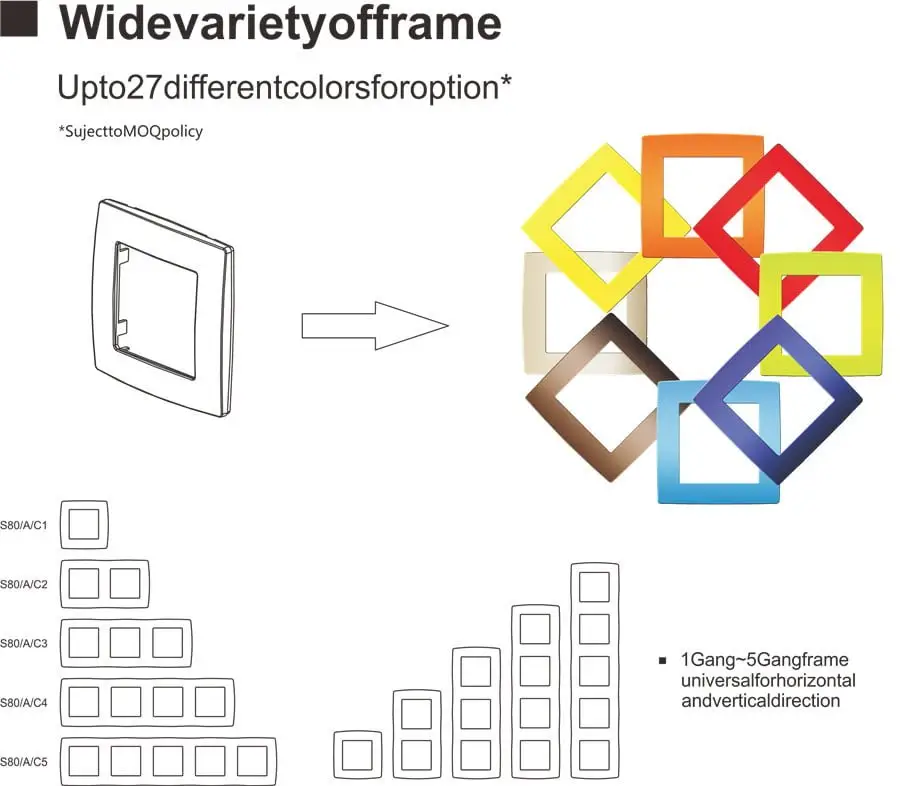

Available Finishes
WhiteBlackDark GrayCreamSilverChampagneRose Gold
