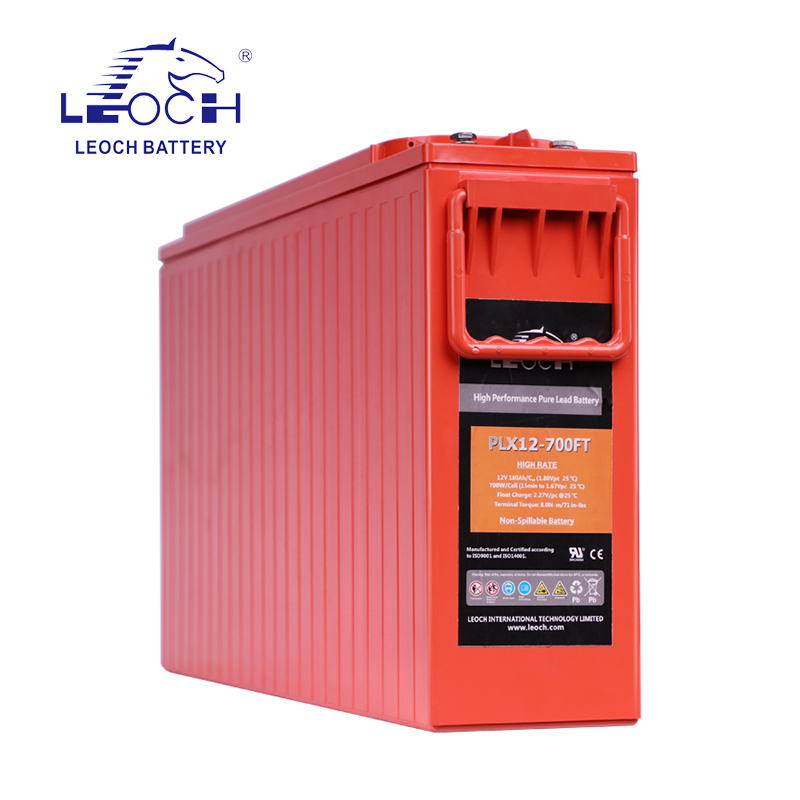

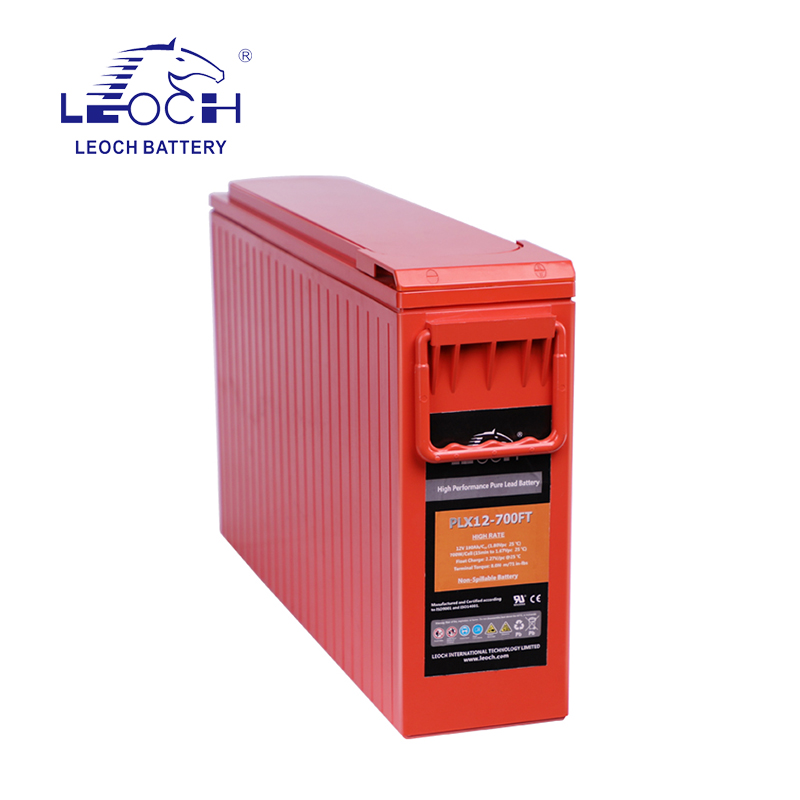

12V 700W Pure Lead Battery
This 12V pure lead battery is designed for high-rate applications. It delivers 700W/Cell and is certified to ISO9001 and ISO14001 standards.
Technical Specifications
Overview
High-Performance Pure Lead Technology
This advanced pure lead battery is engineered for high-rate discharge applications, offering exceptional power density and energy efficiency. Designed with a unique safety valve structure, it minimizes water loss while providing reliable performance in a wide temperature range. It is an ideal solution for critical power systems requiring long-term stability and high-power backup capabilities.
Technical Specifications
- Nominal Voltage
- 12 V
- Rated Capacity
- 100 Ah
- Terminal Torque
- 8 Nm
- Recommended Float Charge
- 2.27V/Cell @ 25°C
Performance Metrics
Power Output
700 W
Power per Cell
- Operating Temperature Range
- -40°C to 65°C
- Design Life
- 15 years
Features & Compliance
Construction Features
- Pure Lead TPPL Technology
- Non-spillable design
- Unique safety valve structure
- High oxygen compound efficiency
- Certifications
- ISO 9001ISO 14001CE
Applications
Typical Applications
UPS High Power BackupEmergency Power SupplyStarting Systems
