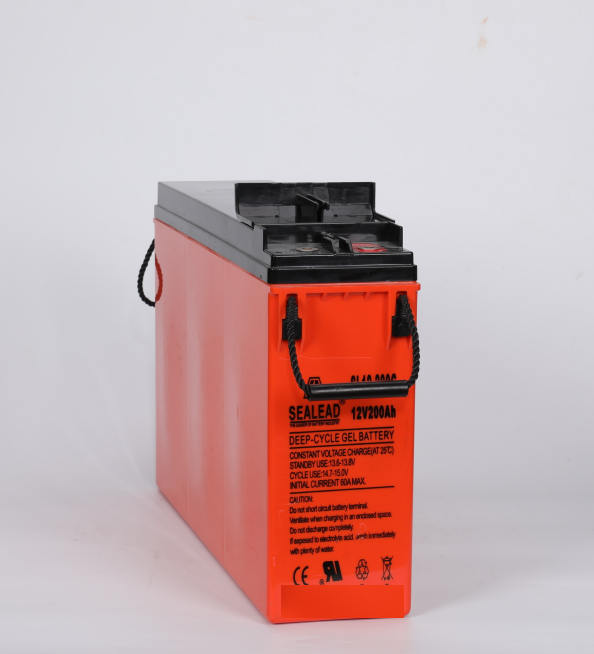

12V 200Ah Front Terminal Deep Cycle Battery
This 12V 200Ah deep cycle battery is designed with a front terminal for easy connections. It is ideal for solar energy storage and other demanding power supply needs.
Technical Specifications
Product Overview
High-Performance Deep Cycle Battery
This 12V 200Ah front terminal deep cycle battery is engineered for reliability in demanding energy storage applications, including solar systems and power supply infrastructures. It features a robust construction designed to withstand significant physical stress, including shock and impact, while maintaining consistent electrical performance. With advanced resistance to overcharging, over-discharging, and high-current demands, this battery offers a dependable solution for professional power needs.
Electrical Specifications
- Nominal Voltage
- 12 V
- Nominal Capacity
- 200 Ah
- Standby Use Voltage
- 13.6 - 13.8V
- Cycle Use Voltage
- 14.7 - 15.0V
- Max Initial Current
- 60 A
Performance Metrics
Safety Compliance
CE Certified
Durability Test Results
| Test Condition | Outcome |
|---|---|
| Shock Resistance | Stable voltage after 1hr vibration |
| Impact Resistance | No leakage after 3 drops from 20cm |
| Over-discharge Recovery | >75% capacity recovery |
| Overcharge Stability | >95% capacity retention |
- Key Performance Features
- Shock-proofImpact-proofOver-discharge resistantOvercharge resistantHigh-current resistantLeak-proof
