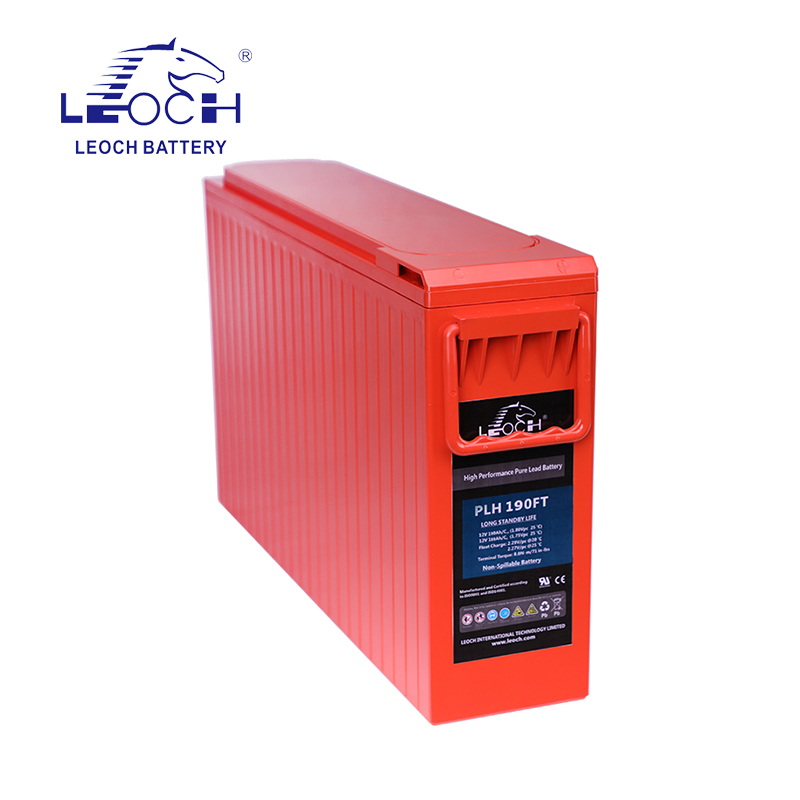

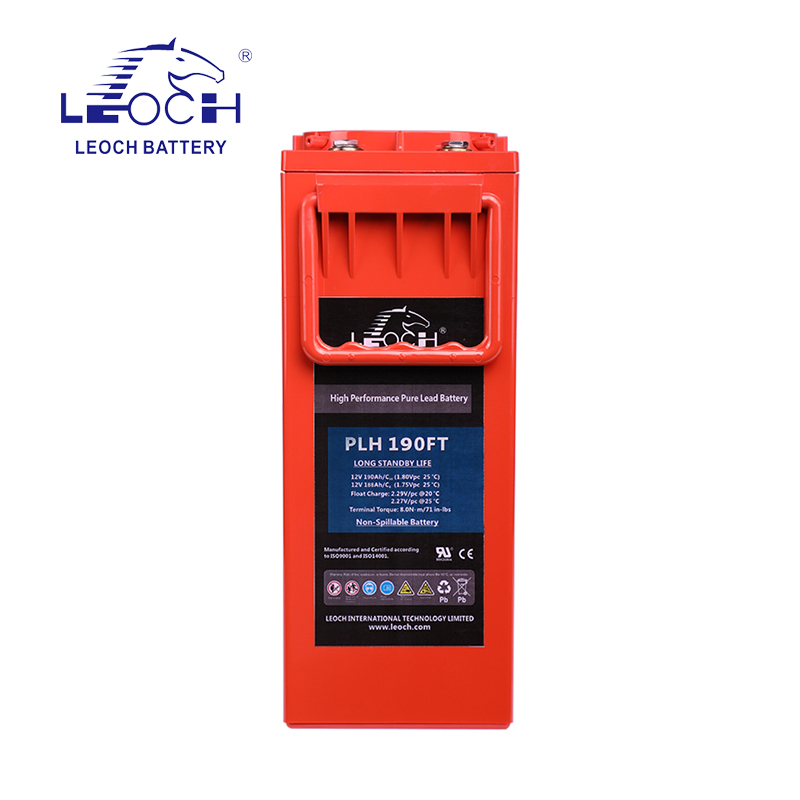

12V 190Ah Pure Lead Battery
This high-performance pure lead battery is designed for long standby life. The non-spillable battery provides reliable power storage and is suitable for applications needing a dependable and maintenance-free power source.
Technical Specifications
Product Overview
High-Performance Pure Lead Battery
This 12V 190Ah pure lead battery utilizes advanced TPPL technology to deliver exceptional performance and reliability. Engineered for long-term standby applications, it features a 20-year design life and operates efficiently across a wide temperature range of -40°C to 65°C. With a unique safety valve structure ensuring high oxygen recombination efficiency, this maintenance-free, non-spillable battery provides a robust power solution for critical backup systems.
Technical Specifications
Key Performance Metrics
12 V
Voltage
190 Ah
Capacity (1.80Vpc)
20 years
Design Life
Charging Parameters
| Parameter | Value |
|---|---|
| Float Charge (20°C) | 2.29V/pc |
| Float Charge (25°C) | 2.27V/pc |
| Terminal Torque | 8.0Nm / 71 in-lbs |
Operational Features
- Pure lead TPPL technology
- High specific power and energy
- Unique safety valve structure
- Low self-discharge (2 years shelf life at 20°C)
Compliance & Environment
- Certifications & Standards
- ISO 9001ISO 14001CE
- Environmental Range
- -40°C to 65°C
Applications
Recommended Applications
TelecommunicationsUPSEmergency BackupAlarm SystemsRailway Signal
